Öhlins Motorsport Damper Formula Student TTX25 MkII GTTX25

FITMENT
Formula Student / FSAE universal application
Motorsport product, not for use on public roads

PRODUCT INFORMATION

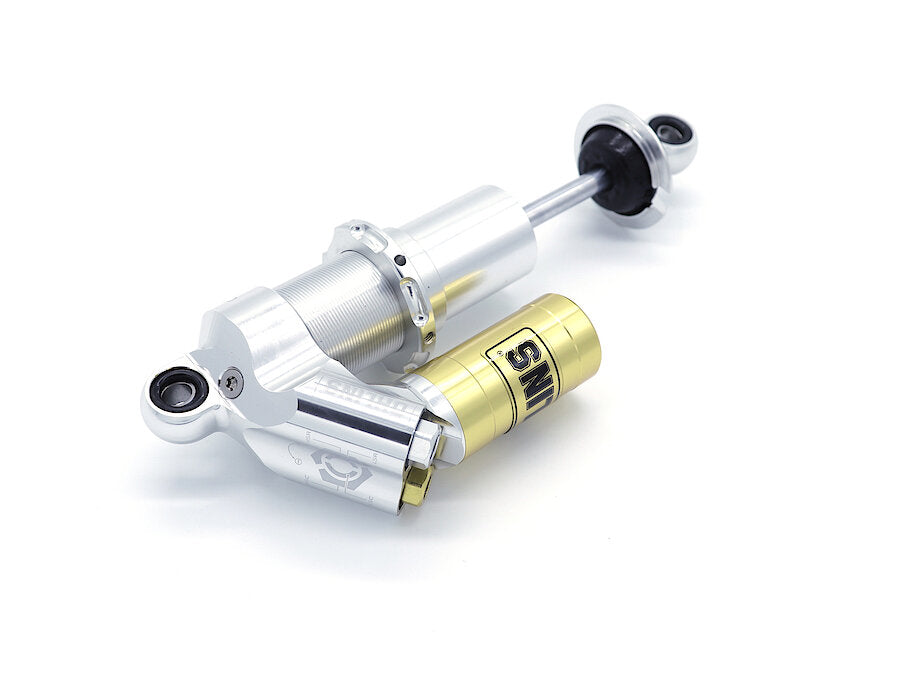

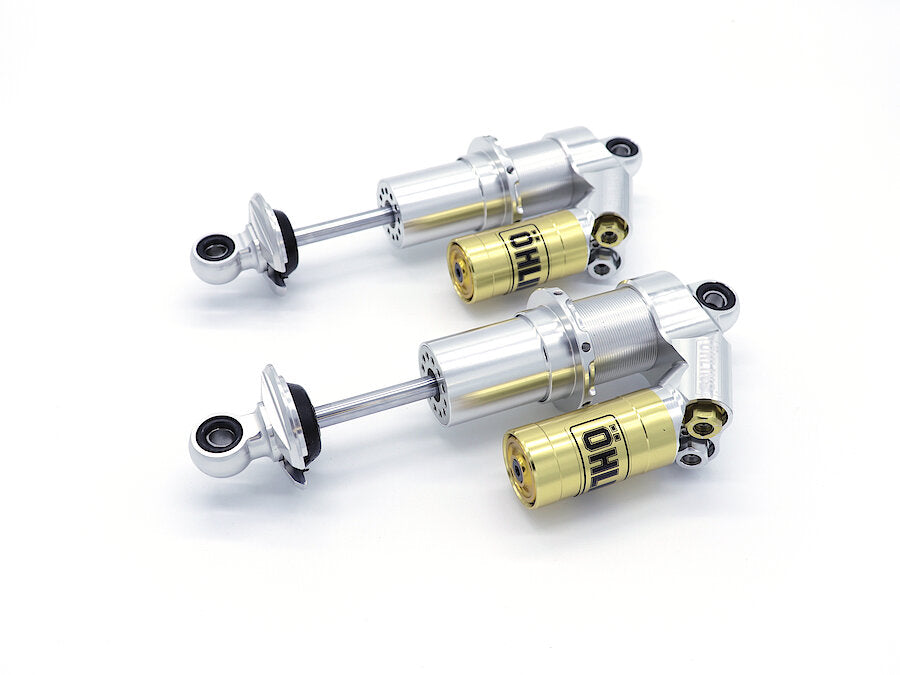

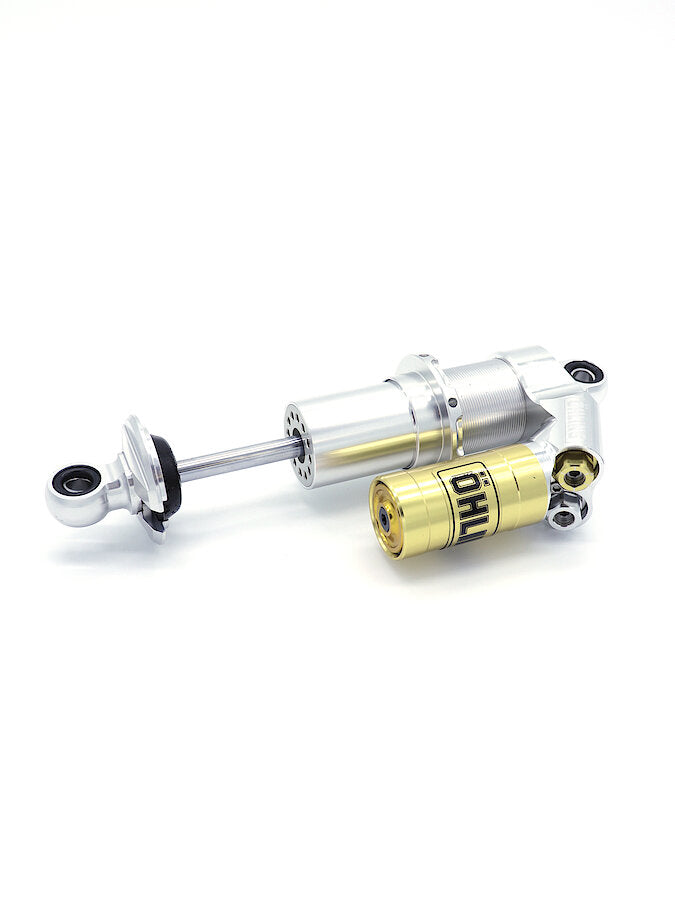

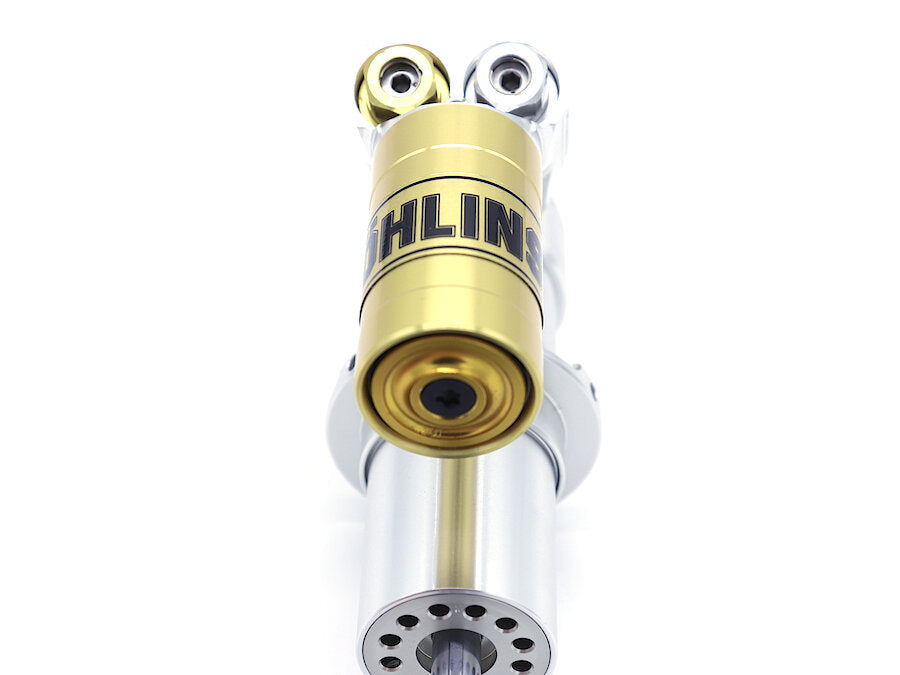

The Öhlins TTX25 MkII FSAE is a compact Formula Student shock absorber using Öhlins Twin-Tube Technology (TTX). The damper is 4-way externally adjustable, completely rebuildable and designed for setting changes, dyno data and technical support around Formula Student racing applications.

FEATURES
Öhlins race-proven Twin-Tube Technology (TTX)
External gas reservoir
High- and low-speed compression adjustment
High- and low-speed rebound adjustment
4-way externally adjustable
Lockable spring preload adjuster
Full aluminium body
Serviceable and rebuildable
Easy setting changes
Delivery without spring

TECHNICAL SPECIFICATIONS
Length: 200 mm
Stroke: 57 mm
Solid piston: 25 mm
Shaft: 8 mm
Weight: 394 g without spring
Spherical bearings
Designed for 36 mm ID springs

SPHERICAL BEARINGS
Inner diameter: 8 mm
Width: 8 mm
Outer diameter: 15 mm

AVAILABLE SPRINGS
Springs are sold separately and can be ordered here: Öhlins Formula Student Spring ID36, L67 - 18077-XX.

18077-01 - 44 N/mm (251 lb/in), length 67 mm
18077-02 - 48 N/mm (274 lb/in), length 67 mm
18077-03 - 52 N/mm (297 lb/in), length 67 mm
18077-04 - 56 N/mm (320 lb/in), length 67 mm
18077-05 - 60 N/mm (343 lb/in), length 67 mm
18077-06 - 64 N/mm (365 lb/in), length 67 mm
18077-07 - 68 N/mm (388 lb/in), length 67 mm
18077-08 - 72 N/mm (411 lb/in), length 67 mm
18077-09 - 76 N/mm (434 lb/in), length 67 mm
18077-10 - 80 N/mm (457 lb/in), length 67 mm
18077-11 - 84 N/mm (480 lb/in), length 67 mm
18077-12 - 88 N/mm (502 lb/in), length 67 mm
18077-13 - 92 N/mm (525 lb/in), length 67 mm
18077-14 - 96 N/mm (548 lb/in), length 67 mm
18077-15 - 100 N/mm (571 lb/in), length 67 mm
18077-16 - 106 N/mm (605 lb/in), length 67 mm
18077-17 - 112 N/mm (640 lb/in), length 67 mm
18077-18 - 118 N/mm (674 lb/in), length 67 mm
18077-19 - 124 N/mm (708 lb/in), length 67 mm

SPARE PARTS
Rebuild kit for 4 shock absorbers: U00051-02

DOWNLOADS
Ohlins Automotive TTX25 FSAE Formula Student (1.823,63 KB)
Dyno plots Öhlins Automotive TTX25 MkII FSAE 2015 (754,62 KB)
Dyno plots Öhlins Automotive TTX25 MkII FSAE (metric) 2015- (758,81 KB)
Workshop Manual Öhlins Automotive TTX25 MkII FSAE (English) (5.491,51 KB)

PART NUMBER
GTTX25

NOTES
The picture shown by Öhlins can deviate from the product delivered.
Springs are listed above but are not included with the damper unless separately ordered.
For custom spring rates or motorsport setup advice, contact us at info@radaauto.ee.
