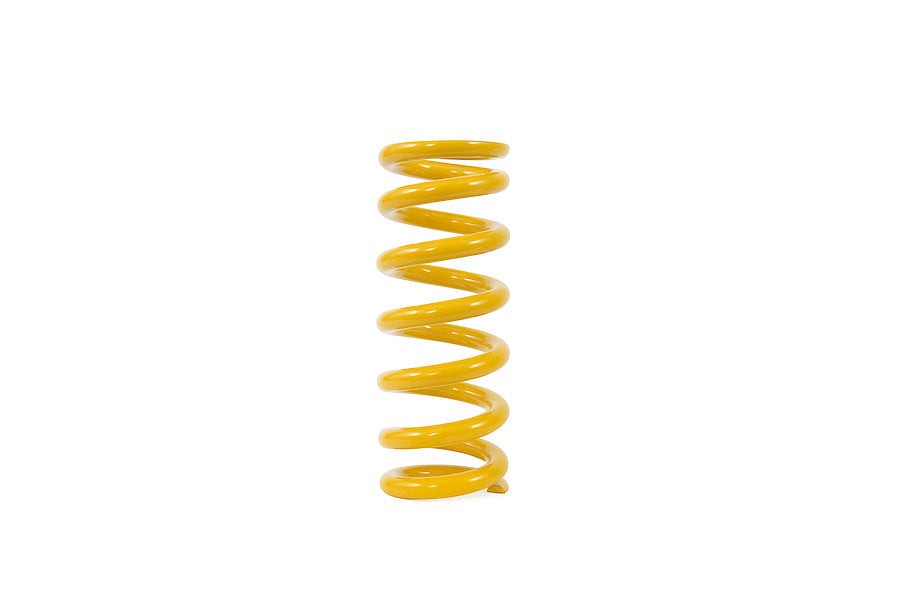

Öhlins Formula Student Spring ID36, L67 - 18077-XX

Formula Student / FSAE spring for Öhlins TTX25 MkII FSAE damper.

SPECIFICATIONS
Inner diameter: 36 mm
Length: 67 mm
Compatible damper: Öhlins TTX25 MkII FSAE / GTTX25

AVAILABLE OPTIONS
18077-01 - rate 44 N/mm (251 lb/in)
18077-02 - rate 48 N/mm (274 lb/in)
18077-03 - rate 52 N/mm (297 lb/in)
18077-04 - rate 56 N/mm (320 lb/in)
18077-05 - rate 60 N/mm (343 lb/in)
18077-06 - rate 64 N/mm (365 lb/in)
18077-07 - rate 68 N/mm (388 lb/in)
18077-08 - rate 72 N/mm (411 lb/in)
18077-09 - rate 76 N/mm (434 lb/in)
18077-10 - rate 80 N/mm (457 lb/in)
18077-11 - rate 84 N/mm (480 lb/in)
18077-12 - rate 88 N/mm (502 lb/in)
18077-13 - rate 92 N/mm (525 lb/in)
18077-14 - rate 96 N/mm (548 lb/in)
18077-15 - rate 100 N/mm (571 lb/in)
18077-16 - rate 106 N/mm (605 lb/in)
18077-17 - rate 112 N/mm (640 lb/in)
18077-18 - rate 118 N/mm (674 lb/in)
18077-19 - rate 124 N/mm (708 lb/in)

NOTES
Damper is not included. Select the spring rate required for your Formula Student setup.
