FITMENT BMW M2 (G87) 2023– BMW M2 CS (G87) 2025– BMW M3 (G80) 2WD 2020– BMW M4 (G82) 2WD 2020– This set does NOT fit the xDrive models! - for xDrive, check out the BMV GX11.
GENERAL FEATURES Race-proven Ohlins Twin-Tube technology (TTX) Separate adjustment for compression and rebound damping, i.e 4-way damping adjustment Aluminum high strength and light-weight design Top mounts specially designed by Öhlins & Millway Tested and validated for multi-compound tyres (semi-slick) Individual height adjustment Rebuildable Corrosion salt spray tested (ISO 9227) 2 year warranty

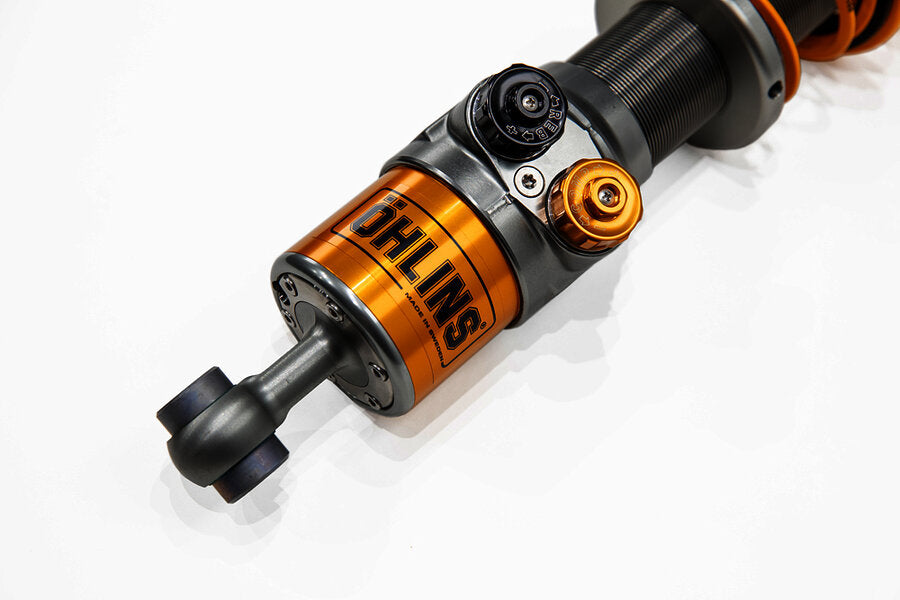

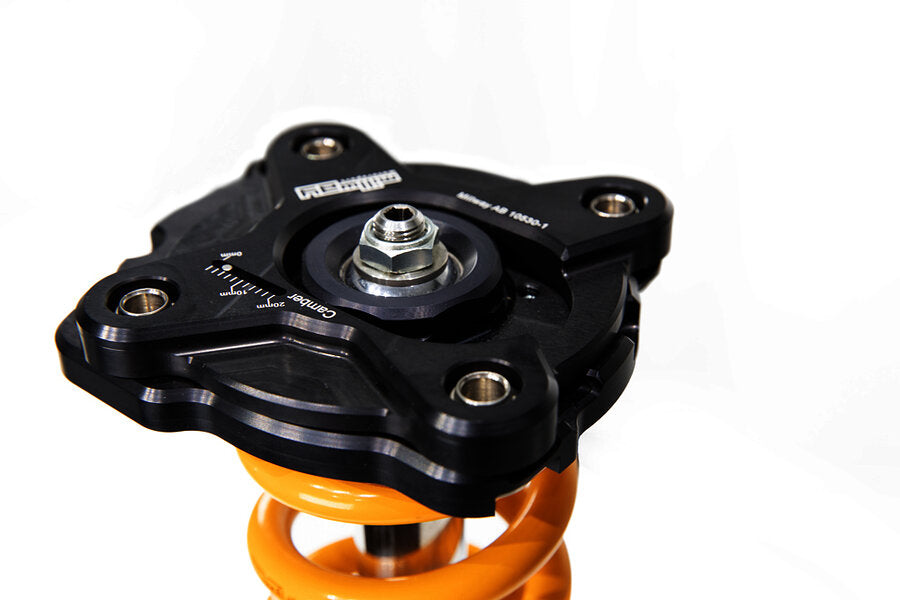

FRONT FEATURES TTX46 McPherson shock absorber with external reservoir 46 mm solid main piston Compression and rebound damping adjustment in high and low speed Spring preload adjuster Separate ride height adjustment Spring rate 160 N/mm Camber & caster adjustable aluminum uniball top mounts Drop links with spherical bearings

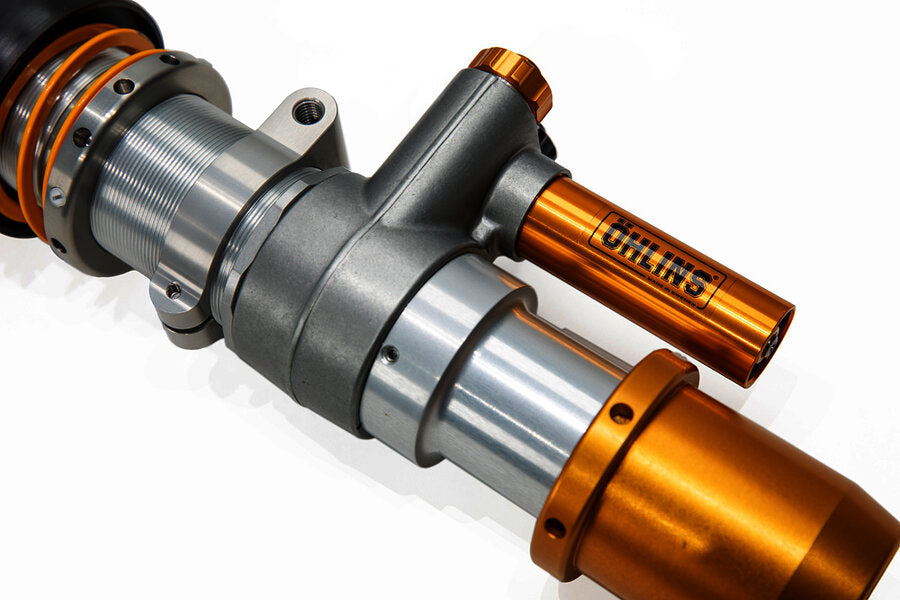

REAR FEATURES ILX36 shock absorbers with internal reservoir 36 mm solid main piston Compression and rebound damping adjustment in high and low speed Spring preload adjuster Spring rate 130 N/mm Uniball aluminum top mounts
PURCHASED PARTS PACKAGE Coilover kit including springs and mounting parts C-Spanner (for spring preload adjustment) Owners manual and mounting instructions Sticker set
ADDITIONAL NOTES To remove DTCs from BMW M2 (G87), M3 (G80), and M4 (G82) models, equipped with Electronic Damper Control (EDC), option code 2VF, Öhlins is offering EDC Cancellation kit, part nr 35020-33 (not included) and bracket kit, part nr 35021-05 (not included). For alternative spring options, please contact us.
