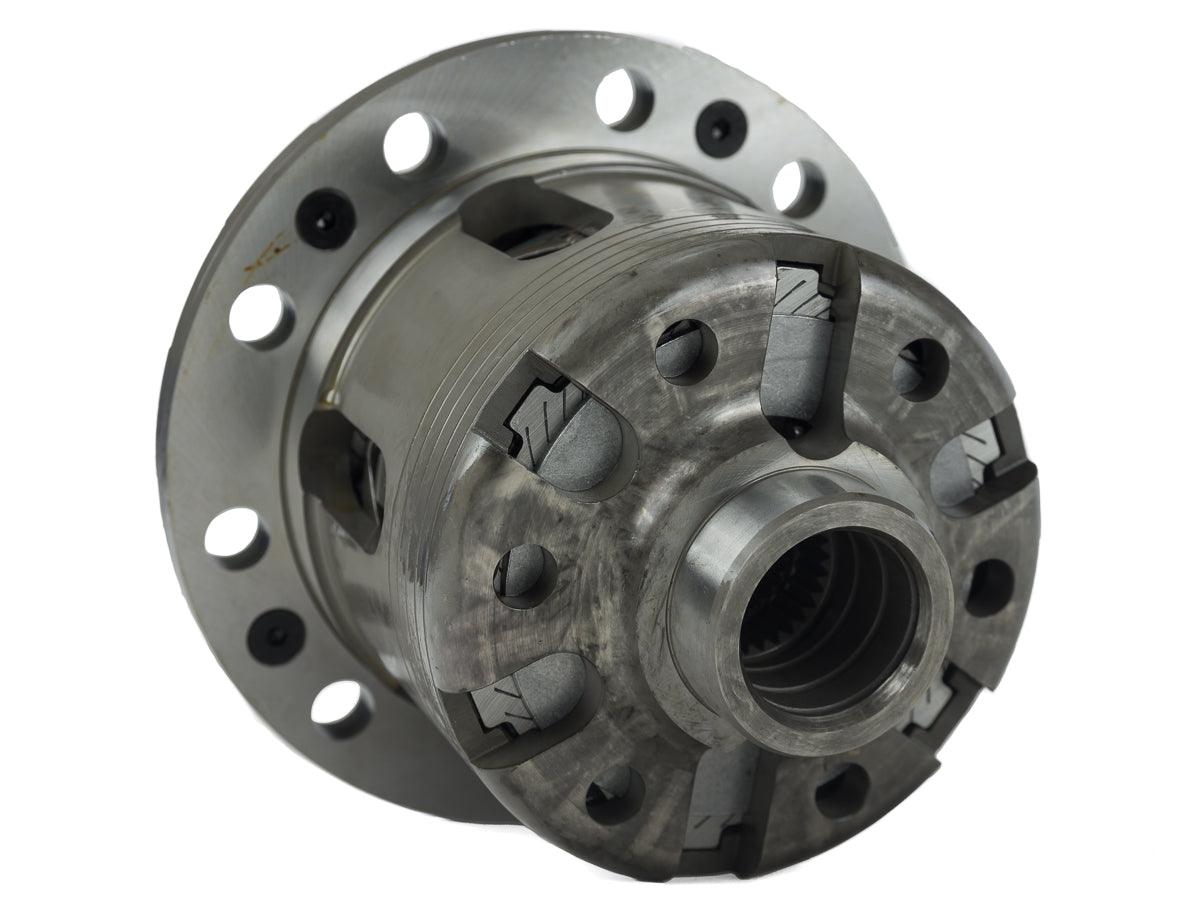

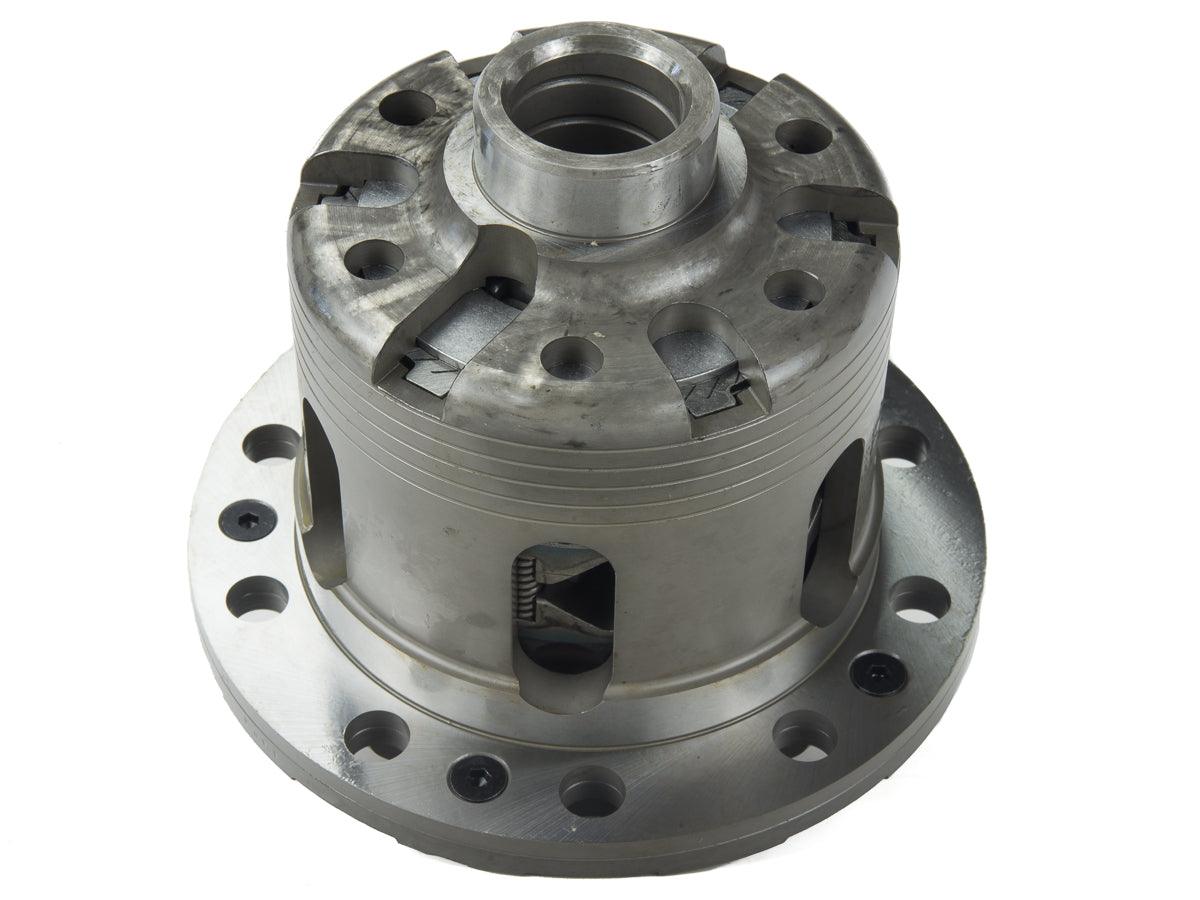

CUSCO Type-RS Front 1.5 Way LSD - Toyota Yaris GR / Corolla

LSD 1C7 V15

• 1.5-Way (35/20 (default) & 45/20 deg), B-Size
• Initial Torque: 3-5 kg
• Repair Kit #31 / SST #09

FITMENT

• TOYOTA GR Yaris (1.6L AW) 2020-2023 RZ / RC AWD
• TOYOTA GR Corolla 2023-2024 1.6L 3-Cylinder Turbo (G16E-GTS), All-Wheel-Drive

Type RS Benefits

• Low power loss means better lap times for even the mild tuned of cars.
• Chattering is kept low.
• Improved durability as clutch plates are low pressured. The LSD efficiency is higher with smoother oil flow between plates.
• Special precision springs set in the pressure plate assure steady coil movement.
• Clutch plates do not stick together like conventional cone plate type
• LSDs therefore no clutch plate wear or deterioration occurs.
• Performance remains stable thanks to the extremely durable RS springs.
• Reacts to throttle work directly.
• Transfers high power without slippage.
• No clutch slipping in 0-400 meter accelerations.(1/4 mile competition) Transfers steady power in long drifts.

Available in three configurations:

• 1 way LSD. Specially suited for front wheel drive cars and 4WD car front axles. Activates under accleration, and acts as a true LSD when the throttle is off. A great chance for improved lap times. A Cusco original design.
• 1.5 way LSD. Activates under acceleration while the understeer is less than on the 2 way LSD. Recommended for drivers having difficulty with 2 way LSD understeer and one way LSD braking.
• 2 way LSD. Recommended on the front axle for rear drive cars. Activates on both acceleration and deceleration. Recommended for those who prefer hot driving action and big angle drift.
