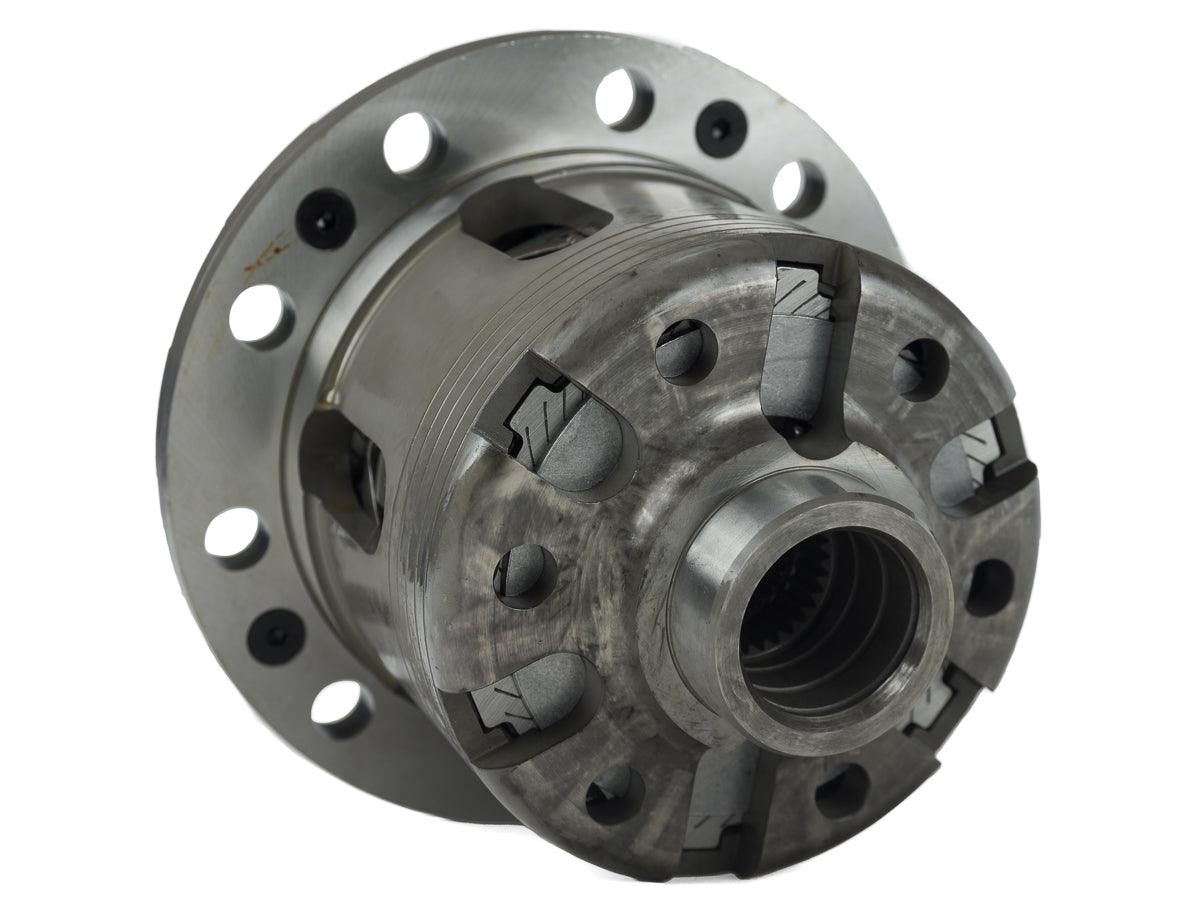

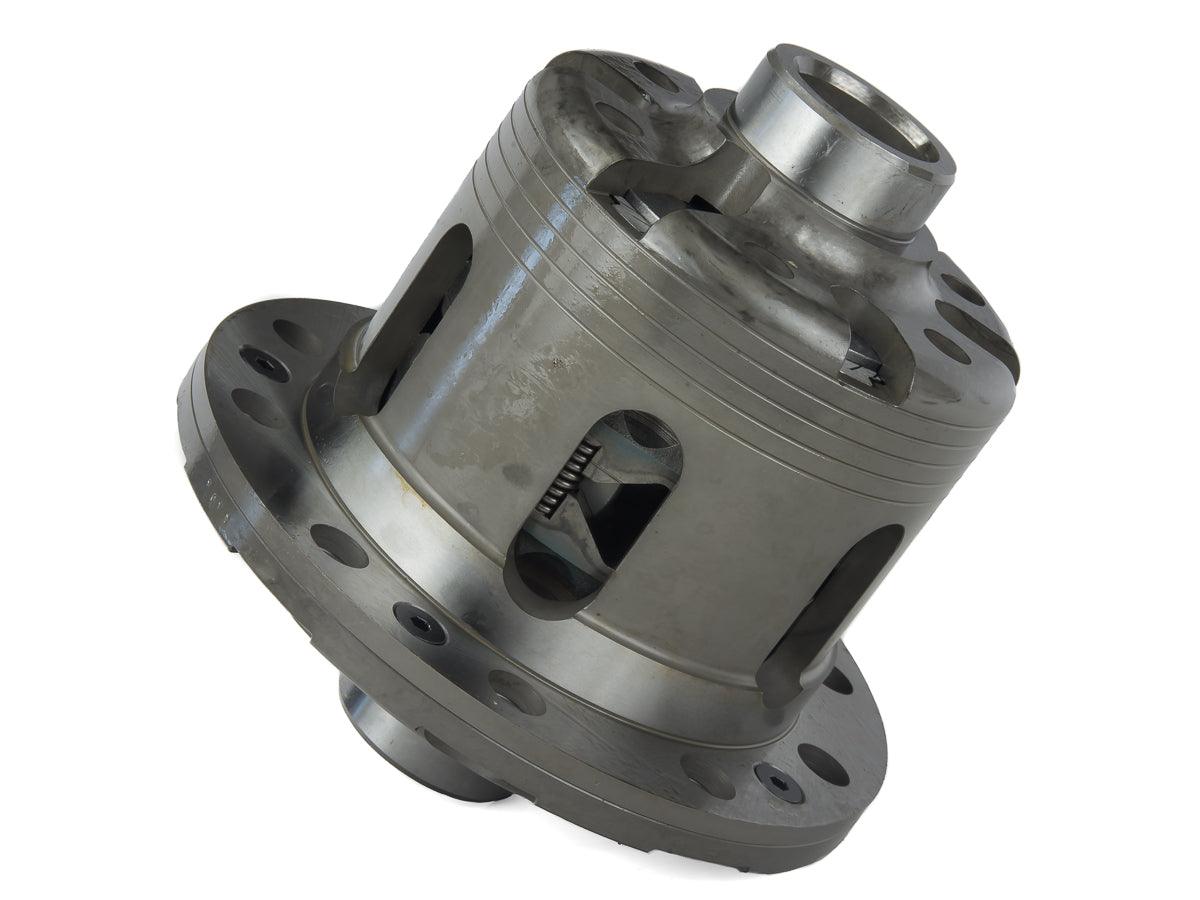

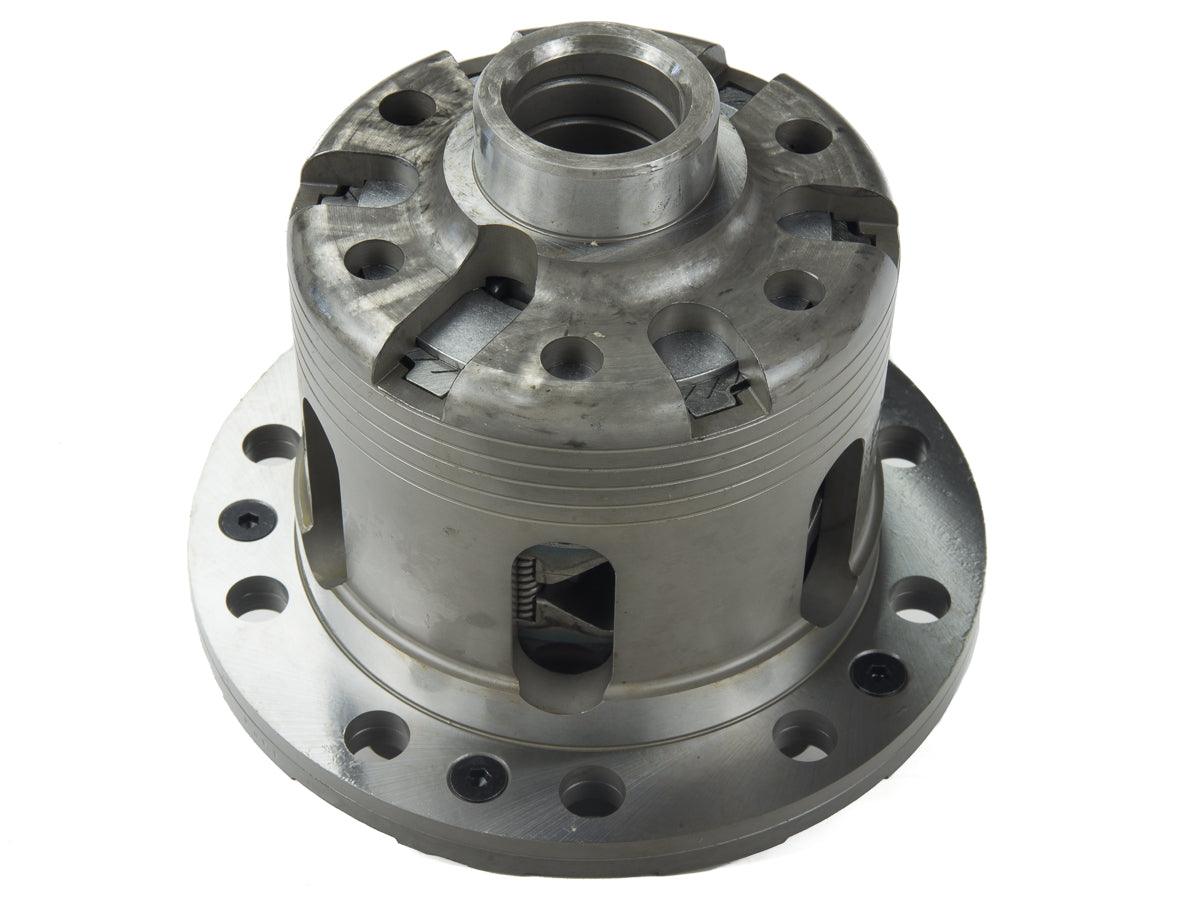

CUSCO Type-MZ Front 1.5 Way LSD - Toyota Yaris GR / Corolla

LSD-1C7-M15

• 1.5-Way (35/20 (default) & 45/20 deg), B-Size
• Initial Torque: 8-10 kg
• Repair Kit #09 / SST #09

FITMENT

• TOYOTA GR Yaris (1.6L AW) 2020-2023 RZ / RC AWD
• TOYOTA GR Corolla 2023-2024 1.6L 3-Cylinder Turbo (G16E-GTS), All-Wheel-Drive

Type MZ Benefits

• Classic cone brake spring actuation
• Opposing lock vector of initial lock cone spring vs the actuation force of the driveline
• Progressive and linear actuation with shallower rate of actuation
• Maximum simplicity and durability
• Choice of two pressure plate cam positions for tuning

Available in three configurations:

• 1 way LSD. Specially suited for front wheel drive cars and 4WD car front axles. Activates under accleration, and acts as a true LSD when the throttle is off. A great chance for improved lap times. A Cusco original design.
• 1.5 way LSD. Activates under acceleration while the understeer is less than on the 2 way LSD. Recommended for drivers having difficulty with 2 way LSD understeer and one way LSD braking.
• 2 way LSD. Recommended on the front axle for rear drive cars. Activates on both acceleration and deceleration. Recommended for those who prefer hot driving action and big angle drift.
