Xtreme Clutch Sprung Ceramic Replacement Clutch Kit Toyota GR Yaris / GR Corolla (GXPA16 / GZEA14) KTY24046-1R

Xtreme Clutch single-plate sprung ceramic clutch kit. Replacement for an existing conversion kit.

FITMENT
Toyota GR Corolla (GZEA14) January 2023 onwards — 1.6 G16E-GTS, manual.
Toyota GR Yaris (GXPA16) February 2020 onwards — 1.6 G16E-GTS, manual.
Manual-transmission applications only. Match the input-shaft spline and flywheel before ordering.

SPECIFICATIONS
Part number: KTY24046-1R
Friction material / construction: sprung ceramic
Disc diameter: 240 mm
Input spline: 23 teeth, 26 mm diameter
Supplier-rated torque capacity: 910 Nm
Flywheel step: -9.53 mm

PURCHASED PARTS PACKAGE

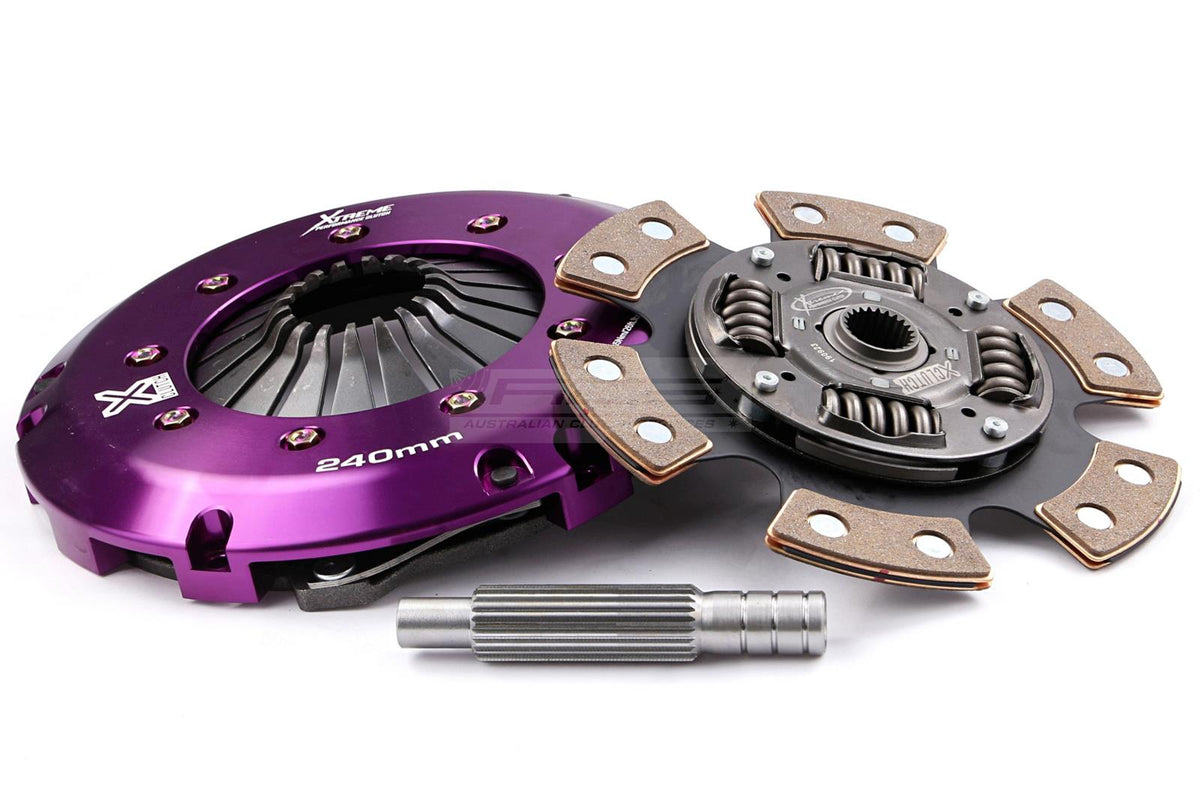

Pressure plate, sprung ceramic friction disc and supplied alignment tool. Flywheel and CSC not included.

INSTALLATION AND USE
Replacement clutch for the existing KTY24646-1R single-mass flywheel conversion kit. It does not fit the original dual-mass flywheel. The supplier description specifically names KTY24646-1R; do not assume interchangeability with other conversion kits. Follow the supplied fitting and bedding-in instructions. A clutch torque rating is not a safe torque limit for the gearbox or other drivetrain components.
