Xtreme Clutch Stage 2R Sprung Ceramic Clutch and Single-Mass Flywheel Kit Toyota GR Yaris (GXPA16) / GR Corolla (GZEA14) KTY24646-1R

Xtreme Clutch Stage 2R sprung ceramic single-mass flywheel conversion kit with concentric slave cylinder. The Stage 2R sprung ceramic specification is intended for motorsport use.

FITMENT
Toyota GR Yaris (GXPA16) February 2020 onwards — G16E-GTS, manual transmission.
Toyota GR Corolla (GZEA14) January 2023 onwards — G16E-GTS, manual transmission.

Match the exact engine, manual gearbox, input-shaft spline and flywheel arrangement before ordering. Automatic-transmission applications are excluded.

SPECIFICATIONS
Part number: KTY24646-1R
Stage: 2R
Friction material / construction: sprung ceramic
Disc diameter: 240 mm
Input spline: 23 teeth, 26 mm diameter
Supplier-rated torque capacity: 910 Nm
Flywheel step: -9.53mm

PURCHASED PARTS PACKAGE

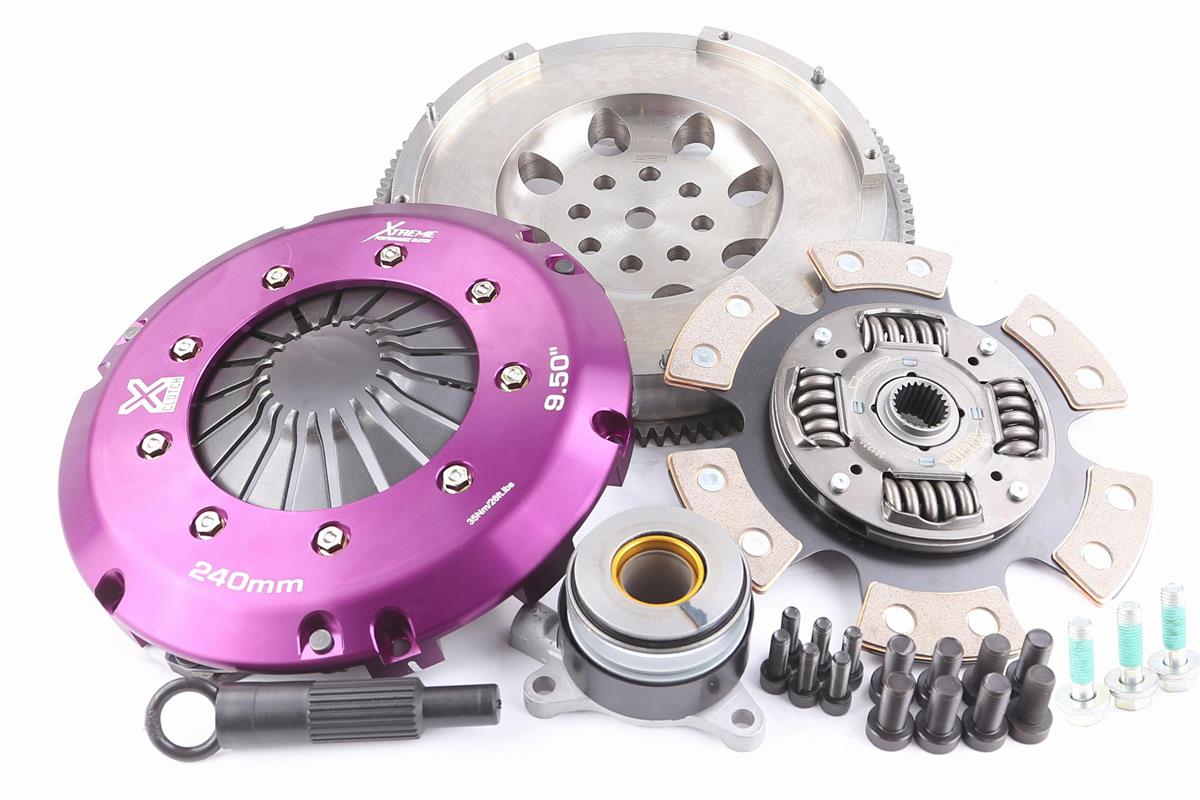

Pressure plate, friction disc, single-mass flywheel and concentric slave cylinder. Check the supplied fitting hardware against the installation instructions.

INSTALLATION AND USE
A single-mass conversion can increase gearbox rattle and transmitted engine harmonics. Follow the supplied instructions for fastening, alignment, release-system assembly and bedding in. The kit torque rating is the supplier's specification; it does not establish a safe limit for the gearbox or other drivetrain components.
