Xtreme Clutch Stage 2 Sprung Ceramic Clutch and Flywheel Kit Toyota Chaser / Cresta / Mark II / Soarer / Supra / Verossa (JZX100 / JZX90 / JZX110 / JZZ30 / JZA70) KTY24550-1B
1 122 €
968 €
/ per
Tax included.
Not in stock, available to order
Product description
Xtreme Clutch single-plate sprung ceramic clutch and flywheel kit for the Toyota Chaser / Cresta / Mark II / Soarer / Supra / Verossa. Designed for track applications requiring increased heat and torque capacity.
FITMENT Toyota Chaser (JZX100) October 1996–May 2001 — 2.5, 1JZ-GE 2491, 147 kW. Toyota Chaser (JZX100) October 1996–May 2001 — 2.5 Turbo, 1JZ-GTE 2491, 206 kW. Toyota Chaser (JZX90) October 1992–August 1996 — 2.5, 1JZ-GE 2491, 132 kW. Toyota Chaser (JZX90) October 1992–August 1996 — 2.5 Turbo, 1JZ-GTE 2491, 206 kW. Toyota Cresta (JZX100) October 1996–May 2001 — 2.5 Turbo VVTi, 1JZ-GTE 2491, 206 kW. Toyota Mark II (JZX110) January 2002–June 2007 — 2.5 Turbo, 1JZ-GTE 2491, 206 kW. Toyota Mark II (JZX110) January 2002–December 2004 — 2.5, 1JZ-FSE 2491, 147 kW. Toyota Mark II (JZX90) October 1992–September 1996 — 2.5 Turbo, 1JZ-GTE 2491, 206 kW. Toyota Mark II (JZX100) October 1996–September 2001 — 2.5 Turbo VVTi, 1JZ-GTE 2491, 206 kW. Toyota Soarer (JZZ30) September 1990–September 2000 — 2.5 Turbo, 1JZ-GTE 2491, 206 kW. Toyota Supra (JZA70) August 1990–May 1993 — 2.5 i Bi-Turbo, 1JZ-GTE 2491, 206 kW. Toyota Verossa (JZX110) October 2000–November 2003 — 2.5 Turbo VVTi, 1JZ-GTE 2491, 206 kW. Toyota Verossa (JZX110) October 2000–November 2003 — 2.5 VVTi, 1JZ-FSE 2491, 147 kW. Match the engine, chassis, gearbox input spline, flywheel and release arrangement before ordering. Automatic-transmission applications are not covered by this listing.
SPECIFICATIONS Part number: KTY24550-1B Stage: 2 Construction: single plate Friction material: sprung ceramic Disc diameter: 236 mm Input spline: 21 teeth, 29.8 mm diameter Flywheel step: +0.5 mm Supplier-rated torque capacity: 850 Nm

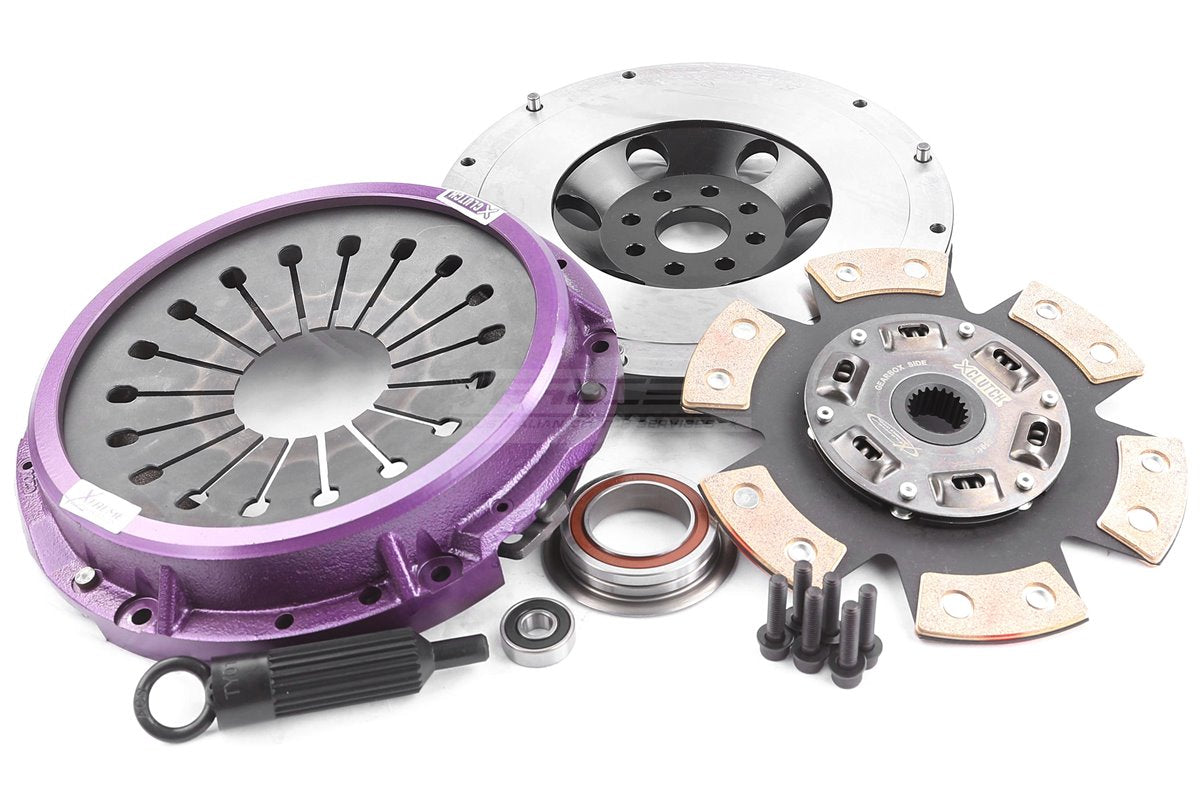

PURCHASED PARTS PACKAGE Pressure plate, friction disc, single-mass flywheel and fitting components shown in the supplier photograph.
INSTALLATION AND USE Check the flywheel condition, profile and release arrangement before installation. Install the supplied clutch and single-mass flywheel together. Follow the supplied fitting and bedding-in instructions. A ceramic friction disc can change engagement characteristics compared with a standard organic clutch. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components.
