Xtreme Clutch Stage 2 Sprung Ceramic Clutch Kit 225 mm Toyota / Holden KTY23002-1B

Xtreme Clutch Stage 2 single-plate sprung ceramic clutch kit for the listed Toyota and Holden applications. Designed for track applications requiring increased heat and torque capacity.

FITMENT
Holden Apollo (JK) August 1989–July 1991 — 2.0, 3S-FC 1998 cc, 82 kW.
Holden Apollo (JK) August 1989–August 1991 — 2.0, 3S-FE 1998 cc, 88 kW.
Holden Apollo (JL) August 1991–February 1993 — 2.0, 3S-FE 1998 cc, 88 kW.
Toyota Camry (SV20RG) November 1986–August 1989 — 1.8, 1S 1832 cc, 66 kW.
Toyota Camry (SV21) November 1986–May 1991 — 2.0, 3S-FE 1998 cc, 94 kW.
Toyota Camry (SV21) September 1989–June 1991 — 2.0, 3S-FE 1998 cc, 93 kW.
Toyota Camry (SV21) November 1986–February 1993 — 2.0, 3S-FE 1998 cc, 89 kW.
Toyota Camry (SV10) February 1983–October 1986 — 1.8, 1S-L 1832 cc, 66 kW.
Toyota Camry (CV10) October 1982–October 1986 — 1.8 Turbo-D, 1C-TL, 1C-TLC 1839 cc, 54 kW.
Toyota Camry (SV11) October 1982–October 1986 — 2.0, 2S-EL 1995 cc, 77 kW.
Toyota Camry (SV11) February 1983–December 1986 — 2.0, 2S-ELC, 2S-E 1995 cc, 73 kW.
Toyota Camry (SV11) January 1983–October 1986 — 2.0, 2S-EL 1995 cc, 78 kW.
Toyota Camry (SV11) January 1983–October 1986 — 2.0, 2S-ELC, 2S-E 1995 cc, 71 kW.
Toyota Camry (SV20) August 1986–August 1988 — 1.8, 1S-I 1832 cc, 88 kW.
Toyota Camry (SV20) November 1986–August 1989 — 1.8, 1S 1832 cc, 66 kW.
Toyota Camry (SV21) October 1986–July 1990 — 2.0, 3S-GE 1998 cc, 103 kW.
Toyota Camry (SV22 / SV21) September 1989–June 1991 — 2.0, 3S-FC 1998 cc, 82 kW.
Toyota Carina (ST162) August 1985–July 1989 — 2.0, 3S-GELU 1998 cc, 118 kW.
Toyota Carina (ST182 / ST183) September 1989–August 1991 — 2.0, 3S-FE 1998 cc, 92 kW.
Toyota Carina (ST182 / ST183) August 1991–September 1993 — 2.0, 3S-FE 1998 cc, 103 kW.
Toyota Carina (ST182 / ST183) September 1989–September 1993 — 2.0, 3S-GE 1998 cc, 121 kW.
Toyota Carina (ST170) December 1987–March 1992 — 1.8, 4S-FI 1838 cc, 77 kW.
Toyota Carina (ST171) December 1987–May 1990 — 2.0, 3S-FE 1998 cc, 89 kW. Suits vehicles manufactured until 05/1990.
Toyota Carina (ST170) December 1987–May 1990 — 2.0 GLi, 3S-FE 1998 cc, 94 kW. Suits vehicles manufactured until 05/1990.
Toyota Carina (ST171) December 1987–May 1990 — 2.0 GLI, 3S-FE 1998 cc, 89 kW. Suits vehicles manufactured until 05/1990.
Toyota Celica (ST162) January 1987–August 1989 — 2.0, 3S-FE 1998 cc, 88 kW.
Toyota Celica (ST162) January 1986–August 1989 — 2.0, 3S-GEL, 3S-GELC 1998 cc, 103 kW.
Toyota Celica (ST184) September 1989–November 1993 — 2.2, 5S-FE 2164 cc, 97 kW.
Toyota Celica (ST184) October 1989–December 1994 — 2.2, 5S-FE 2164 cc, 100 kW.
Toyota Celica (ST162) August 1987–August 1989 — 2.0 GT, 3S-GELC 1998 cc, 103 kW. Suits vehicles manufactured from 08/1987.
Toyota Celica (ST162) August 1987–August 1989 — 2.0 GT, 3S-GEL 1998 cc, 110 kW. Suits vehicles manufactured from 08/1987.
Toyota Corona (ST171) December 1987–January 1992 — 2.0, 3S-FE 1998 cc, 89 kW.
Toyota Corona (ST170) December 1987–November 1989 — 1.8, 4S-FI 1838 cc, 77 kW.
Toyota Corona (ST160) September 1984–October 1987 — 1.8, 1S-EL 1832 cc, 74 kW.
Toyota Corona (ST162) August 1986–October 1987 — 2.0 GTi, 3S-GELC 1998 cc, 103 kW.
Toyota Corona (ST171) December 1987–February 1992 — GT-R 2.0, 3S-GE 1998 cc, 121 kW.
Toyota Corona EXIV (ST182 / ST183) September 1991–September 1993 — 2.0, 3S-FE 1998 cc, 103 kW. For vehicles with non-steering four wheels
Toyota Corona EXIV (ST182) September 1989–August 1991 — 2.0, 3S-FE 1998 cc, 92 kW.
Toyota Corona EXIV (ST183) September 1989–September 1993 — 2.0, 3S-GE 1998 cc, 121 kW.
Toyota MR2 (SW20) December 1989–May 1990 — 2.0 16V, 3S-GE 1998 cc, 115 kW. Suits vehicles manufactured until 05/1990.
Toyota MR2 (SW20) December 1989–May 2000 — 2.0 16V, 3S-GE 1998 cc, 125 kW.
Toyota MR2 (SW20) December 1989–July 1999 — 2.0 16V, 3S-GE 1998 cc, 129 kW.
Manual-transmission applications only. Match the engine, chassis, gearbox input spline, flywheel and release arrangement before ordering. Production cutoffs shown above apply to the individual listed applications.

SPECIFICATIONS
Part number: KTY23002-1B
Stage: 2
Construction: single plate
Friction material: sprung ceramic
Disc diameter: 225 mm
Input spline: 20 teeth, 26.9 mm diameter
Flywheel step: +0.5 mm (0.020 inch)
Supplier-rated torque capacity: 430 Nm
Clamp load: 700 kg (45% increase over standard, as listed by the supplier)

PURCHASED PARTS PACKAGE

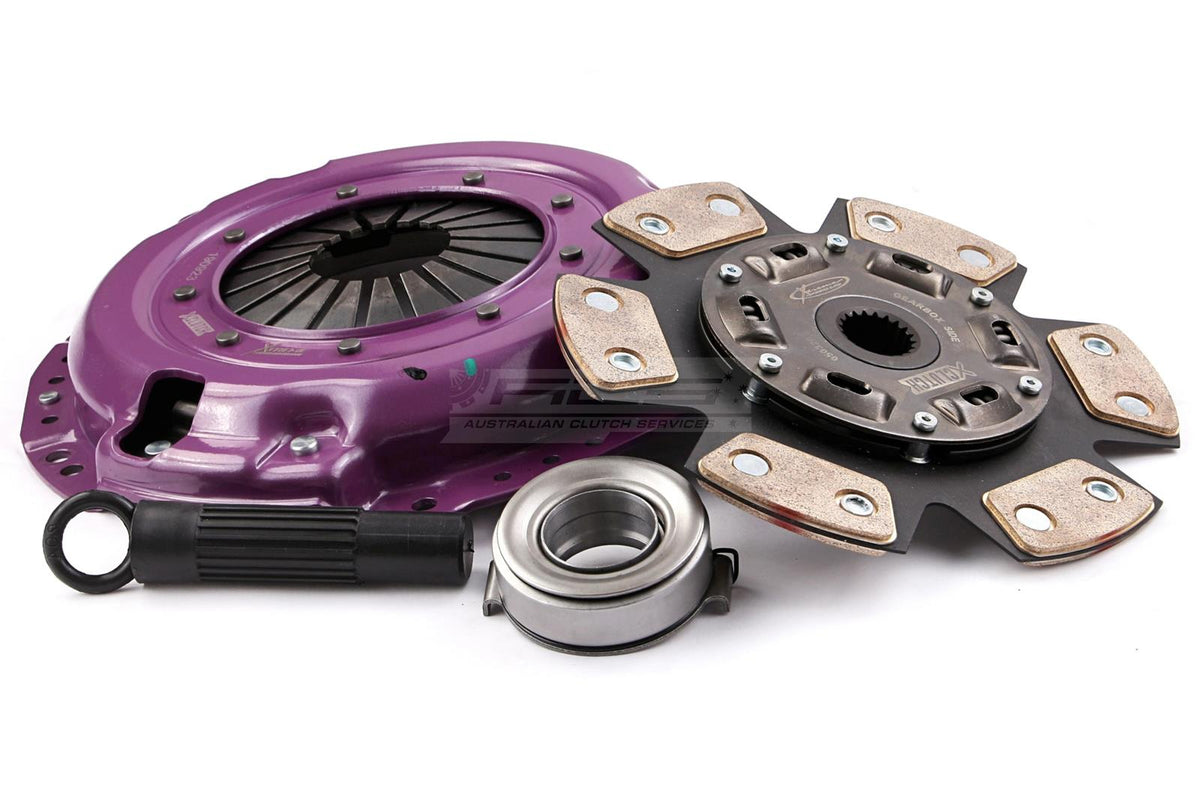

Pressure plate, friction disc and fitting components shown in the supplier photograph. Flywheel is not included.

INSTALLATION AND USE
Check the flywheel condition and profile, gearbox spline and release arrangement before installation. Follow the supplied fitting and bedding-in instructions. A ceramic disc can change engagement characteristics compared with an organic clutch. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components.
