Xtreme Clutch Stage 1 Sprung Organic Clutch Kit Toyota Town Ace (KM70 / KM75 / KR42) KTY22009-1A
369 €
318 €
/ per
Tax included.
Not in stock, available to order
Product description
Xtreme Clutch single-plate sprung organic clutch kit for the Toyota Town Ace. Designed for street-performance applications.
FITMENT Toyota Town Ace (KM70, KM75) December 1998–July 2007 — 1.8, 7K-E 1781, 60 kW. Toyota Town Ace (KR42) February 1997–January 1999 — 1.8 SBV, 7K 1781, 56 kW. Toyota Town Ace (KR42) December 1998–September 2003 — 1.8, 7K-E 1781, 60 kW. Match the engine, chassis, gearbox input spline, flywheel and release arrangement before ordering. Automatic-transmission applications are not covered by this listing.
SPECIFICATIONS Part number: KTY22009-1A Stage: 1 Construction: single plate Friction material: sprung organic Disc diameter: 215 mm Input spline: 21 teeth, 29 mm diameter Flywheel step: +0.5 mm (0.02 inch) Supplier-rated torque capacity: 260 Nm

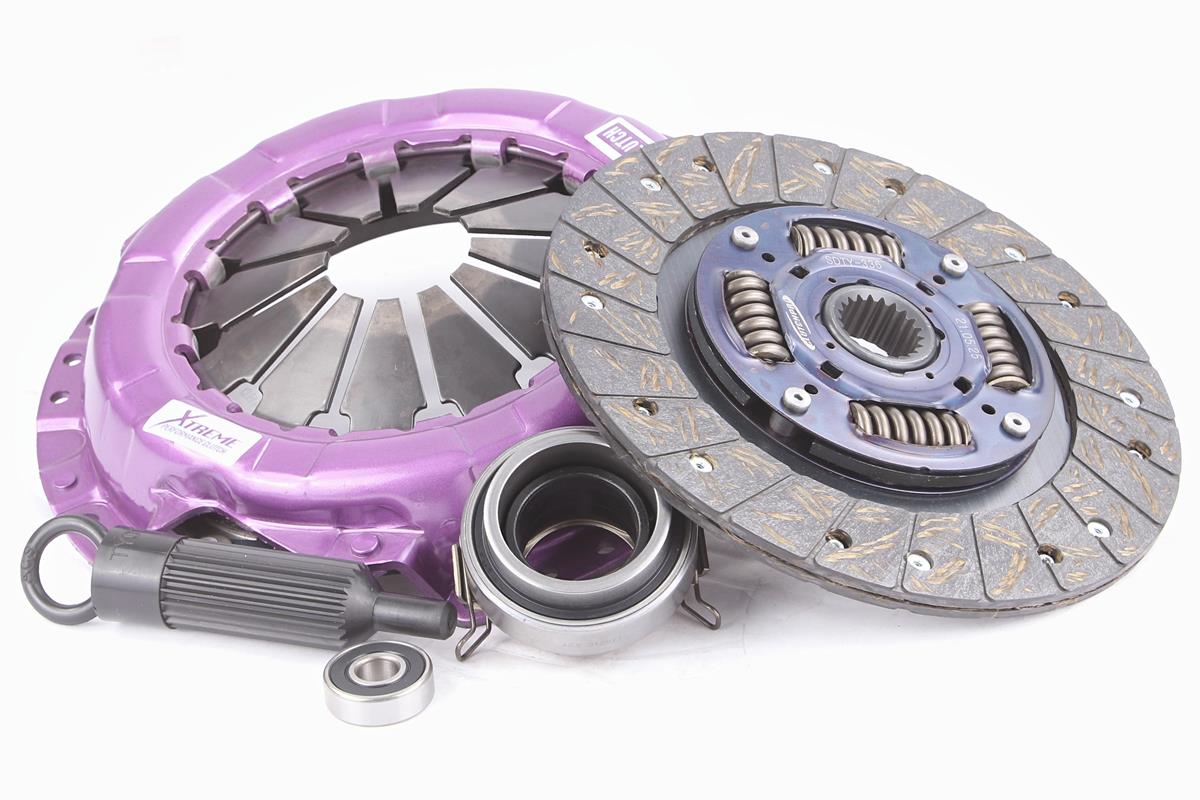

PURCHASED PARTS PACKAGE Pressure plate, friction disc and fitting components shown in the supplier photograph. Flywheel not included.
INSTALLATION AND USE Check the flywheel condition, profile and release arrangement before installation. Follow the supplied fitting and bedding-in instructions. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components.
