Xtreme Clutch 184mm Sprung Ceramic Twin Plate Clutch Kit Toyota GR Yaris / GR Corolla with Flywheel and CSC KTY18628-2B
2 485 €
/ per
Tax included.
Not in stock, available to order
Product description
Xtreme Clutch 184 mm sprung ceramic twin-plate clutch kit for the listed Toyota GR Yaris and GR Corolla manual applications. Includes a matching flywheel and concentric slave cylinder (CSC).
FITMENT Toyota GR Corolla GZEA14 1.6 turbo 4WD, from January 2023; G16E-GTS, 1618 cc petrol, 224 kW. Toyota GR Yaris GXPA16 1.6 turbo 4WD, from February 2020; G16E-GTS, 1618 cc petrol, 192 kW. Toyota GR Yaris GXPA16 1.6 turbo 4WD, from February 2020; G16E-GTS, 1618 cc petrol, 200 kW. Manual-transmission application only.
SPECIFICATIONS Part number: KTY18628-2B Construction: twin plate Friction discs: sprung ceramic Disc diameter: 184 mm (7.25-inch class) Input spline: 23 teeth, 26 mm diameter Supplier-rated torque capacity: 1220 Nm Flywheel step: +2.5 mm Included flywheel: single mass Recommended use: motorsport

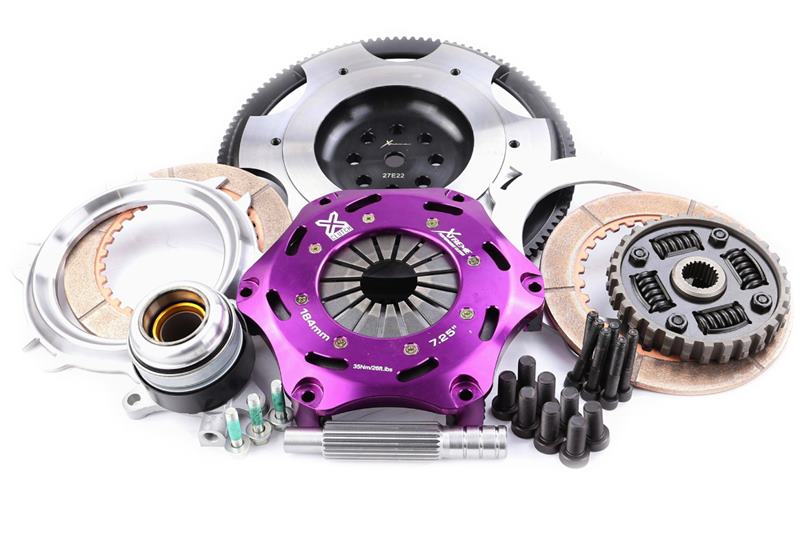

PURCHASED PARTS PACKAGE Twin-plate clutch assembly with two sprung ceramic friction discs, matching single-mass flywheel, concentric slave cylinder (CSC), bolts, alignment tool and the fitting components shown in the supplier photograph.
INSTALLATION AND USE Match the engine code, gearbox input spline, flywheel and release system before ordering. This motorsport clutch can engage more abruptly than an original road clutch. Single-mass conversion can increase transmitted engine harmonics or gearbox rattle. Follow the supplied installation and bedding-in instructions. The supplier torque rating does not establish a safe limit for other drivetrain components. Xtreme Clutch GR Yaris / Corolla upgrades.
