Xtreme Clutch single-plate sprung organic clutch kit for the Suzuki Grand Vitara 2.5 V6 4x4. Designed for street-performance applications, with a sprung hub to reduce shock loading on the transmission.
FITMENT Suzuki Grand Vitara (SQ625) April 2001–July 2003 — 2.5 V6 4x4, H25A, 116 kW. Suzuki Grand Vitara (TD62 / SQ625) April 1998–July 2003 — 2.5 V6 4x4, H25A, 106 kW. Match the engine, chassis, gearbox input spline and flywheel profile before ordering. Other engines and automatic-transmission applications are not covered by this listing.
SPECIFICATIONS Part number: KSZ23002-1A Stage: 1 Construction: single plate Friction material: sprung organic Disc diameter: 225 mm Input spline: 21 teeth, 29 mm diameter Flywheel step: +0.5 mm (0.020 inch) Supplier-rated torque capacity: 290 Nm

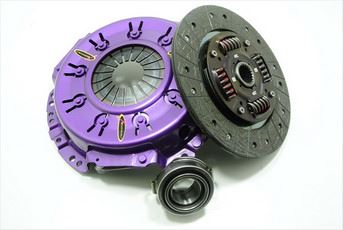

PURCHASED PARTS PACKAGE Pressure plate, sprung organic friction disc and release bearing, as shown in the supplier photograph.
INSTALLATION AND USE Check the flywheel condition, step and release arrangement before installation. Follow the supplied fitting and bedding-in instructions. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components.
