Xtreme Clutch single-plate sprung organic clutch kit for the Suzuki Swift. Designed for street-performance applications.
FITMENT Suzuki Swift (A2L414) September 2017–2019 — 1.4 Sport, K14C 1373. Match the engine, chassis, gearbox input spline, flywheel and release arrangement before ordering. Automatic-transmission applications are not covered by this listing.
SPECIFICATIONS Part number: KSZ22611-1A Stage: 1 Construction: single plate Friction material: sprung organic Disc diameter: 215 mm Input spline: 20 teeth, 22 mm diameter Flywheel step: Flat Supplier-rated torque capacity: 310 Nm

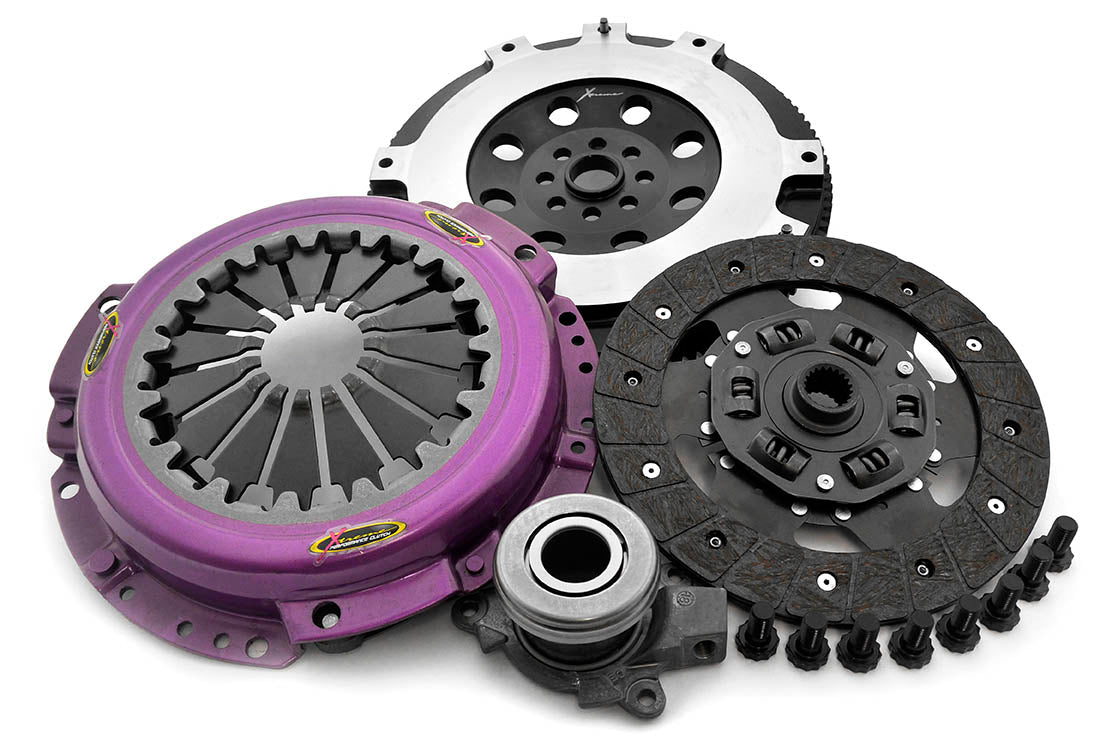

PURCHASED PARTS PACKAGE Pressure plate, friction disc, flywheel and concentric slave cylinder (CSC), with fitting components shown in the supplier photograph.
INSTALLATION AND USE Check the flywheel condition, profile and release arrangement before installation. Follow the supplied fitting and bedding-in instructions. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components.
