Xtreme Clutch single-plate sprung organic clutch kit for the Suzuki Baleno. Designed for street-performance applications.
FITMENT Suzuki Baleno (SY418) March 1996–May 2002 — 1.8 GTX, J18A 1839, 89 kW. Suzuki Baleno (SY418) August 1996–May 2002 — 1.8 i 16V, J18A 1839, 89 kW. Match the engine, chassis, gearbox input spline, flywheel and release arrangement before ordering. Automatic-transmission applications are not covered by this listing.
SPECIFICATIONS Part number: KSZ20003-1A Stage: 1 Construction: single plate Friction material: sprung organic Disc diameter: 200 mm Input spline: 20 teeth, 22.4 mm diameter Flywheel step: +0.12 mm (0.005 inch) Supplier-rated torque capacity: 200 Nm Clamp load: 520 kg (40% inc.)

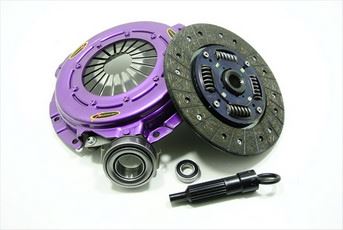

PURCHASED PARTS PACKAGE Pressure plate, friction disc and fitting components shown in the supplier photograph.
INSTALLATION AND USE Check the flywheel condition, profile and release arrangement before installation. Follow the supplied fitting and bedding-in instructions. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components.
