Xtreme Clutch Stage 2 Sprung Ceramic Clutch Kit Suzuki Ignis / Holden Cruze KSZ19017-1B

Xtreme Clutch Stage 2 sprung ceramic clutch kit for the listed Suzuki Ignis / Holden Cruze applications. Intended for motorsport applications requiring increased torque and heat capacity.

FITMENT
Holden Cruze YG / 1.5i AWD, August 2002–June 2006; engine M15A 1490 cc, 73 kW
Suzuki Ignis FH / 1.3 (HV51. HX51. RG413), October 2000–September 2003; engine M13A 1328 cc, 61 kW
Manual-transmission applications only.

SPECIFICATIONS
Part number: KSZ19017-1B
Stage: 2
Construction: single plate
Friction disc: sprung ceramic
Disc diameter: 190 mm
Input spline: 18 teeth, 20.1 mm diameter
Supplier-rated torque capacity: 250 Nm

PURCHASED PARTS PACKAGE

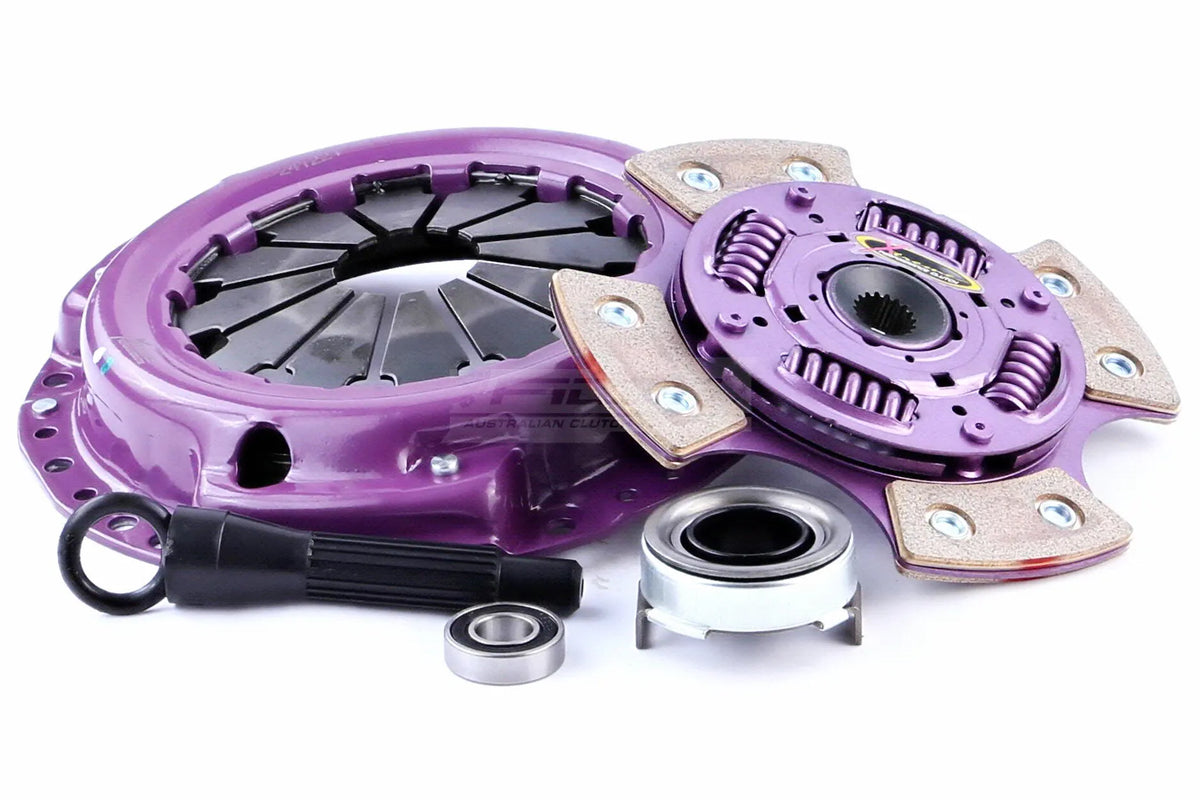

Heavy-duty pressure plate, sprung ceramic friction disc and the fitting components shown in the supplier photograph. Flywheel is not included.

INSTALLATION AND USE
Match the engine code, gearbox input spline, flywheel and release system before ordering. Follow the supplied installation and bedding-in instructions. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components.
