Xtreme Clutch 184mm Sprung Ceramic Twin Plate Clutch Kit Suzuki Swift Sport 1.6 with Flywheel KSZ18520-2B
2 108 €
/ per
Tax included.
Not in stock, available to order
Product description
Xtreme Clutch 184 mm sprung ceramic twin plate clutch kit for the listed Suzuki Swift Sport 1.6 application. Includes a matching flywheel.
FITMENT Suzuki Swift Sport 1.6 (RS 416 / RR 416), May 2006–2011; M16A, 1586 cc petrol, 92 kW. Manual-transmission application only.
SPECIFICATIONS Part number: KSZ18520-2B Construction: twin plate Friction discs: sprung ceramic Disc diameter: 184 mm Input spline: 20 teeth, 22 mm diameter Supplier-rated torque capacity: 1220 Nm Supplier recommended use: track / motorsport Flywheel step: +2.5 mm

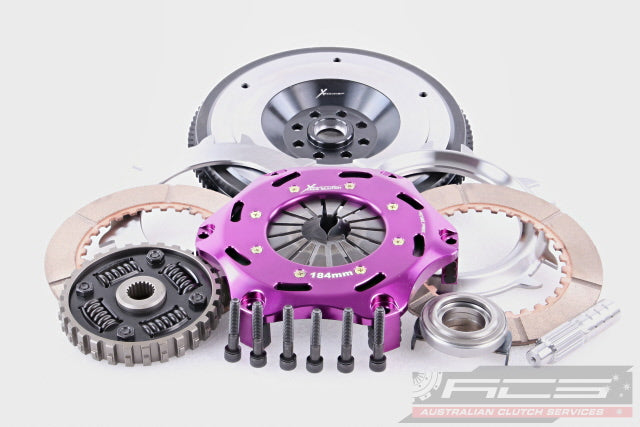

PURCHASED PARTS PACKAGE Twin-plate clutch assembly with two sprung ceramic friction discs, matching flywheel, release bearing and the fitting components shown in the supplier photograph.
INSTALLATION AND USE Match the engine code, gearbox input spline, flywheel and release system before ordering. Ceramic friction material is intended for performance use and can engage more abruptly than an original organic clutch. Follow the supplied installation and bedding-in instructions. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components.
