Xtreme Clutch single-plate cushioned ceramic clutch kit for the Subaru BRZ / Toyota GT86 / GR86. Designed for track applications requiring increased heat and torque capacity.
FITMENT Subaru BRZ (ZC6) June 2012 onwards — 2.0, FA20D 1998, 147 kW. Subaru BRZ (ZC6) August 2016 onwards — 2.0, FA20C 1998, 152 kW. Subaru BRZ (ZD8) October 2021 onwards — 2.4, FA24C, FA24D 2387, 174 kW. Toyota GR86 (ZN8) May 2022 onwards — 2.4, FA24C, FA24D 2387. Toyota GT86 (ZN6AC_ / ZN6BC_) March 2012 onwards — 2.0, FA20, FA20D, 4U-GSE 1998, 147 kW. Toyota GT86 (ZN6EY_) August 2016 onwards — 2.0, FA20D, 4U-GSE 1998, 152 kW. Match the engine, chassis, gearbox input spline, flywheel and release arrangement before ordering. Automatic-transmission applications are not covered by this listing.
SPECIFICATIONS Part number: KSU23512-1C Stage: 2 Construction: single plate Friction material: cushioned ceramic Disc diameter: 230 mm Input spline: 24 teeth, 25.2 mm diameter Flywheel step: -2.0 mm Supplier-rated torque capacity: 540 Nm

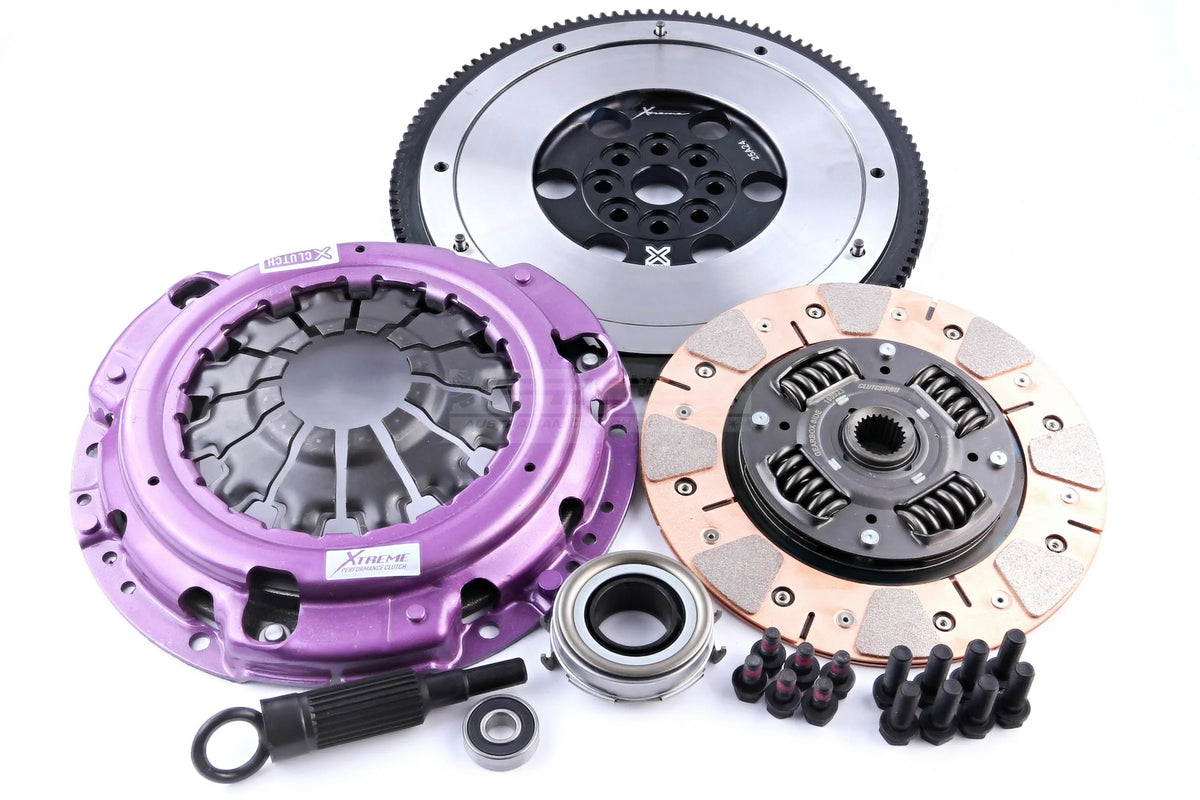

PURCHASED PARTS PACKAGE Pressure plate, friction disc, single-mass flywheel and fitting components shown in the supplier photograph.
INSTALLATION AND USE Install the supplied clutch and single-mass flywheel together. Check the gearbox input spline and release arrangement before installation. Follow the supplied fitting and bedding-in instructions. A ceramic friction disc can change engagement characteristics compared with a standard organic clutch. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components.
