Xtreme Clutch single-plate cushioned ceramic clutch kit. Intended for motorsport applications requiring increased heat and torque capacity.
FITMENT Subaru BRZ (ZC6) June 2012 onwards — 2.0, FA20D 1998, manual. Subaru BRZ (ZC6) August 2016 onwards — 2.0, FA20C 1998, manual. Subaru BRZ (ZD8) October 2021 onwards — 2.4, FA24C, FA24D 2387, manual. Toyota GR86 (ZN8) May 2022 onwards — 2.4, FA24C, FA24D 2387, manual. Toyota GT86 (ZN6) March 2012 onwards — 2.0, FA20, FA20D, 4U-GSE 1998, manual. Toyota GT86 (ZN6) August 2016 onwards — 2.0, FA20D, 4U-GSE 1998, manual. Manual-transmission applications only. Match the exact engine, input spline, flywheel profile and release arrangement before ordering.
SPECIFICATIONS Part number: KSU23012-1CX Friction material / construction: cushioned ceramic Disc diameter: 230 mm Input spline: 24 teeth, 25.2 mm diameter Supplier-rated torque capacity: 690 Nm Flywheel step: -2.0 mm

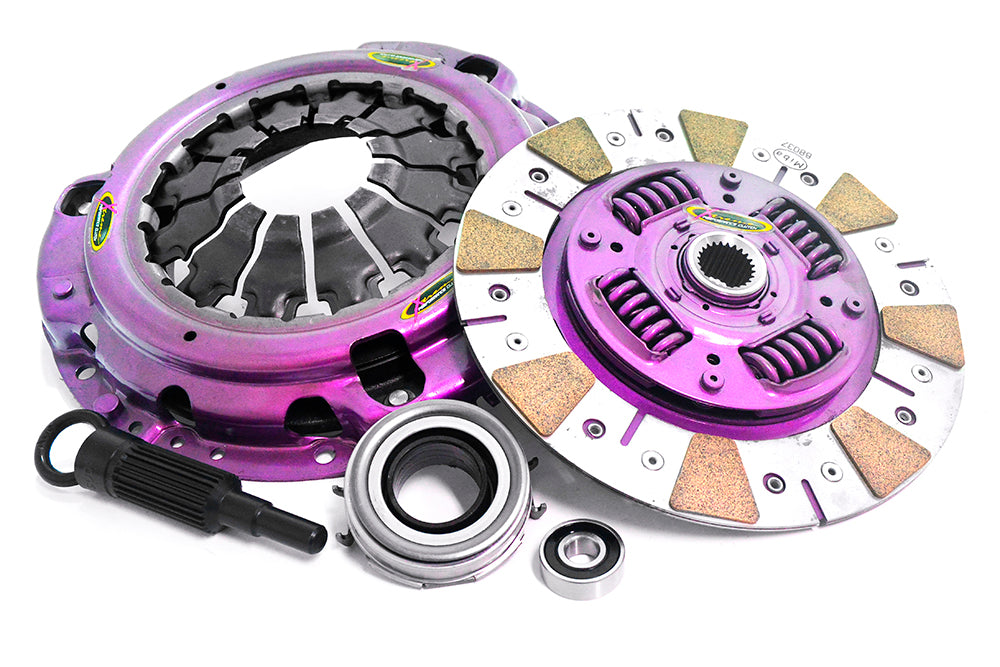

PURCHASED PARTS PACKAGE Pressure plate, friction disc, release bearing, pilot bearing and alignment tool. Flywheel not included.
INSTALLATION AND USE This is a 230 mm clutch kit. It is not the 240 mm KSU24590 clutch-and-flywheel upgrade. Confirm the correct flywheel and follow the supplied fitting and bedding-in instructions. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components.
