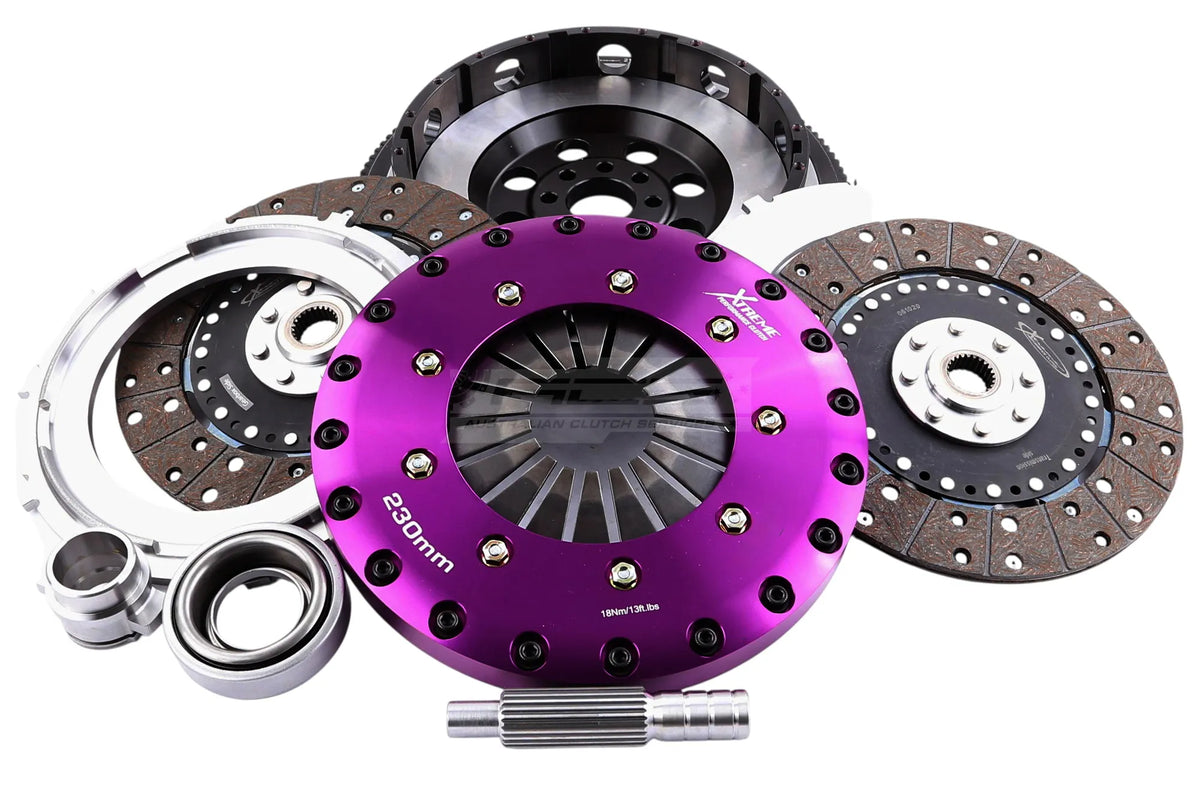

Xtreme Clutch 230 mm rigid organic twin-plate clutch kit with flywheel for the listed Nissan 300ZX Z32 Twin Turbo manual applications.
FITMENT Nissan 300ZX Z32 3.0 twin turbo, May 1990–September 1995; VG30DETT, 2960 cc, 197 kW or 208 kW. Manual transmission only. For the twin-turbo VG30DETT application; do not substitute a naturally aspirated Z32 kit.
SPECIFICATIONS Part number: KNI23538-2G Construction: twin plate Friction discs: rigid organic Disc diameter: 230 mm Input spline: 24 teeth, 25.4 mm diameter Supplier-rated torque capacity: 1200 Nm Flywheel step: +3.8 mm Recommended use: high-power street vehicles Supplier-rated clamp load: 1300 kg
PURCHASED PARTS PACKAGE Twin-plate clutch assembly with two rigid organic friction discs, intermediate plate, matching flywheel, release bearing, pilot bearing / bush, bolts and alignment tool.
INSTALLATION AND USE Match the chassis, engine code, gearbox input spline and release system before ordering. Fit the supplied clutch and flywheel as a matched assembly. Follow the supplied installation instructions and manufacturer bedding-in guidance. The supplier torque rating does not establish a safe limit for other drivetrain components.
