SPECIFICATIONS Part number: KNI23007-1A Stage: 1 Construction: single plate Friction disc: sprung organic Disc diameter: 225 mm Input spline: 24 teeth, 25.5 mm diameter Supplier-rated torque capacity: 380 Nm Flywheel step: flat (0 mm) Clamp load: 800 kg (35% increase over standard)

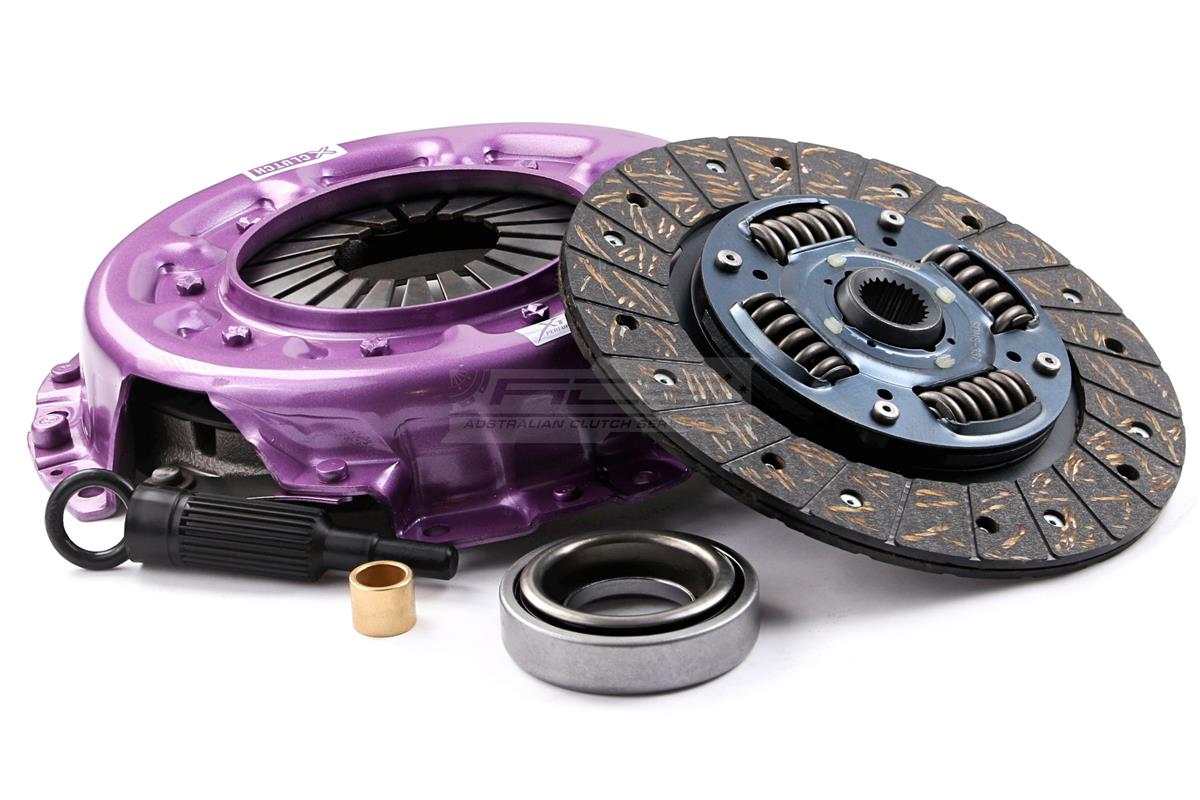

PURCHASED PARTS PACKAGE Heavy-duty pressure plate, sprung organic friction disc and the fitting components shown in the supplier photograph. Flywheel is not included.
INSTALLATION AND USE Match the engine code, gearbox input spline, flywheel and release system before ordering. Follow the supplied installation and bedding-in instructions. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components.
