SPECIFICATIONS Part number: KNI20530-2B Construction: twin plate Friction discs: sprung ceramic Disc diameter: 200 mm Input spline: 24 teeth, 25.4 mm diameter Supplier-rated torque capacity: 1200 Nm Flywheel step: +2.2 mm Recommended use: motorsport Included flywheel: single mass

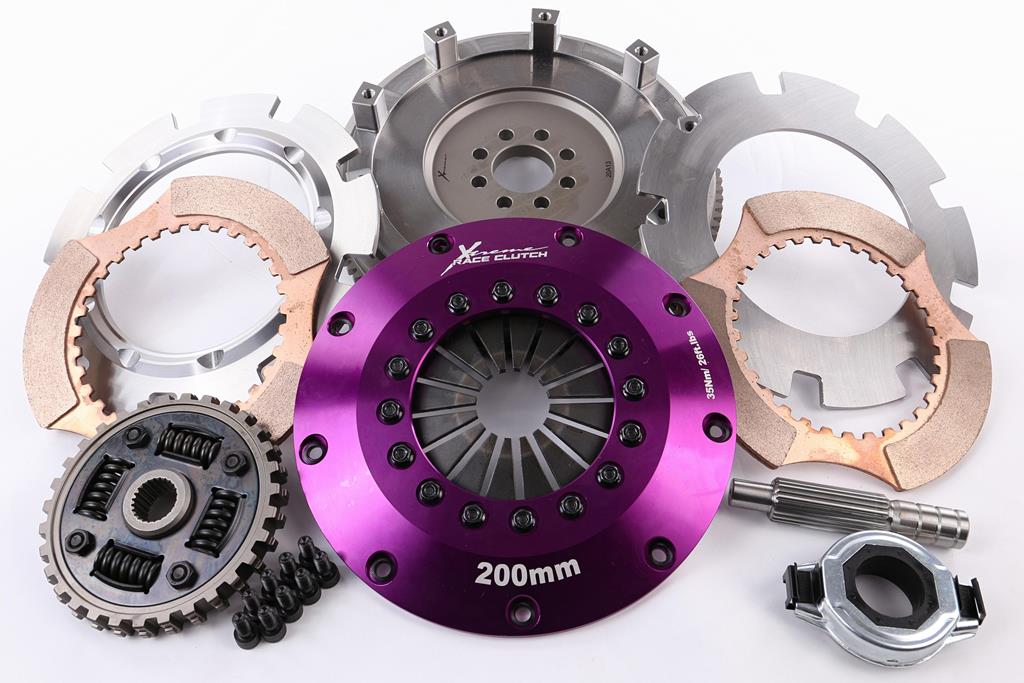

PURCHASED PARTS PACKAGE Twin-plate clutch assembly with two ceramic friction discs and a sprung common hub, matching single-mass flywheel, release bearing, bolts, alignment tool and the fitting components shown in the supplier photograph.
INSTALLATION AND USE Match the engine code, gearbox input spline, flywheel and release system before ordering. Follow the supplied installation and bedding-in instructions. The supplier torque rating does not establish a safe limit for other drivetrain components. Ceramic friction material can engage more abruptly than an original organic clutch; a single-mass flywheel can transmit more engine harmonics or gearbox rattle.
