Xtreme Clutch Stage 1 sprung organic clutch kit for the listed Mazda 626 / MX-6 2.2 Turbo applications. Intended for performance street use.
FITMENT Mazda 626 2.2 i Turbo (GD102), October 1987–December 1991; engine F2T 2184 cc, 100 kW Mazda MX-6 2.2 i Turbo (GD), October 1987–September 1991; engine F2T 2184 cc, 100 kW Manual-transmission applications only.
SPECIFICATIONS Part number: KMZ24040-1A Stage: 1 Construction: single plate Friction disc: sprung organic Disc diameter: 240 mm Input spline: 23 teeth, 26.3 mm diameter Supplier-rated torque capacity: 450 Nm

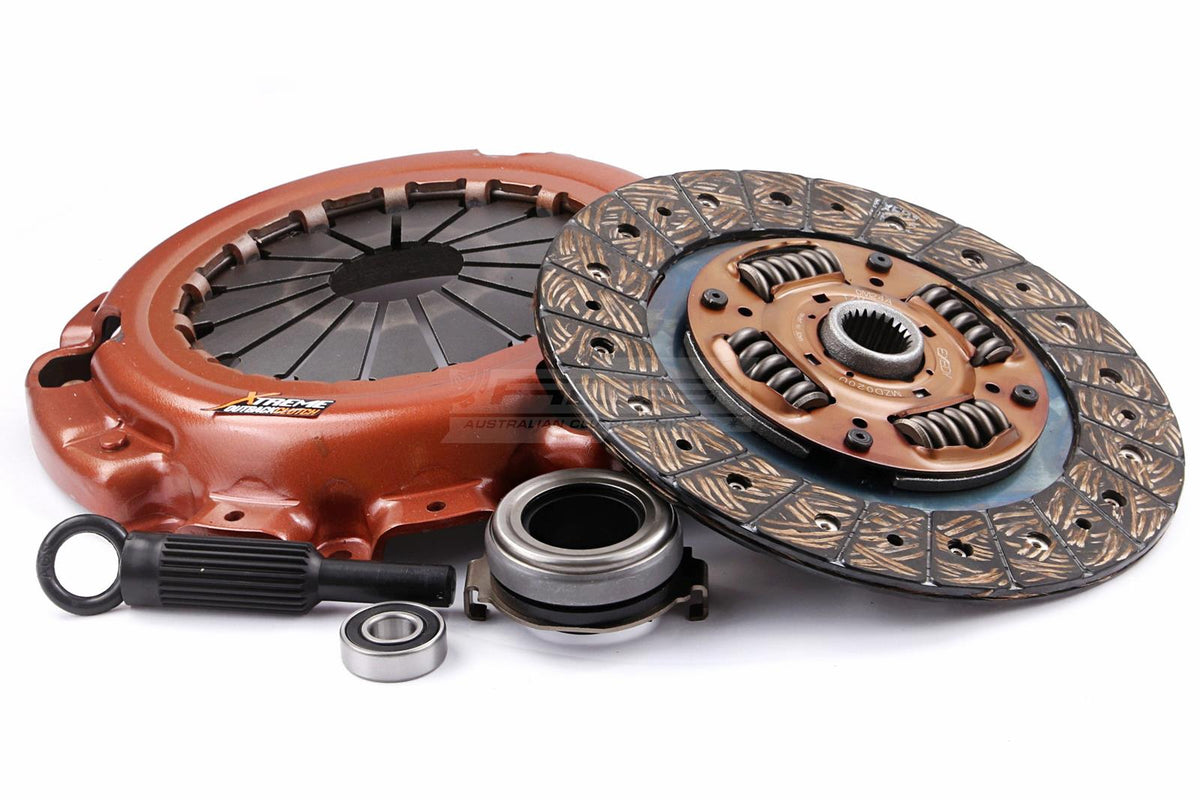

PURCHASED PARTS PACKAGE Heavy-duty pressure plate, sprung organic friction disc and the fitting components shown in the supplier photograph. Flywheel is not included.
INSTALLATION AND USE Match the engine code, gearbox input spline, flywheel and release system before ordering. Follow the supplied installation and bedding-in instructions. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components.
