Xtreme Clutch single-plate cushioned ceramic clutch kit for the Mazda RX-7. Designed for track applications requiring increased heat and torque capacity.
FITMENT Mazda RX-7 (FC1032) January 1988–June 1992 — 1.3, 13B 1308, 110 kW. Mazda RX-7 (FC3S / FC1031) November 1985–April 1989 — 1.3, RE13B 1308, 110 kW. Mazda RX-7 (FC1032) March 1989–December 1991 — 1.3 Turbo, 13B-MSP 1308, 147 kW. Mazda RX-7 (FC3S / FC1031) June 1987–November 1989 — 1.3 Turbo, RE13B 1308, 133 kW. Mazda RX-7 (FC3S / FC1031) March 1989–December 1991 — 1.3 Turbo, RE13B 1308, 147 kW. Match the engine, chassis, gearbox input spline, flywheel and release arrangement before ordering. Automatic-transmission applications are not covered by this listing.
SPECIFICATIONS Part number: KMZ24004-1C Stage: 2 Construction: single plate Friction material: cushioned ceramic Disc diameter: 240 mm Input spline: 23 teeth, 26.3 mm diameter Flywheel step: +0.5 mm (0.02 inch) Supplier-rated torque capacity: 670 Nm Clamp load: 850 kg (30% inc.)

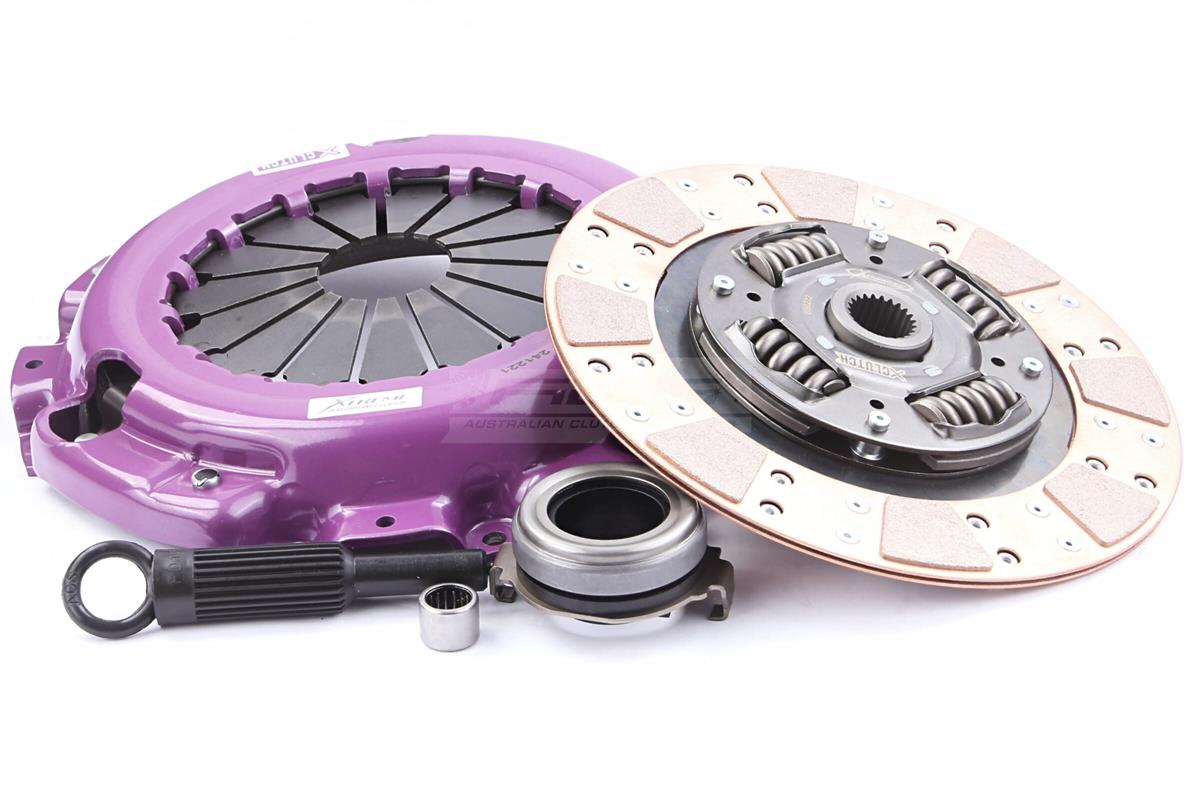

PURCHASED PARTS PACKAGE Pressure plate, friction disc and fitting components shown in the supplier photograph.
INSTALLATION AND USE Check the flywheel condition, profile and release arrangement before installation. Follow the supplied fitting and bedding-in instructions. A ceramic friction disc can change engagement characteristics compared with a standard organic clutch. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components.
