Xtreme Clutch single-plate sprung ceramic clutch kit for the Mazda RX-7. Designed for motorsport applications with an extra heavy-duty pressure plate.
FITMENT Mazda RX-7 (FD3S / FD1031) July 1992–August 2002 — 1.3 Twin Turbo, RE13B 1308, 176 kW. Match the engine, chassis, gearbox input spline, flywheel and release arrangement before ordering. Automatic-transmission applications are not covered by this listing.
SPECIFICATIONS Part number: KMZ24002-1R Stage: 2R Construction: single plate Friction material: sprung ceramic Disc diameter: 236 mm Input spline: 23 teeth, 26.2 mm diameter Flywheel step: +0.5 mm (0.02 inch) Supplier-rated torque capacity: 1000 Nm Clamp load: 1500 kg (100% inc.)

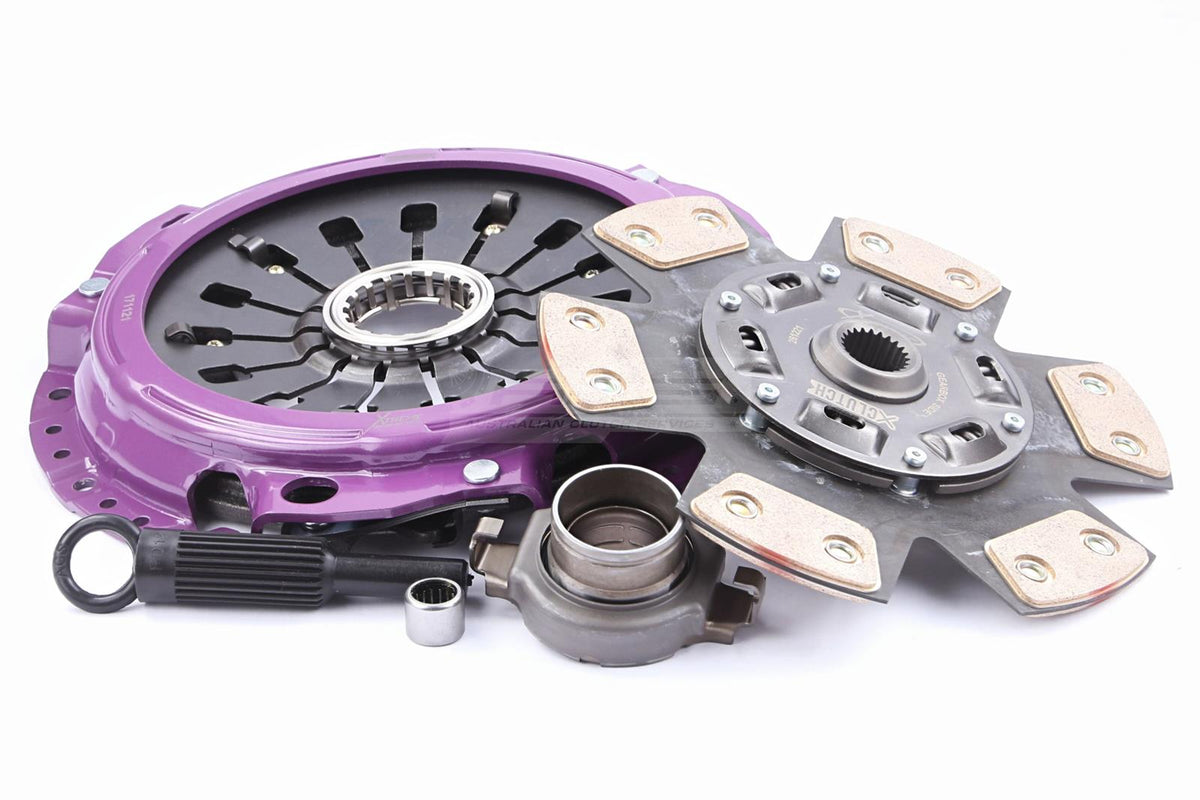

PURCHASED PARTS PACKAGE Pressure plate, friction disc and fitting components shown in the supplier photograph.
INSTALLATION AND USE Check the flywheel condition, profile and release arrangement before installation. Follow the supplied fitting and bedding-in instructions. A ceramic friction disc can change engagement characteristics compared with a standard organic clutch. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components.
