Xtreme Clutch single-plate cushioned ceramic clutch kit for the Mazda MX-5. Designed for track applications requiring increased heat and torque capacity.
FITMENT Mazda MX-5 (ND2E) 2015–2018 — 2.0, PEX6, PEX4 1998, 118 kW. Mazda MX-5 (ND2E) 2016–2018 — 2.0, PEX6 1998, 118 kW. Match the engine, chassis, gearbox input spline, flywheel and release arrangement before ordering. Automatic-transmission applications are not covered by this listing.
SPECIFICATIONS Part number: KMZ23537-1C 225 mm clutch and flywheel upgrade; install the supplied clutch and flywheel together. Stage: 2 Construction: single plate Friction material: cushioned ceramic Disc diameter: 225 mm Input spline: 22 teeth, 24.3 mm diameter Flywheel step: -7.5 mm Supplier-rated torque capacity: 500 Nm

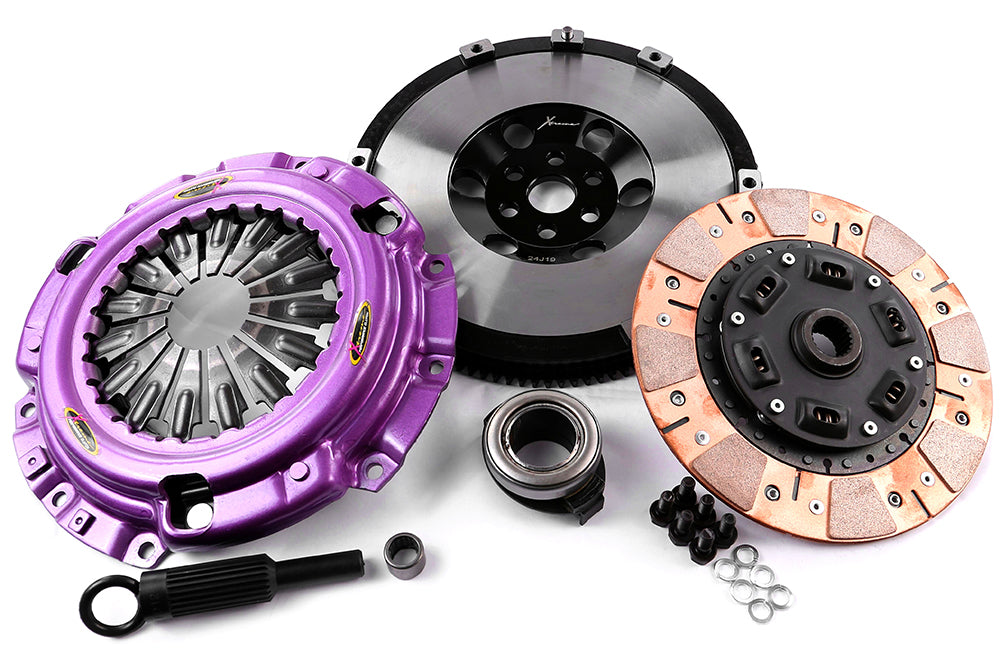

PURCHASED PARTS PACKAGE Pressure plate, friction disc, flywheel and fitting components shown in the supplier photograph.
INSTALLATION AND USE Check the flywheel condition, profile and release arrangement before installation. Follow the supplied fitting and bedding-in instructions. A ceramic friction disc can change engagement characteristics compared with a standard organic clutch. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components.
