Xtreme Clutch single-plate sprung organic clutch kit for the Mazda MX-5. Designed for street-performance applications.
FITMENT Mazda MX-5 (ND2E) June 2015–2017 — 1.5, P5-VPR 1496, 96 kW. Mazda MX-5 (ND6E) May 2018–2023 — 1.5, P5X1 1496, 97 kW. Match the engine, chassis, gearbox input spline, flywheel and release arrangement before ordering. Automatic-transmission applications are not covered by this listing.
SPECIFICATIONS Part number: KMZ23535-1A Stage: 1 Construction: single plate Friction material: sprung organic Disc diameter: 225 mm Input spline: 22 teeth, 24.3 mm diameter Flywheel step: -7.5 mm Supplier-rated torque capacity: 310 Nm

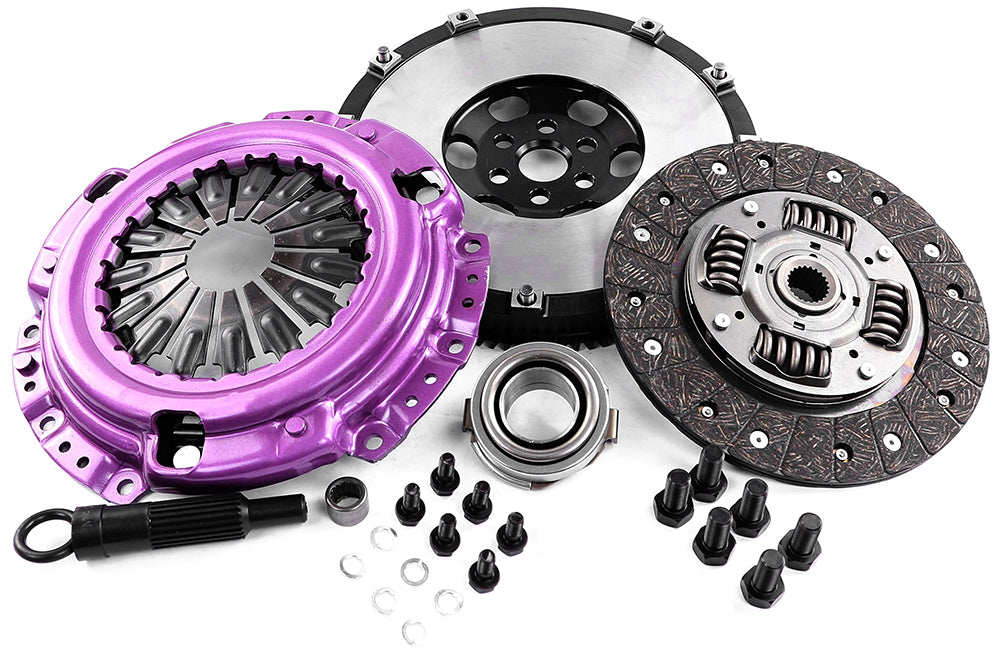

PURCHASED PARTS PACKAGE Pressure plate, friction disc, flywheel and fitting components shown in the supplier photograph.
INSTALLATION AND USE Install the supplied clutch and flywheel together. Check the gearbox input spline and release arrangement before installation. Follow the supplied fitting and bedding-in instructions. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components.
