Xtreme Clutch 230mm Sprung Ceramic Twin Plate Clutch Kit Mazda3 MPS BK with Flywheel KMZ23530-2B

Xtreme Clutch 230 mm sprung ceramic twin-plate clutch kit with a matching single-mass flywheel for the listed Mazda3 MPS BK 2.3 turbo manual applications. Designed for motorsport use.

FITMENT
Mazda3 2.3 DiSi Turbo MPS (BK3P), June 2006–June 2009; L3YH, 2261 cc petrol, 184 kW.
Mazda3 2.3 MPS Turbo (BK14), December 2006–June 2009; L3M6, 2261 cc petrol, 191 kW.
For matching manual-transmission applications only. Check the chassis, engine, gearbox input spline and release arrangement before ordering.

SPECIFICATIONS
Part number: KMZ23530-2B
Construction: twin plate
Friction material: ceramic
Hub: sprung central hub
Disc diameter: 230 mm
Input spline: 23 teeth, 26.2 mm diameter
Supplier-rated torque capacity: 1000 Nm
Flywheel step: +3.8 mm
Supplier-listed clamp load: 1300 kg
Flywheel: single mass, replacing the original dual-mass arrangement

PURCHASED PARTS PACKAGE

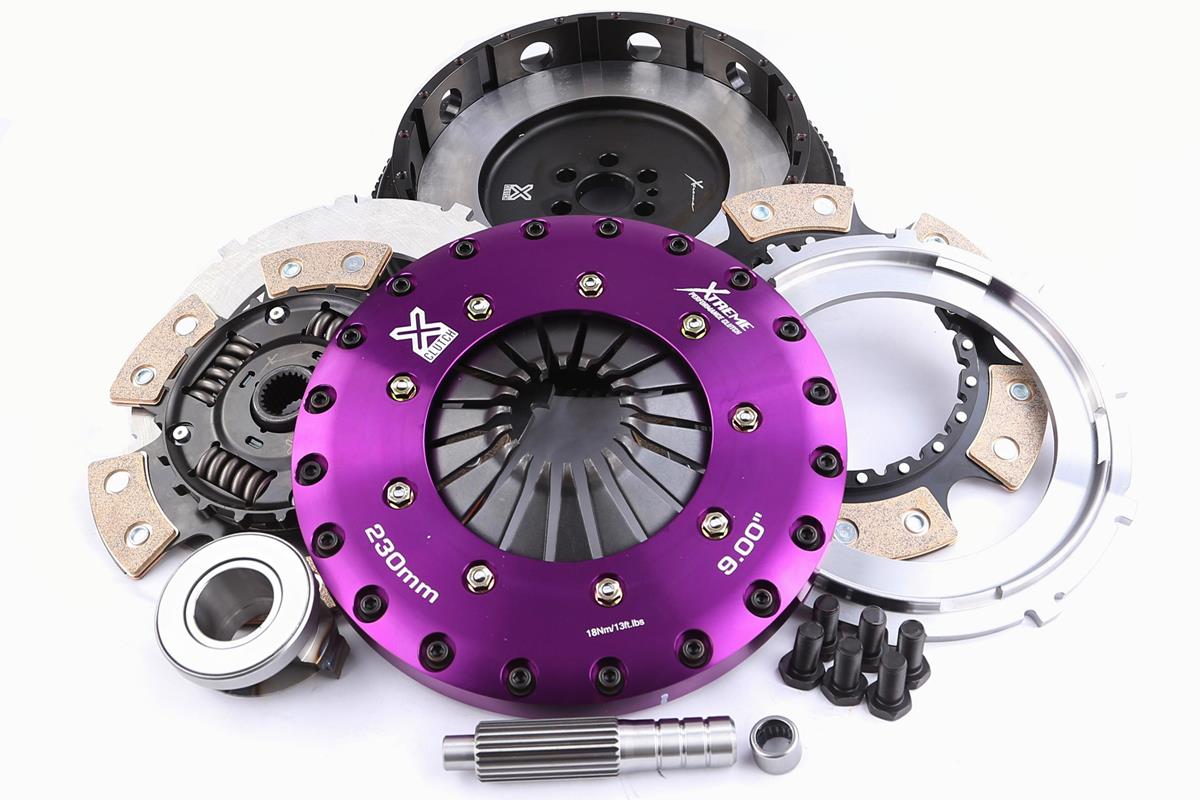

Billet alloy clutch cover, twin ceramic friction assembly with a sprung central hub, intermediate plate, adapter ring, matching single-mass flywheel, release bearing, spigot bearing, bolts and alignment tool, as shown in the exact kit photograph.

INSTALLATION AND USE
Follow the supplied vehicle-specific fitting and bedding-in instructions. Check friction-disc orientation, release travel and clearance. A single-mass flywheel can transmit more vibration and gearbox rattle than the original dual-mass arrangement. The sprung hub reduces shock loading but does not eliminate drivetrain noise. The supplier torque rating does not establish a safe limit for other drivetrain components.
