Xtreme Clutch 225 mm sprung organic clutch kit for the listed Mazda MX-5 2.0 manual applications.
FITMENT Mazda MX-5 2.0 ND2E, 2015–2018; PEX6 / PEX4, 1998 cc, 118 kW. Mazda MX-5 2.0 ND2E, 2016–2018; PEX6, 1998 cc, 118 kW. Manual transmission only. Match the specified generation and engine; this is not a universal MX-5 kit.
SPECIFICATIONS Part number: KMZ23037-1A Construction: single plate Friction disc: sprung organic Disc diameter: 225 mm Input spline: 22 teeth, 24.3 mm diameter Supplier-rated torque capacity: 310 Nm Recommended use: street performance

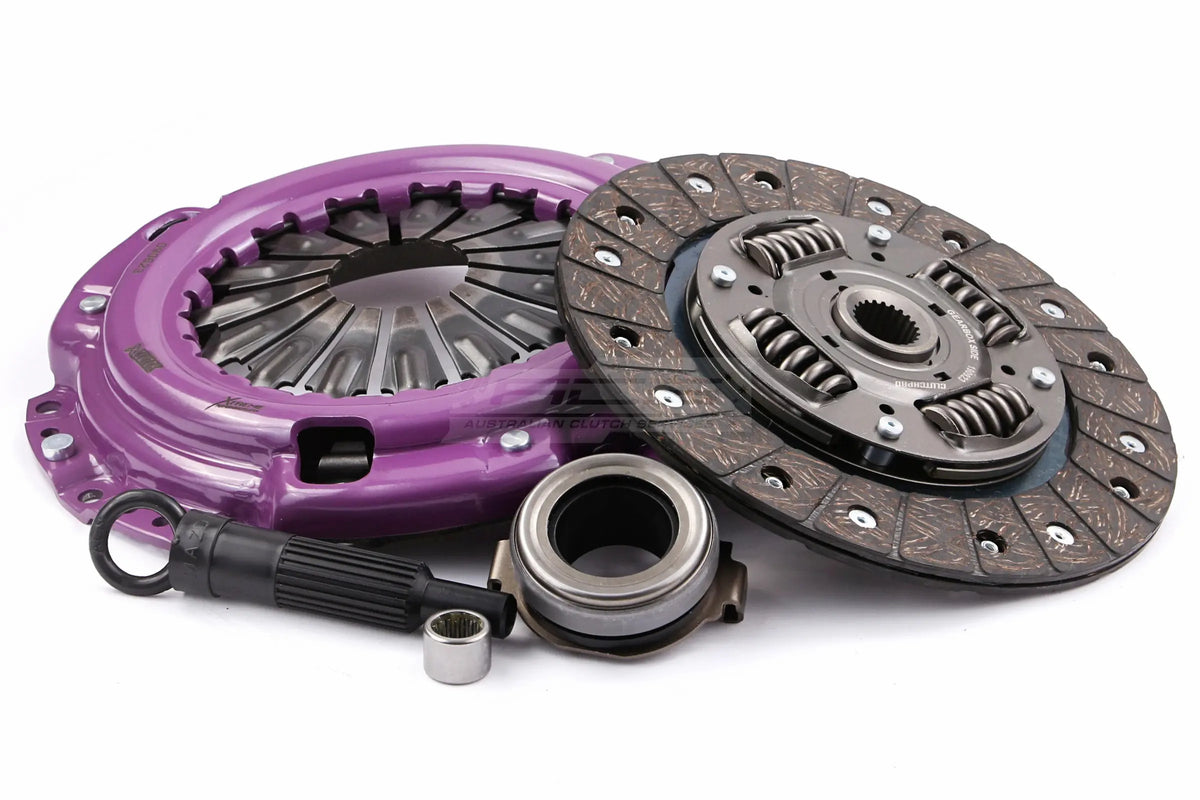

PURCHASED PARTS PACKAGE Heavy-duty pressure plate, sprung organic friction disc, release bearing, pilot bearing / bush, alignment tool and the fitting components shown in the supplier photograph. Flywheel is not included.
INSTALLATION AND USE Match the chassis, engine code, gearbox input spline, flywheel and release system before ordering. Fit all supplied components as a matched assembly and follow the installation instructions. Follow the manufacturer bedding-in guidance. The supplier torque rating does not establish a safe limit for other drivetrain components.
