Xtreme Clutch single-plate sprung organic clutch kit for the Mazda 323. Designed for street-performance applications.
FITMENT Mazda 323 (BG8P) June 1989–March 1991 — 1.8 16V, BP19 1840, 77 kW. Mazda 323 (BG8P) August 1989–July 1994 — 1.8 16V, BP52 1840, 76 kW. Mazda 323 (BG8S / BG8P) August 1989–July 1994 — 1.8 16V, BP 1840, 76 kW. Match the engine, chassis, gearbox input spline, flywheel and release arrangement before ordering. Automatic-transmission applications are not covered by this listing.
SPECIFICATIONS Part number: KMZ20004-1A Stage: 1 Construction: single plate Friction material: sprung organic Disc diameter: 200 mm Input spline: 20 teeth, 22.8 mm diameter Flywheel step: +0.5 mm (0.02 inch) Supplier-rated torque capacity: 200 Nm

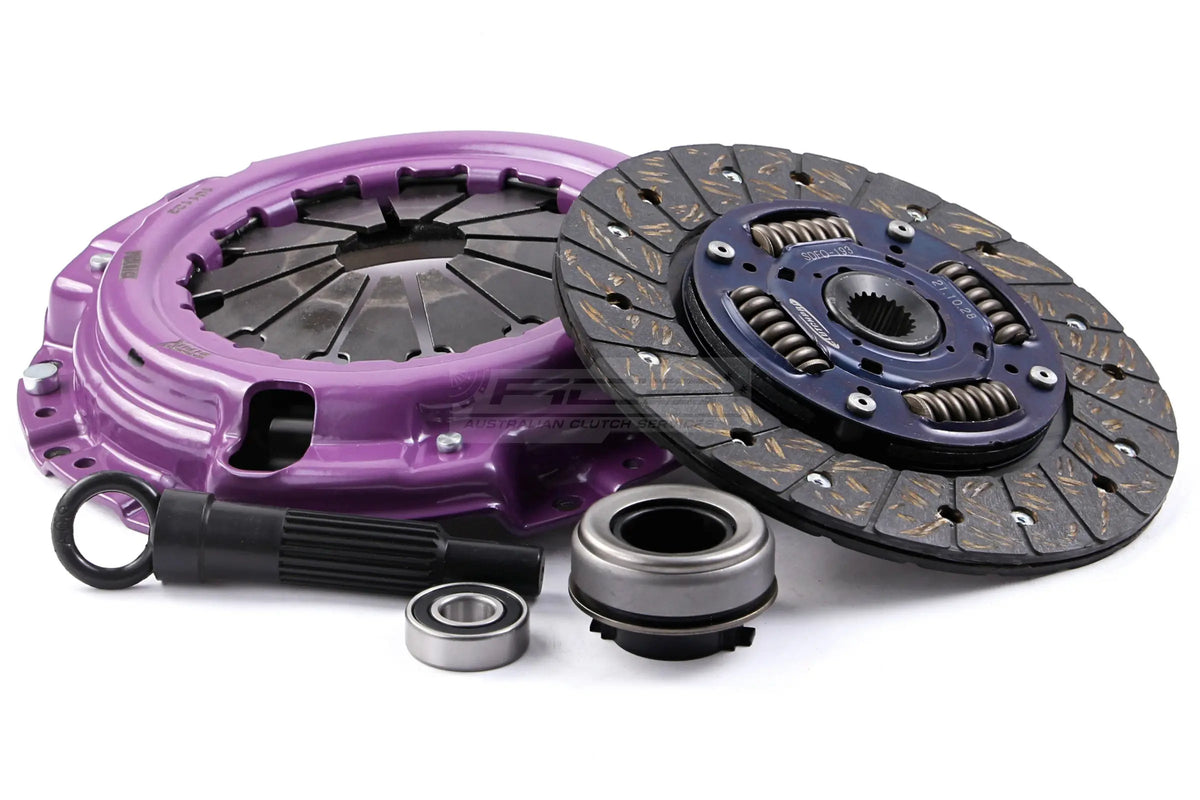

PURCHASED PARTS PACKAGE Pressure plate, friction disc and fitting components shown in the supplier photograph.
INSTALLATION AND USE Check the flywheel condition, profile and release arrangement before installation. Follow the supplied fitting and bedding-in instructions. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components.
