Xtreme Clutch 240mm Sprung Cushioned Ceramic Clutch and Flywheel Kit Mitsubishi Lancer Evo IV / V / VI KMI24522-1C

Xtreme Clutch 240 mm sprung cushioned ceramic single-plate clutch kit with matching flywheel for the listed Mitsubishi Lancer Evolution IV, V and VI manual applications.

FITMENT
Mitsubishi Lancer Evolution IV CN9A, August 1996–December 1997; 4G63 Turbo, 1997 cc petrol, 206 kW.
Mitsubishi Lancer Evolution V RS450 Ralliart CP9A, January 1998–June 1998; 4G63 Turbo, 1997 cc petrol, 336 kW.
Mitsubishi Lancer Evolution VI CP9A, January 1999–February 2001; 4G63 Turbo, 1997 cc petrol, 207 kW.
For matching manual gearboxes with the pull-type release arrangement only. The Evolution V entry is the specific listed RS450 Ralliart application; it does not establish fitment to every Evolution V. Match the gearbox input spline, release bearing and supplied matching flywheel. Not for other Evolution generations, automatic transmissions or engine and gearbox swaps.

SPECIFICATIONS
Part number: KMI24522-1C
Construction: single plate
Friction disc: sprung cushioned ceramic
Disc diameter: 240 mm
Input spline: 23 teeth, 26 mm diameter
Supplier-specified clamp load: 1400 kg
Flywheel step: flat (0 mm)
Release arrangement: pull type
Recommended use: performance and competition

PURCHASED PARTS PACKAGE

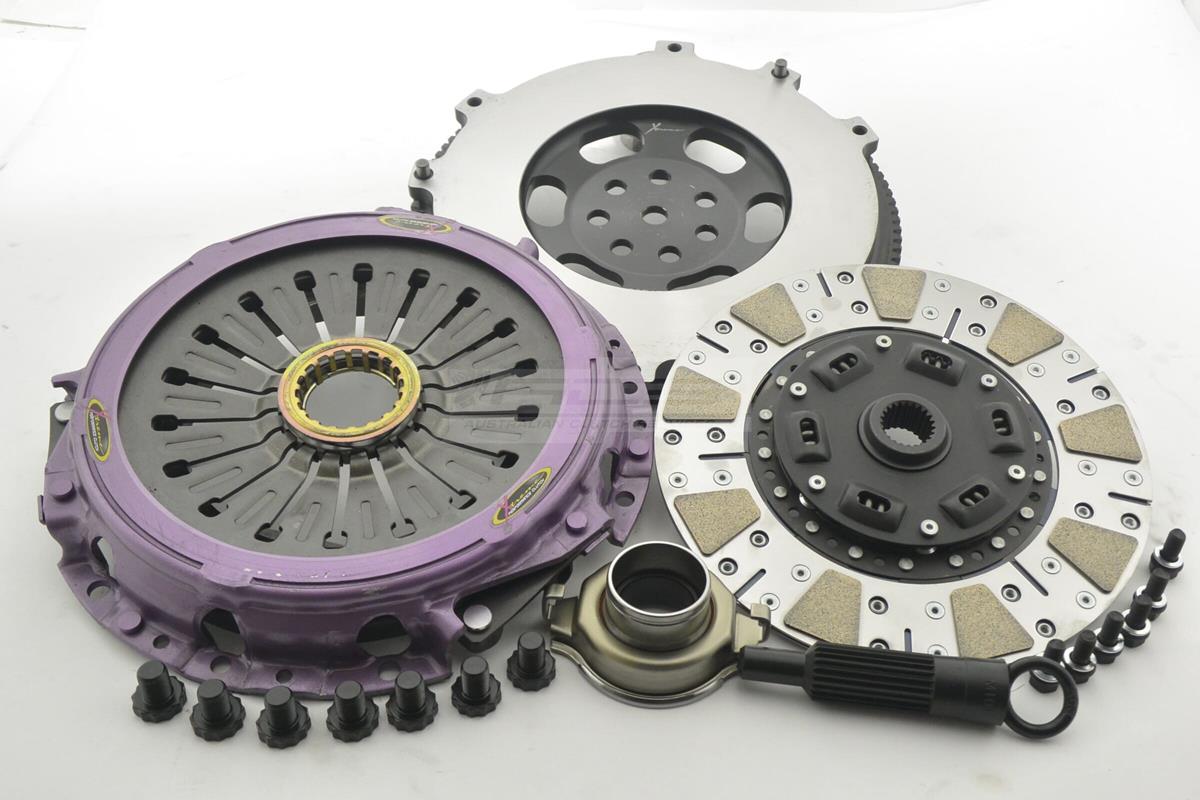

Heavy-duty pressure plate, sprung cushioned ceramic friction disc, release bearing, matching flywheel and fitting fasteners, and alignment tool. This is a matched 240 mm upgrade package; use the supplied flywheel.

INSTALLATION AND USE
Follow the supplied kit-specific instructions and the manufacturer Mitsubishi pull-type clutch fitting bulletin and pull-type release bearing removal guidance. Correct release-bearing engagement is essential. Follow the manufacturer bedding-in guidance. Ceramic friction material can engage more abruptly than an original road clutch.
