Xtreme Clutch Stage 2R Sprung Ceramic Clutch Kit Mitsubishi Lancer Evo V / VII (CP9A / CT9A) KMI24004-1R
1 220 €
1 052 €
/ per
Tax included.
Not in stock, available to order
Product description
Xtreme Clutch single-plate sprung ceramic clutch kit for the Mitsubishi Lancer. Designed for motorsport applications with an extra heavy-duty pressure plate.
FITMENT Mitsubishi Lancer (CP9A) January 1998–December 1998 — EVO V, 4G63 Turbo 1997, 206 kW. Mitsubishi Lancer (CT9A) January 2001–January 2003 — EVO VII, 4G63 Turbo 1997, 200 kW. Mitsubishi Lancer (CT9A) January 2001–January 2003 — EVO VII, 4G63 Turbo 1997, 206 kW. Match the engine, chassis, gearbox input spline, flywheel and release arrangement before ordering. Automatic-transmission applications are not covered by this listing.
SPECIFICATIONS Part number: KMI24004-1R Stage: 2R Construction: single plate Friction material: sprung ceramic Disc diameter: 240 mm Input spline: 23 teeth, 26.1 mm diameter Flywheel step: 0.0 mm Supplier-rated torque capacity: 1170 Nm Clamp load: 1650 kg

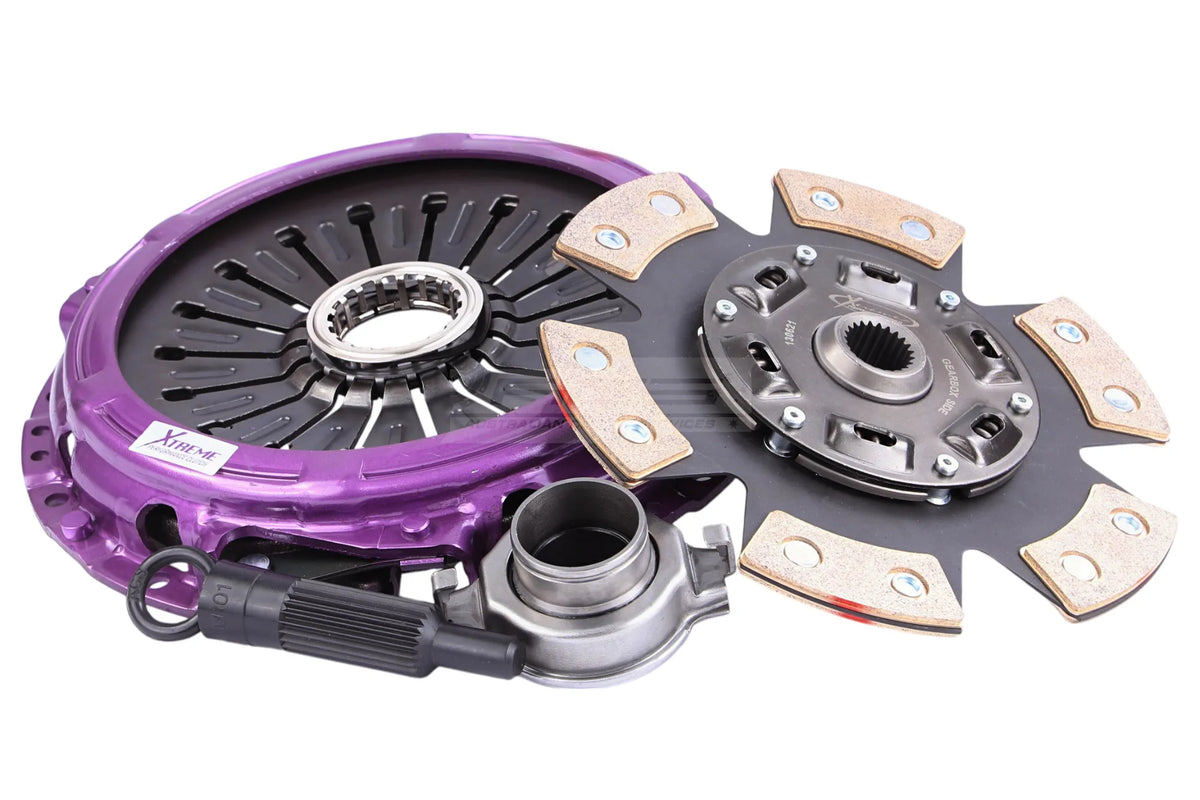

PURCHASED PARTS PACKAGE Pressure plate, friction disc and fitting components shown in the supplier photograph. Flywheel not included.
INSTALLATION AND USE Check the flywheel condition, profile and release arrangement before installation. Follow the supplied fitting and bedding-in instructions. A ceramic friction disc can change engagement characteristics compared with a standard organic clutch. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components.
