Xtreme Clutch single-plate sprung ceramic clutch kit for the listed Mitsubishi Diamante, Galant and Magna applications. Designed for track applications requiring increased heat and torque capacity.
FITMENT Mitsubishi Diamante (F13A, F15A) May 1990–July 1996 — 2.5, 6G73 2497, 129 kW. Mitsubishi Galant (EA6A) September 1996–October 2004 — 2.0 TDI, 4D68 T 1998, 66 kW. Mitsubishi Galant (EA6W) September 1996–October 2003 — 2.0 TDI, 4D68 T 1998, 66 kW. Mitsubishi Galant (E64A, E54A) November 1992–August 1996 — 2.0 V6-24, 6A12 1999, 110 kW. Mitsubishi Galant (EA5A) September 2000–October 2004 — 2.5 V6 24V, 6A13 2498, 118 kW. Mitsubishi Galant (EA5W) September 2000–October 2003 — 2.5 V6 24V, 6A13 2498, 118 kW. Mitsubishi Galant (EA5A) September 1996–September 2000 — 2.5 V6 24V, 6A13 2498, 120 kW. Mitsubishi Galant (EA5W) September 1996–September 2000 — 2.5 V6 24V, 6A13 2498, 120 kW. Mitsubishi Magna (TE) April 1996–June 1997 — 2.4, 4G64 (16V) 2351, 105 kW. Mitsubishi Magna (TF) June 1997–March 1999 — 2.4, 4G64 (16V) 2351, 105 kW. Match the engine, chassis, gearbox input spline, flywheel and release arrangement before ordering. Automatic-transmission applications are not covered by this listing.
SPECIFICATIONS Part number: KMI23019-1B Stage: 2 Construction: single plate Friction material: sprung ceramic Disc diameter: 225 mm Input spline: 20 teeth, 22.4 mm diameter Flywheel step: -15.5 mm (0.61 inch) Supplier-rated torque capacity: 630 Nm Clamp load: 900 kg (20% inc.)

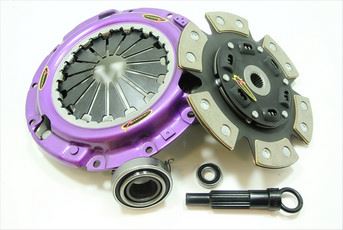

PURCHASED PARTS PACKAGE Pressure plate, friction disc and fitting components shown in the supplier photograph. Flywheel not included.
INSTALLATION AND USE Check the flywheel condition, profile and release arrangement before installation. Follow the supplied fitting and bedding-in instructions. A ceramic friction disc can change engagement characteristics compared with a standard organic clutch. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components.
