Xtreme Clutch single-plate sprung organic clutch kit for the Mitsubishi Lancer / Mirage. Designed for street-performance applications.
FITMENT Mitsubishi Lancer (CK2A) July 1996–August 2003 — 1.5 12V, 4G15 (12V) 1468, 69 kW. Mitsubishi Lancer (CJ2) July 1996–September 2004 — 1.5 16V, 4G15 (16V) 1468, 63 kW. Mitsubishi Mirage (CJ2A) September 1995–August 1999 — 1.5, 4G15 (16V) 1468, 81 kW. Match the engine, chassis, gearbox input spline, flywheel and release arrangement before ordering. Automatic-transmission applications are not covered by this listing.
SPECIFICATIONS Part number: KMI20005-1A Stage: 1 Construction: single plate Friction material: sprung organic Disc diameter: 200 mm Input spline: 20 teeth, 22 mm diameter Flywheel step: 0.0 mm Supplier-rated torque capacity: 190 Nm Clamp load: 550 kg (40% inc.)

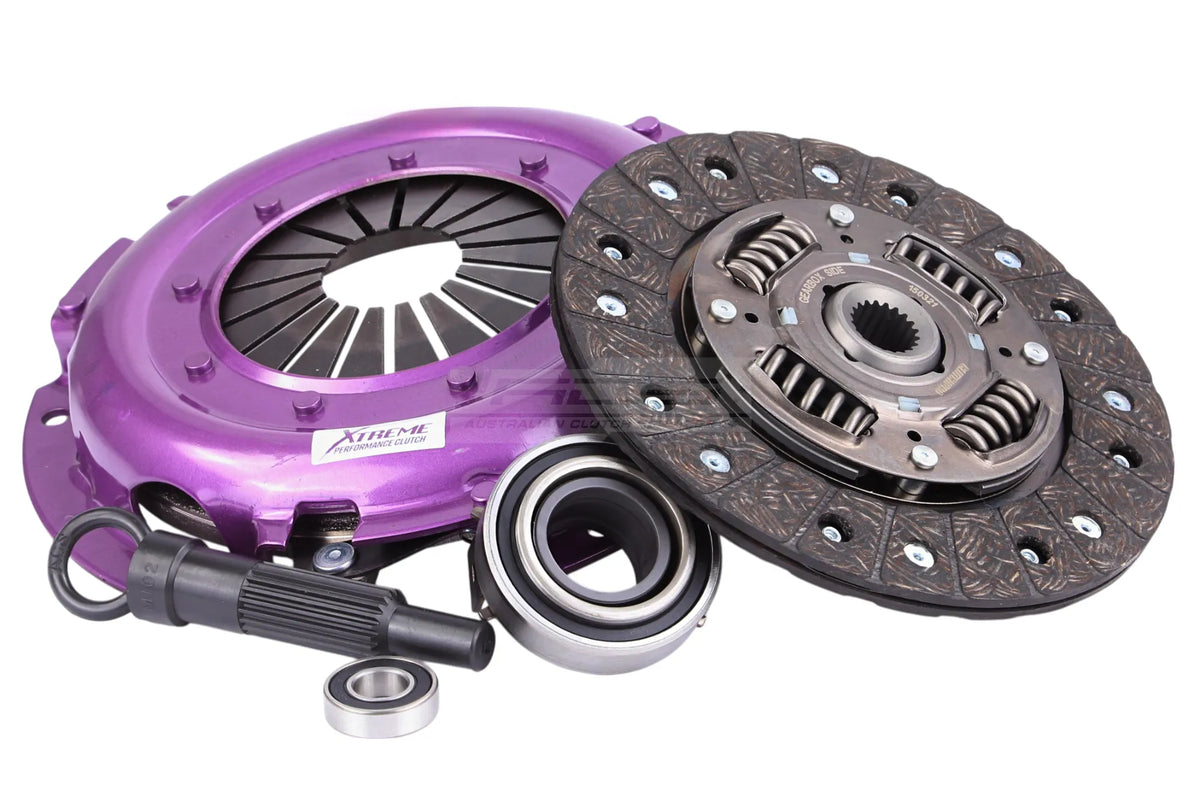

PURCHASED PARTS PACKAGE Pressure plate, friction disc and fitting components shown in the supplier photograph. Flywheel not included.
INSTALLATION AND USE Check the flywheel condition, profile and release arrangement before installation. Follow the supplied fitting and bedding-in instructions. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components.
