Xtreme Clutch single-plate cushioned ceramic clutch kit for the Lexus IS200 / Toyota Altezza. Designed for track applications requiring increased heat and torque capacity.
FITMENT Lexus IS 200 (GXE10) April 1999–July 2005 — 200, 1G-FE 1988, 114 kW. Toyota Altezza (GXE10) January 1999–June 2001 — 2.0, 1G-FE 1988, 114 kW. Toyota Altezza (GXE10) January 1999–May 2005 — 2.0 VVTi, 1G-FE 1988, 118 kW. For the original dual-mass flywheel arrangement. This is not a single-mass flywheel conversion kit. Match the engine, gearbox input spline and release arrangement before ordering. Automatic-transmission applications are not covered by this listing.
SPECIFICATIONS Part number: KLX23001-1C Stage: 2 Construction: single plate Friction material: cushioned ceramic Disc diameter: 225 mm Input spline: 21 teeth, 29 mm diameter Flywheel step: +0.5 mm Supplier-rated torque capacity: 430 Nm

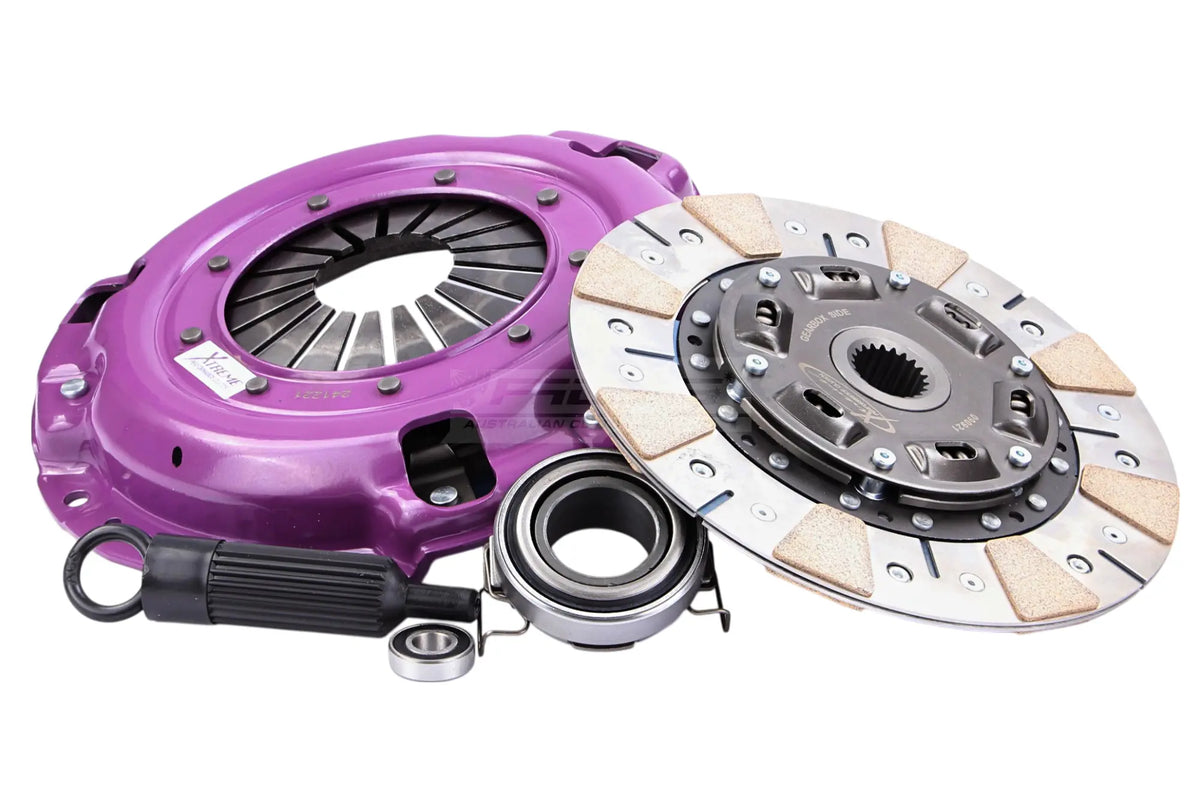

PURCHASED PARTS PACKAGE Pressure plate, friction disc and fitting components shown in the supplier photograph. Flywheel not included.
INSTALLATION AND USE Check the flywheel condition, profile and release arrangement before installation. Follow the supplied fitting and bedding-in instructions. A ceramic friction disc can change engagement characteristics compared with a standard organic clutch. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components.
