Xtreme Clutch Stage 1 sprung organic clutch kit for the listed Honda Civic 1.5 (FK7 / FC1) applications. Intended for performance street use. Includes a single-mass conversion flywheel.
FITMENT Honda Civic Gen. X / 1.5 VTEC (FK7), from March 2017; engine L15B7 1498 cc, 127 kW Honda Civic Gen. X / 1.5 RS Turbo (FC1), from June 2016; engine L15B7, L15BB 1498 cc, 127 kW Manual-transmission applications only.
SPECIFICATIONS Part number: KHN24538-1A Stage: 1 Construction: single plate Friction disc: sprung organic Disc diameter: 240 mm Input spline: 24 teeth, 26.4 mm diameter Supplier-rated torque capacity: 600 Nm Flywheel step: -9.53 mm Included flywheel: single-mass conversion

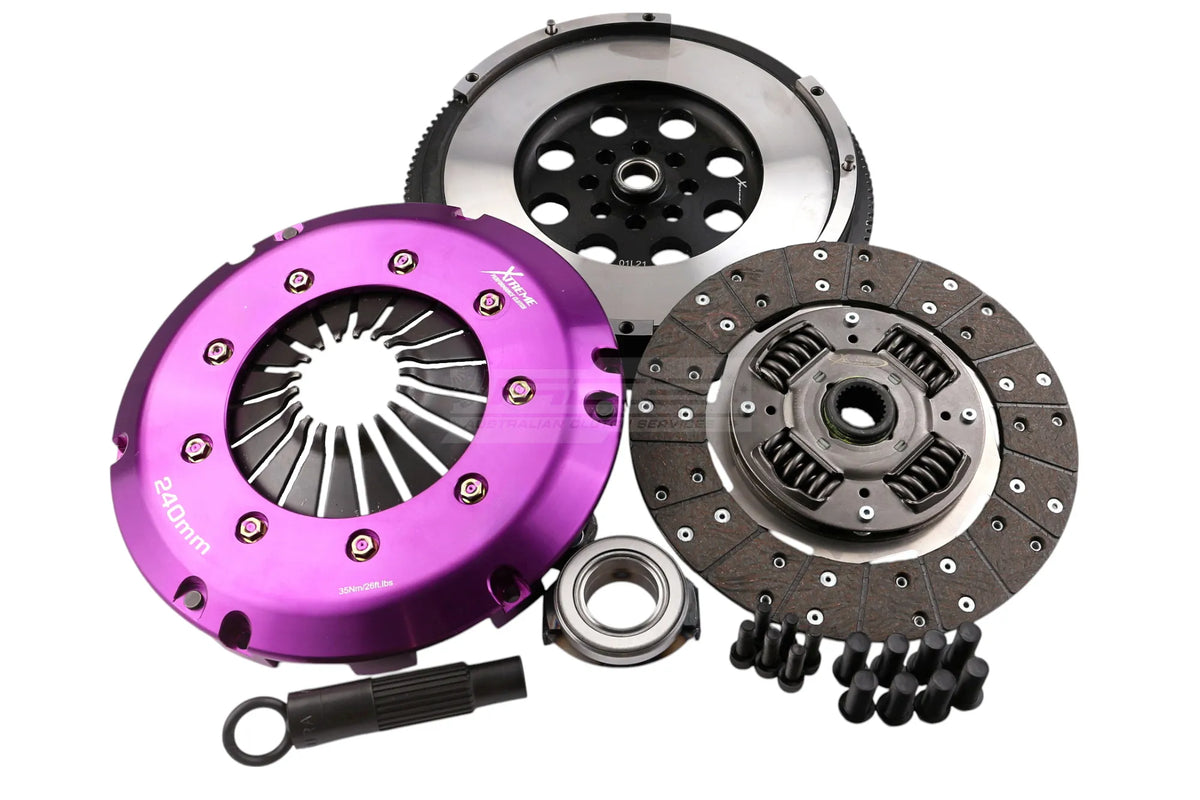

PURCHASED PARTS PACKAGE Heavy-duty pressure plate, sprung organic friction disc, matching single-mass flywheel and the fitting components shown in the supplier photograph.
INSTALLATION AND USE Match the engine code, gearbox input spline, flywheel and release system before ordering. Follow the supplied installation and bedding-in instructions. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components. Single-mass conversion can increase transmitted engine harmonics or gearbox rattle. Follow TSB-226: 240 mm clutch installation and the supplied assembly instructions.
