Xtreme Clutch single-plate cushioned ceramic clutch kit for the Honda Integra. Designed for track applications requiring increased heat and torque capacity.
FITMENT Honda Integra (DA6 / DA8) November 1992–August 1993 — 1.6, B16A 1595, 125 kW. Honda Integra (DA9) February 1992–July 1993 — 1.8, B18A1, B18B1 1834, 96 kW. Suits vehicles manufactured from 11/1992. Match the engine, chassis, gearbox input spline, flywheel and release arrangement before ordering. Automatic-transmission applications are not covered by this listing.
SPECIFICATIONS Part number: KHN22016-1C Stage: 2 Construction: single plate Friction material: cushioned ceramic Disc diameter: 220 mm Input spline: 24 teeth, 26 mm diameter Flywheel step: +2.75 mm (0.108 inch) Supplier-rated torque capacity: 430 Nm Clamp load: 635 kg (45% inc.)

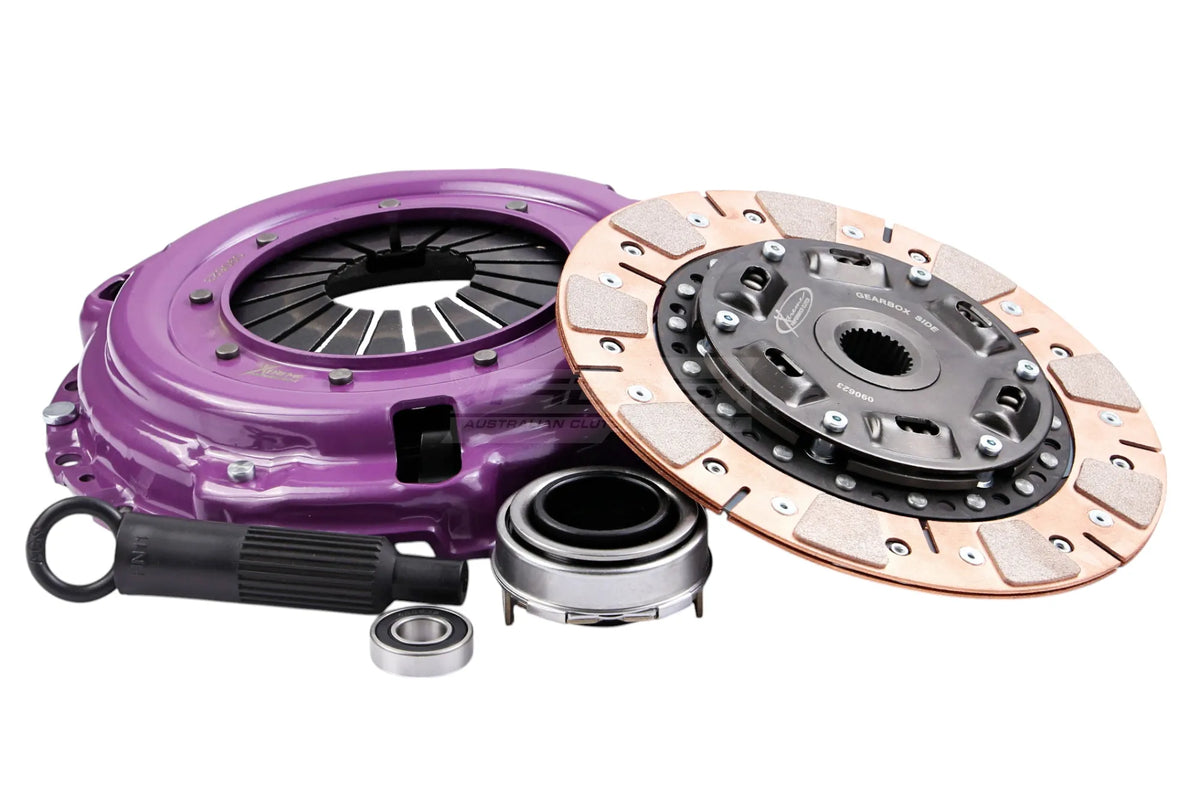

PURCHASED PARTS PACKAGE Pressure plate, friction disc and fitting components shown in the supplier photograph. Flywheel not included.
INSTALLATION AND USE Check the flywheel condition, profile and release arrangement before installation. Follow the supplied fitting and bedding-in instructions. A ceramic friction disc can change engagement characteristics compared with a standard organic clutch. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components.
