Xtreme Clutch single-plate sprung organic clutch kit for the Honda Prelude. Designed for street-performance applications.
FITMENT Honda Prelude (BA) January 1986–September 1987 — 2.0 i, A20A4 1955, 85 kW. Match the engine, chassis, gearbox input spline, flywheel and release arrangement before ordering. Automatic-transmission applications are not covered by this listing.
SPECIFICATIONS Part number: KHN22012-1A Stage: 1 Construction: single plate Friction material: sprung organic Disc diameter: 215 mm Input spline: 24 teeth, 25 mm diameter Flywheel step: -15.7 mm (0.616 inch) Supplier-rated torque capacity: 240 Nm Clamp load: 550 kg (60% inc.)

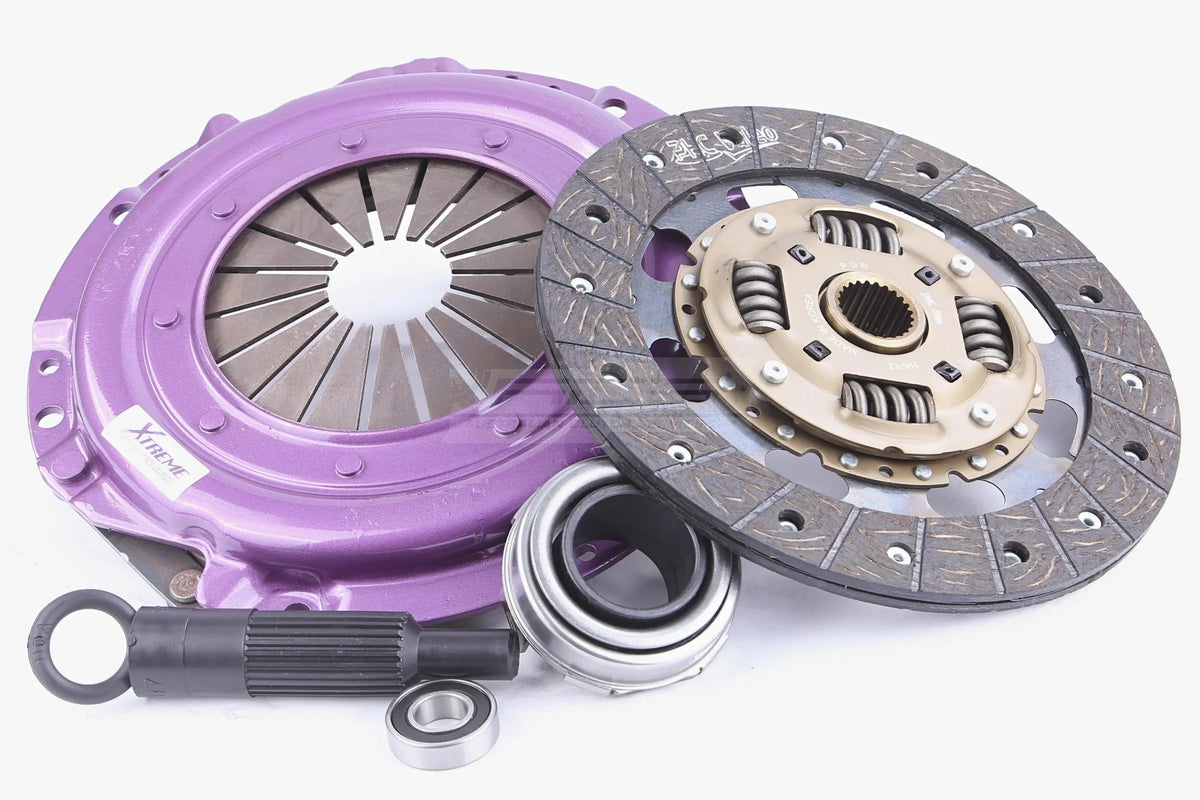

PURCHASED PARTS PACKAGE Pressure plate, friction disc and fitting components shown in the supplier photograph. Flywheel not included.
INSTALLATION AND USE Check the flywheel condition, profile and release arrangement before installation. Follow the supplied fitting and bedding-in instructions. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components.
