Xtreme Clutch single-plate sprung ceramic clutch kit for the Honda CRX / Civic / Integra. Designed for track applications requiring increased heat and torque capacity.
FITMENT Honda CRX (EE8) October 1989–February 1992 — 1.6 i 16V VTEC, B16A1 1595, 110 kW. Honda Civic (EE9) October 1989–September 1991 — 1.6 i 16V VTEC, B16A1 1595, 110 kW. Honda Integra (DA6 / DA8) September 1989–October 1992 — 1.6, B16A 1595, 125 kW. Suits vehicles manufactured until 10/1992. Honda Integra (DA9) June 1989–January 1992 — 1.8, B18A1, B18B1 1834, 96 kW. Suits vehicles manufactured until 01/1992. Match the engine, chassis, gearbox input spline, flywheel and release arrangement before ordering. Automatic-transmission applications are not covered by this listing.
SPECIFICATIONS Part number: KHN22003-1B Stage: 2 Construction: single plate Friction material: sprung ceramic Disc diameter: 220 mm Input spline: 24 teeth, 25 mm diameter Flywheel step: +2.75 mm (0.108 inch) Supplier-rated torque capacity: 450 Nm Clamp load: 635 kg (45% inc.)

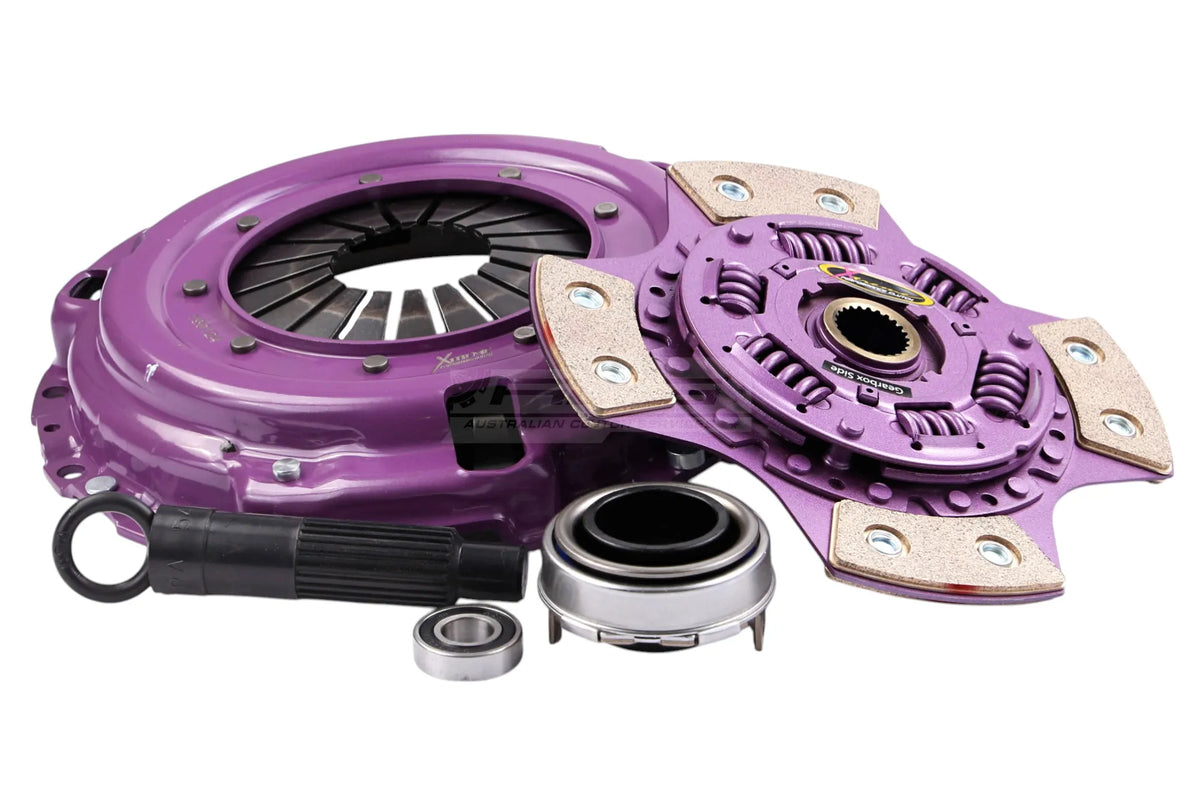

PURCHASED PARTS PACKAGE Pressure plate, friction disc and fitting components shown in the supplier photograph. Flywheel not included.
INSTALLATION AND USE Check the flywheel condition, profile and release arrangement before installation. Follow the supplied fitting and bedding-in instructions. A ceramic friction disc can change engagement characteristics compared with a standard organic clutch. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components.
