Xtreme Clutch Stage 1 Sprung Organic Clutch and Flywheel Kit Honda Jazz (GD1 / GD3) KHN21506-1A
867 €
748 €
/ per
Tax included.
Not in stock, available to order
Product description
Xtreme Clutch single-plate sprung organic clutch kit for the Honda Jazz. Designed for street-performance applications.
FITMENT Honda Jazz (GD1) March 2002–July 2008 — 1.3 i-DSI, L13A1 1339, 61 kW. Honda Jazz (GD3) April 2002–July 2008 — 1.5 VTEC, L15A1 1497, 81 kW. Match the engine, chassis, gearbox input spline, flywheel and release arrangement before ordering. Automatic-transmission applications are not covered by this listing.
SPECIFICATIONS Part number: KHN21506-1A Stage: 1 Construction: single plate Friction material: sprung organic Disc diameter: 212 mm upgrade Input spline: 20 teeth, 22 mm diameter Flywheel step: -1.5 mm Supplier-rated torque capacity: 270 Nm Clamp load: 650 kg (55% inc.)

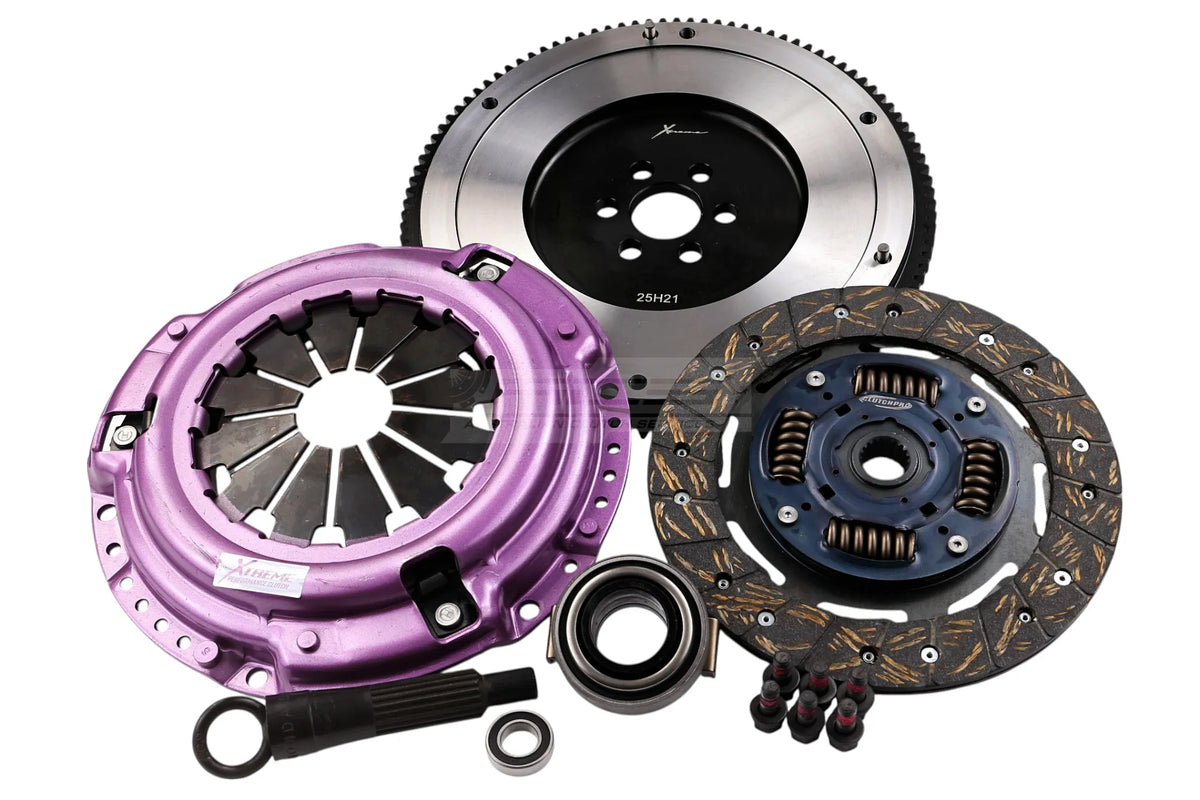

PURCHASED PARTS PACKAGE Pressure plate, friction disc, single-mass flywheel and fitting components shown in the supplier photograph.
INSTALLATION AND USE Install the supplied clutch and single-mass flywheel together. Check the gearbox input spline and release arrangement before installation. Follow the supplied fitting and bedding-in instructions. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components.
