Xtreme Clutch 215 mm sprung organic single-plate clutch kit for the listed Honda CR-Z 1.5 Hybrid manual applications.
FITMENT Honda CR-Z 1.5 Hybrid, February 2010–September 2012; LEA, 1497 cc. Honda CR-Z 1.5 Hybrid, November 2011–March 2013; LEA1, 1497 cc. Honda CR-Z 1.5 Hybrid, September 2012–January 2017; LEA, 1497 cc. Manual-transmission application only.
SPECIFICATIONS Part number: KHN21009-1A Construction: single plate Friction disc: sprung organic Disc diameter: 215 mm Input spline: 20 teeth, 22 mm diameter Supplier-rated torque capacity: 270 Nm Flywheel step: -1.5 mm Recommended use: street performance

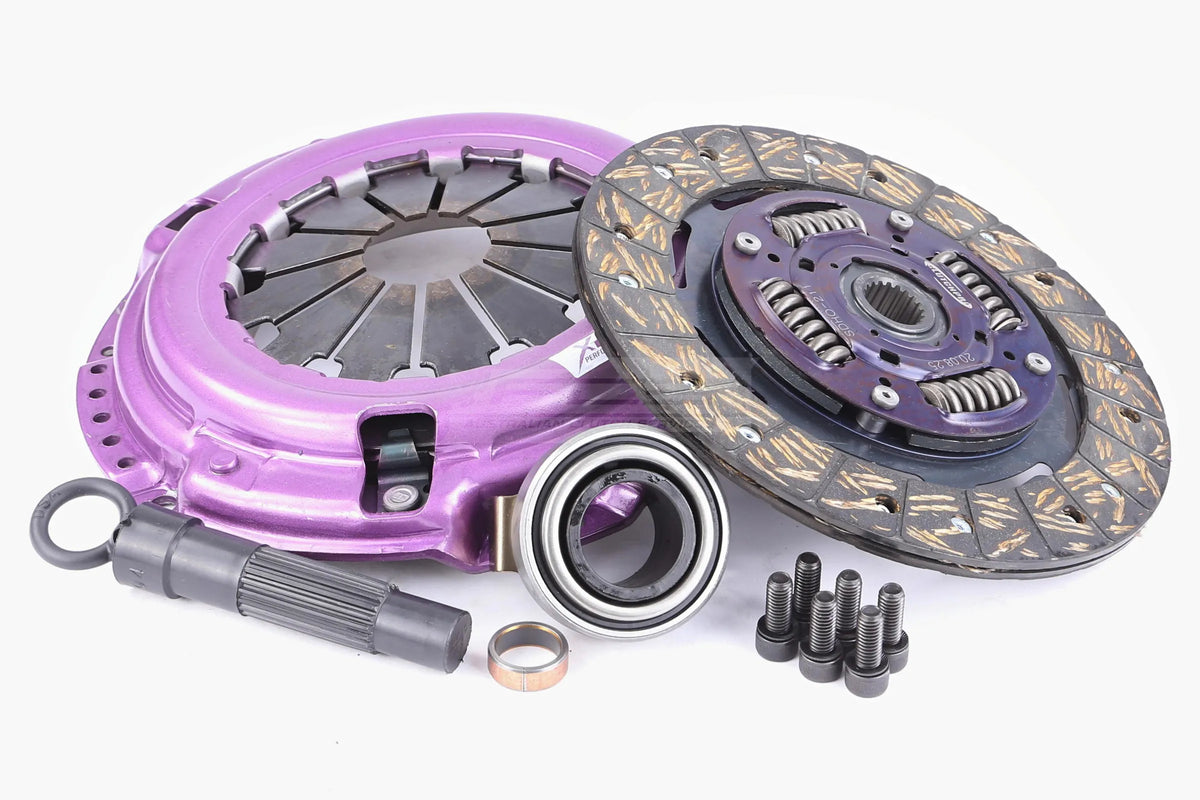

PURCHASED PARTS PACKAGE Heavy-duty pressure plate, sprung organic friction disc, release bearing, bolts, alignment tool and the fitting components shown in the supplier photograph. Flywheel is not included.
INSTALLATION AND USE Match the engine code, gearbox input spline, flywheel and release system before ordering. Follow the supplied installation and bedding-in instructions. The supplier torque rating does not establish a safe limit for other drivetrain components.
