Xtreme Clutch 212 mm cushioned ceramic single-plate clutch kit for the listed Honda S2000 manual applications.
FITMENT Honda S2000 AP1 2.0 VTEC, from June 1999; F20C, 1997 cc petrol, 177 kW. Honda S2000 2.0 VTEC, March 1999–October 2003; F20C1, 1997 cc petrol, 170 kW. Honda S2000 AP1 2.0 VTEC, from October 2003; F20C3, 1997 cc petrol, 184 kW. Honda S2000 AP2 2.2 VTEC, from October 2003; F22C1, 2156 cc petrol, 176 kW. Match the engine code, gearbox input spline, flywheel and release system before ordering.
SPECIFICATIONS Part number: KHN21005-1C Construction: single plate Friction disc: cushioned ceramic Disc diameter: 212 mm Input spline: 24 teeth, 26.2 mm diameter Supplier-rated torque capacity: 700 Nm Supplier-rated clamp load: 1150 kg, 40% increase Flywheel step: -1.7 mm Recommended use: track

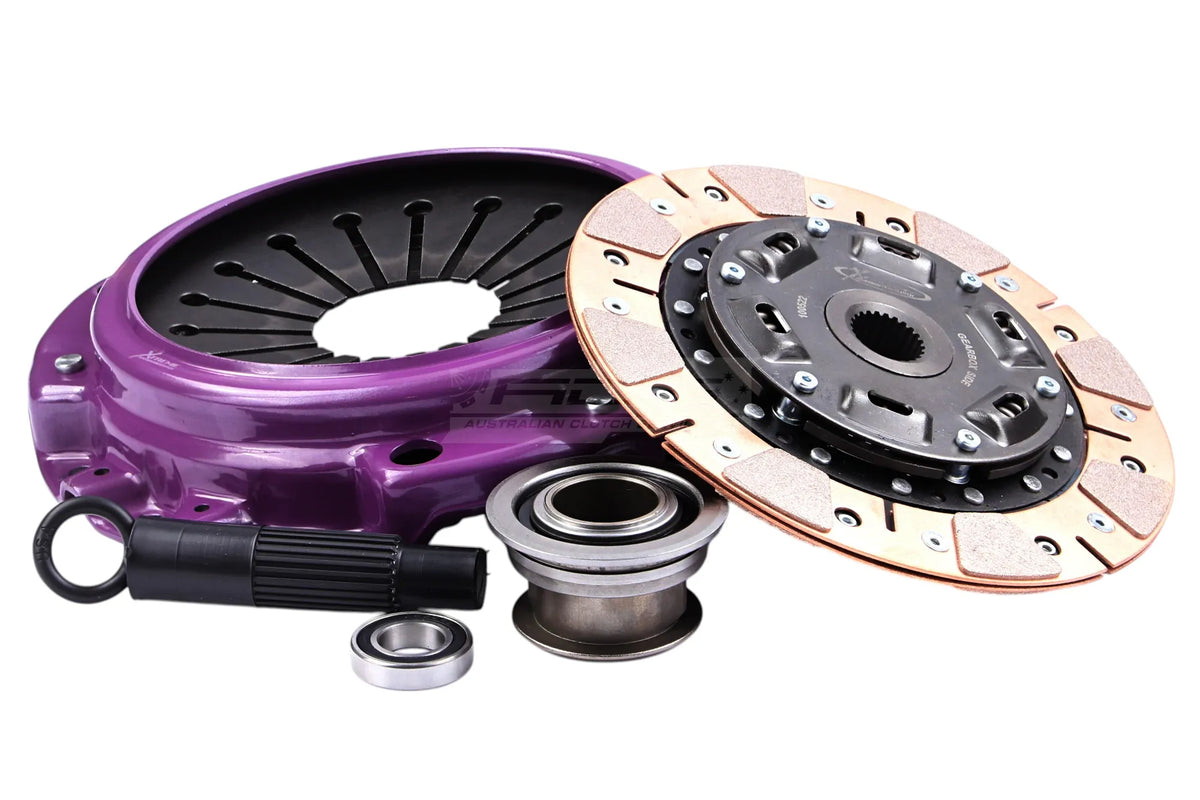

PURCHASED PARTS PACKAGE Heavy-duty pressure plate, cushioned ceramic friction disc, release bearing, pilot bearing and alignment tool. Flywheel is not included.
INSTALLATION AND USE Follow the supplied installation instructions and manufacturer bedding-in guidance. Check the existing flywheel and release mechanism for wear and correct application before fitting. Ceramic friction material can engage more abruptly than an original road clutch. The supplier torque rating does not establish a safe limit for other drivetrain components.
