Xtreme Clutch single-plate sprung ceramic clutch kit for the Honda Civic. Designed for track applications requiring increased heat and torque capacity.
FITMENT Honda Civic (EE4) January 1988–December 1988 — 1.6i 16V 4WD, D16A6 1590, 81 kW. Honda Civic (EE4) January 1988–December 1988 — 1.6 4x4, D16A7, D16A 1590, 85 kW. Honda Civic (EE4) January 1988–December 1988 — 1.6i 16V 4WD, D16A6 1590, 80 kW. Match the engine, chassis, gearbox input spline, flywheel and release arrangement before ordering. Automatic-transmission applications are not covered by this listing.
SPECIFICATIONS Part number: KHN20008-1B Stage: 2 Construction: single plate Friction material: sprung ceramic Disc diameter: 200 mm Input spline: 21 teeth, 22 mm diameter Flywheel step: -0.65 mm (0.025 inch) Supplier-rated torque capacity: 320 Nm Clamp load: 500 kg (60% inc.)

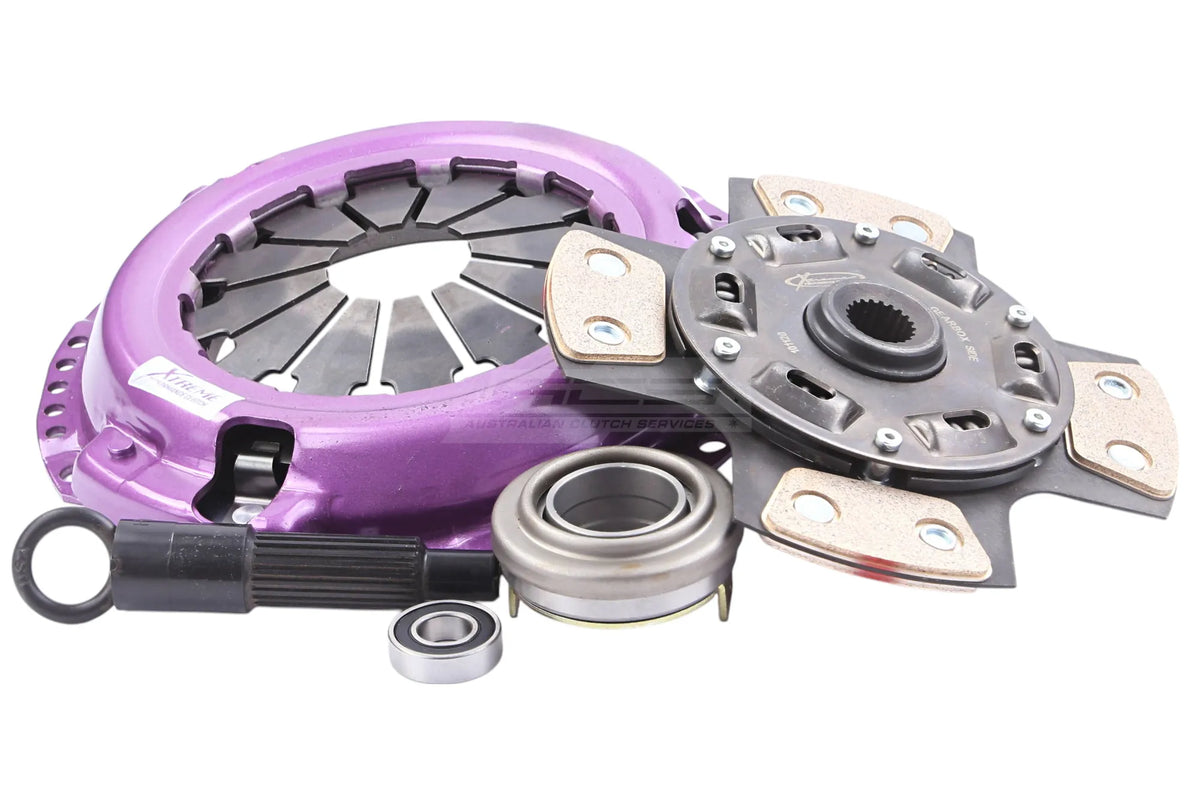

PURCHASED PARTS PACKAGE Pressure plate, friction disc and fitting components shown in the supplier photograph. Flywheel not included.
INSTALLATION AND USE Check the flywheel condition, profile and release arrangement before installation. Follow the supplied fitting and bedding-in instructions. A ceramic friction disc can change engagement characteristics compared with a standard organic clutch. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components.
