Xtreme Clutch single-plate sprung organic clutch kit for the Honda Civic. Designed for street-performance applications.
FITMENT Honda Civic (EE4) January 1988–December 1988 — 1.6i 16V 4WD, D16A6 1590, 81 kW. Honda Civic (EE4) January 1988–December 1988 — 1.6 4x4, D16A7, D16A 1590, 85 kW. Honda Civic (EE4) January 1988–December 1988 — 1.6i 16V 4WD, D16A6 1590, 80 kW. Match the engine, chassis, gearbox input spline, flywheel and release arrangement before ordering. Automatic-transmission applications are not covered by this listing.
SPECIFICATIONS Part number: KHN20008-1A Stage: 1 Construction: single plate Friction material: sprung organic Disc diameter: 200 mm Input spline: 21 teeth, 22 mm diameter Flywheel step: -0.65 mm (0.025 inch) Supplier-rated torque capacity: 200 Nm Clamp load: 500 kg (60% inc.)

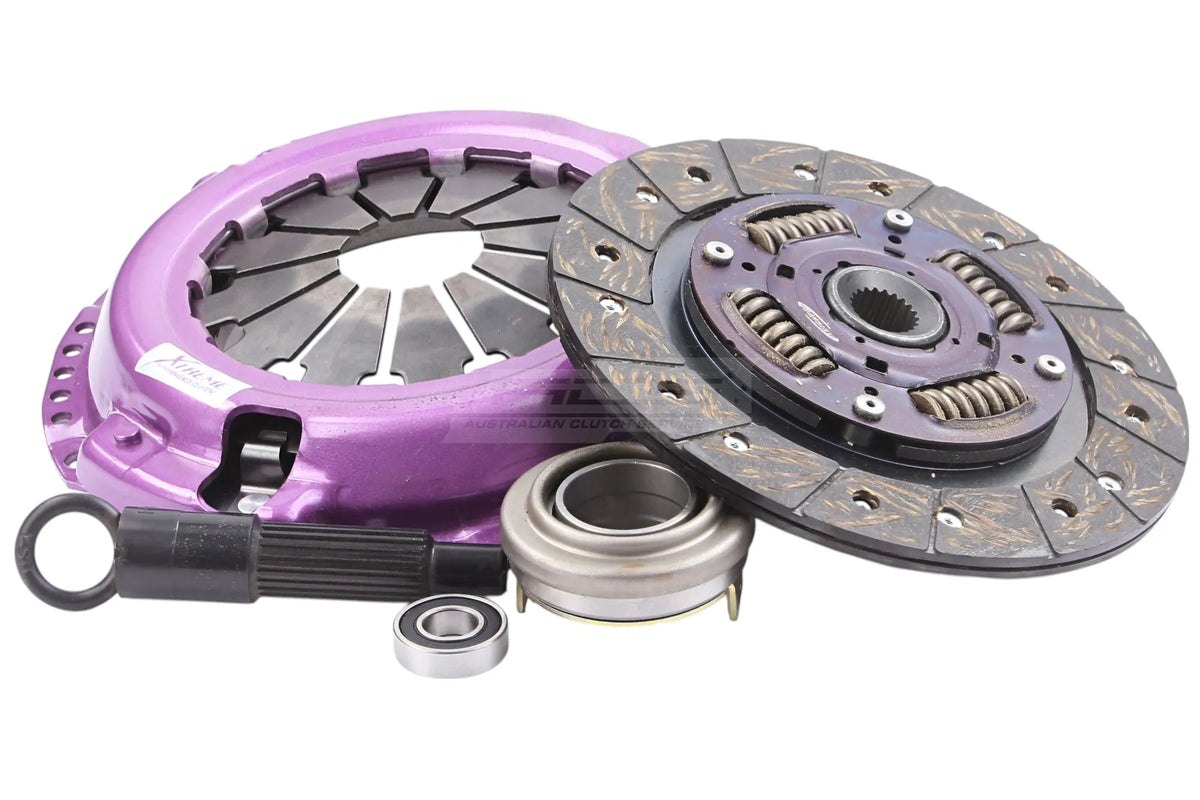

PURCHASED PARTS PACKAGE Pressure plate, friction disc and fitting components shown in the supplier photograph. Flywheel not included.
INSTALLATION AND USE Check the flywheel condition, profile and release arrangement before installation. Follow the supplied fitting and bedding-in instructions. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components.
