Xtreme Clutch 184mm Sprung Ceramic Twin Plate Clutch Kit Honda Civic Type R EP3 with Flywheel KHN18523-2B

Xtreme Clutch 184 mm sprung ceramic twin-plate clutch kit with a matching single-mass flywheel for the listed Honda Civic Type R EP3 2.0 manual application. Designed for motorsport use.

FITMENT
Honda Civic Type R (EP3), September 2001–September 2005; K20A2, 1998 cc petrol, 147 kW.
For the matching manual transmission. Check the engine, gearbox input spline, flywheel and release arrangement before ordering.

SPECIFICATIONS
Part number: KHN18523-2B
Construction: twin plate
Friction material: ceramic
Hub: sprung central hub
Disc diameter: 184 mm
Input spline: 24 teeth, 26 mm diameter
Flywheel step: +2.5 mm
Flywheel: single mass
Recommended use: motorsport

PURCHASED PARTS PACKAGE

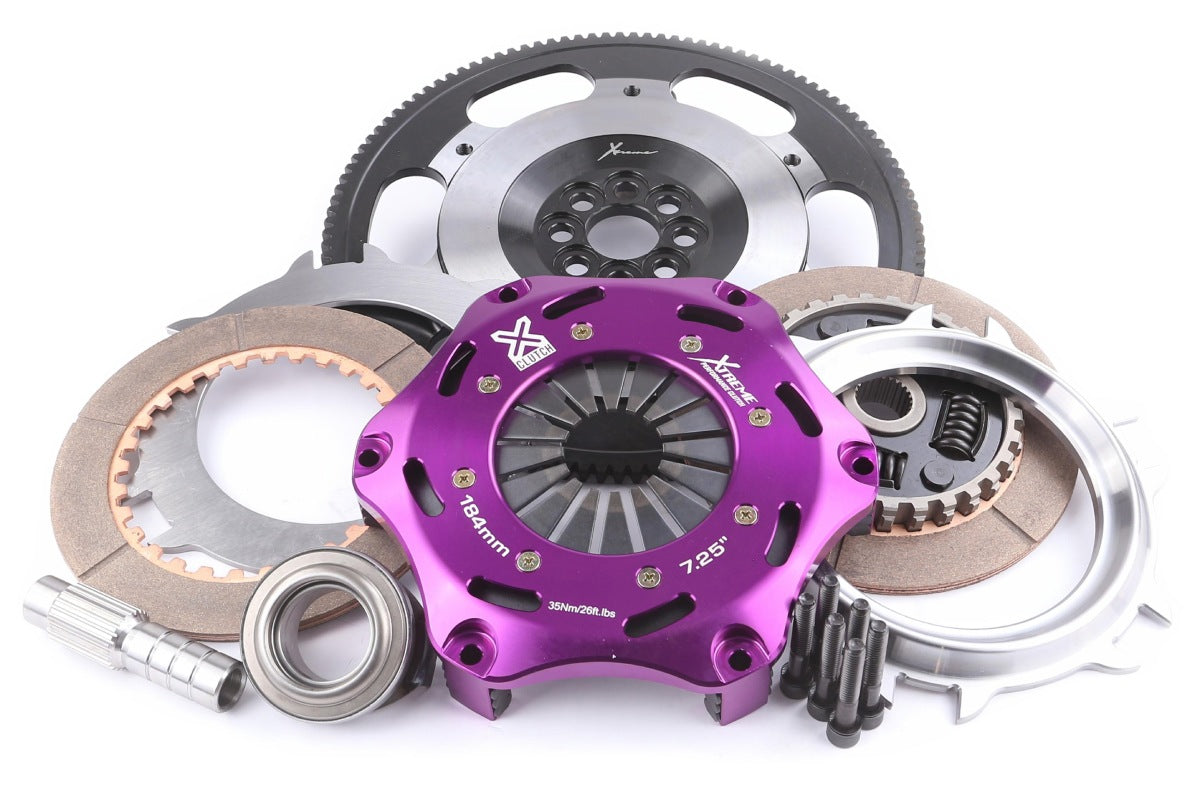

Billet alloy clutch cover, twin ceramic friction assembly with a sprung central hub, intermediate plate, matching single-mass flywheel, release bearing, bolts, alignment tool and fitting ring shown in the exact kit photograph.

INSTALLATION AND USE
Follow the supplied vehicle-specific fitting instructions and the Xtreme multi-plate installation bulletin. Check friction-disc orientation, release travel and clearance before operation. Ceramic friction material can engage more abruptly than an original organic clutch. The sprung hub reduces shock loading but does not eliminate drivetrain vibration or noise. A single-mass flywheel can transmit more gearbox rattle.
