Xtreme Clutch Stage 2 Sprung Ceramic Clutch Kit Hyundai i20 N 1.6 T-GDi with Flywheel KHD24526-1B
1 620 €
1 398 €
/ per
Tax included.
Not in stock, available to order
Product description
Xtreme Clutch Stage 2 sprung ceramic clutch kit for the listed Hyundai i20 N 1.6 T-GDi application. Intended for motorsport applications requiring increased torque and heat capacity.
FITMENT Hyundai i20 1.6 T-Gdi N, from 2020; engine G4FP, G4FV 1598 cc, 204 BHP (supplier figure) Manual-transmission application only.
SPECIFICATIONS Part number: KHD24526-1B Stage: 2 Construction: single plate Friction disc: sprung ceramic Disc diameter: 240 mm Input spline: 20 teeth, 22.2 mm diameter Supplier-rated torque capacity: 660 Nm Flywheel step: -9.5 mm Included flywheel: single-mass conversion

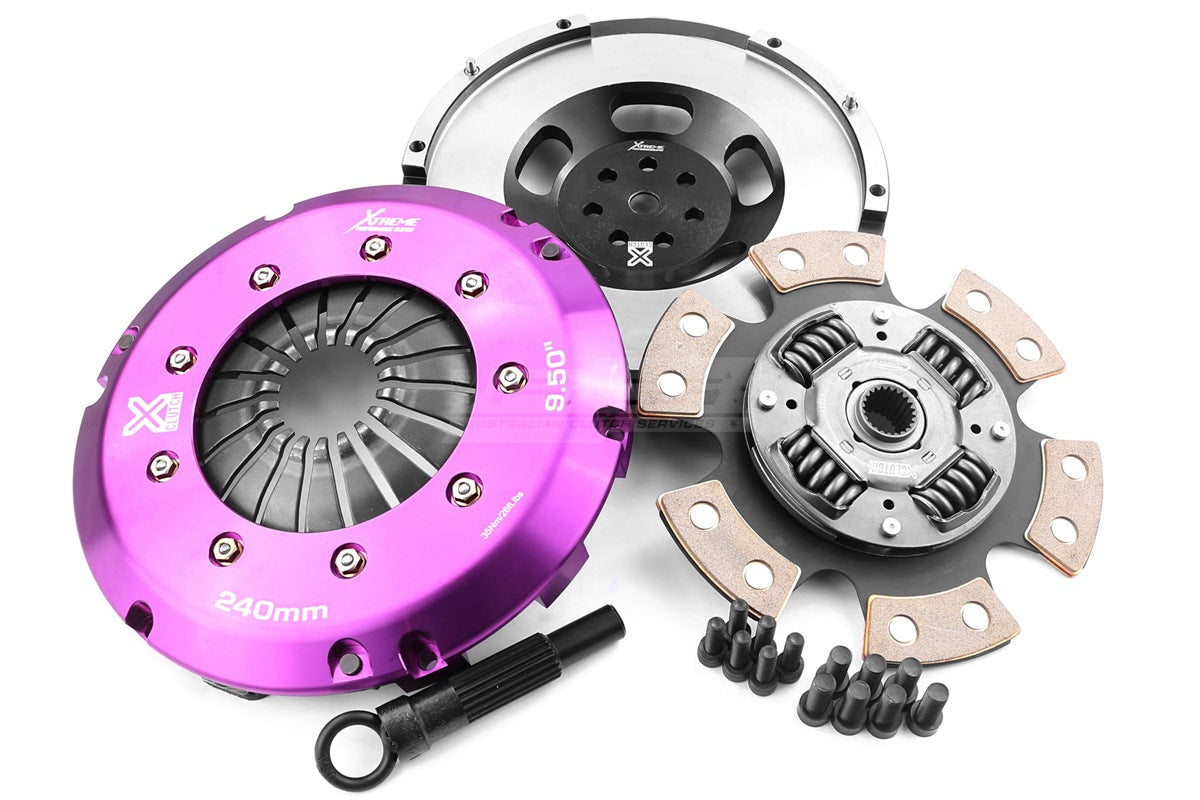

PURCHASED PARTS PACKAGE Heavy-duty pressure plate and sprung ceramic friction disc, matching single-mass conversion flywheel and the fitting components shown in the supplier photograph.
INSTALLATION AND USE Match the engine code, gearbox input spline, flywheel and release system before ordering. Follow the supplied installation and bedding-in instructions. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components. Single-mass conversion can increase transmitted engine harmonics or gearbox rattle. Follow TSB-SMF02: single-mass conversion noise and TSB-226: 240 mm clutch installation.
