Xtreme Clutch 184mm Sprung Ceramic Twin Plate Clutch Kit Hyundai i30 N 2.0 Turbo with Flywheel and CSC KHD18631-2B
2 190 €
/ per
Tax included.
Not in stock, available to order
Product description
Xtreme Clutch 184 mm sprung ceramic twin-plate clutch kit for the listed Hyundai i30 N 2.0 Turbo manual applications. Includes a matching flywheel and concentric slave cylinder (CSC).
FITMENT Hyundai i30 N 2.0 turbo, from July 2017; G4KH, 1998 cc petrol, 202 kW. Hyundai i30 N 2.0 turbo, from March 2021; G4KH, 1998 cc petrol, 206 kW. Manual-transmission application only. Not for DCT models.
SPECIFICATIONS Part number: KHD18631-2B Construction: twin plate Friction discs: sprung ceramic Disc diameter: 184 mm Input spline: 23 teeth, 26 mm diameter Supplier-rated torque capacity: 1220 Nm Flywheel step: +2.5 mm Recommended use: motorsport

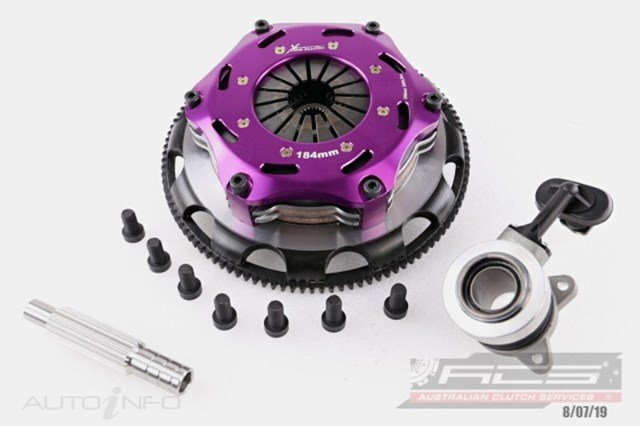

PURCHASED PARTS PACKAGE Twin-plate clutch assembly with two sprung ceramic friction discs, matching flywheel, concentric slave cylinder (CSC), bolts, alignment tool and the fitting components shown in the supplier photograph.
INSTALLATION AND USE Match the engine code, gearbox input spline, flywheel and release system before ordering. Follow the supplied installation and bedding-in instructions. The supplier torque rating does not establish a safe limit for other drivetrain components. This motorsport clutch can engage more abruptly than an original road clutch. Fit the supplied clutch, flywheel and release components as a matched assembly. Follow TSB-167: CSC mounting and handling.
