Xtreme Clutch Stage 1 Organic Clutch Kit Holden H Series (EH / HD / HG / HK / HR / HT) KGM22008-1A

Xtreme Clutch Stage 1 single-plate organic clutch kit for the listed Holden H Series applications. Designed for street-performance use. Match the gearbox input spline and flywheel specification before ordering.

FITMENT
Holden H Series (EH) August 1963–January 1965 — 2.5, GMH 149 (Red) 2447 cc, 71 kW.
Holden H Series (EH) August 1963–January 1965 — 2.5, GMH 149 (Red) 2447 cc, 75 kW.
Holden H Series (EH) August 1963–January 1965 — 2.9, GMH 179 (Red) 2941 cc, 86 kW.
Holden H Series (EH) September 1964–January 1965 — 2.9, GMH 179 (Red) 2941 cc, 90 kW.
Holden H Series (HD) July 1965–March 1966 — 2.5, GMH 149 (Red) 2447 cc, 71 kW.
Holden H Series (HD) July 1965–March 1966 — 2.5, GMH 149 (Red) 2447 cc, 75 kW.
Holden H Series (HD) July 1965–April 1966 — 2.9, GMH 179 (Red) 2941 cc, 104 kW.
Holden H Series (HD) July 1965–April 1966 — 2.9, GMH 179 (Red) 2941 cc, 86 kW.
Holden H Series (HG) July 1970–July 1971 — 2.6, GMH 161 (Red) 2640 cc, 81 kW.
Holden H Series (HG) July 1970–July 1971 — 2.6, GMH 161 (Red) 2640 cc, 85 kW.
Holden H Series (HG) July 1970–July 1971 — 3.0, GMH 186 (Red) 3048 cc, 108 kW.
Holden H Series (HG) July 1970–July 1971 — 3.0, GMH 186 (Red) 3048 cc, 92 kW.
Holden H Series (HG) July 1970–July 1971 — 3.0, GMH 186 (Red) 3048 cc, 97 kW.
Holden H Series (HK) January 1968–May 1969 — 2.6, GMH 161 (Red) 2640 cc, 81 kW.
Holden H Series (HK) January 1968–May 1969 — 2.6, GMH 161 (Red) 2640 cc, 85 kW.
Holden H Series (HK) January 1968–May 1969 — 3.0, GMH 186 (Red) 3048 cc, 108 kW.
Holden H Series (HK) January 1968–May 1969 — 3.0, GMH 186 (Red) 3048 cc, 94 kW.
Holden H Series (HR) April 1966–January 1968 — 2.6, GMH 161 (Red) 2640 cc, 81 kW.
Holden H Series (HR) April 1966–January 1968 — 2.6, GMH 161 (Red) 2640 cc, 85 kW.
Holden H Series (HR) April 1966–January 1968 — 3.0, GMH 186 (Red) 3048 cc, 108 kW.
Holden H Series (HR) April 1966–January 1968 — 3.0, GMH 186 (Red) 3048 cc, 94 kW.
Holden H Series (HT) May 1969–July 1970 — 2.6, 161 2640 cc, 81 kW.
Holden H Series (HT) May 1969–July 1970 — 2.6, GMH 161 (Red) 2640 cc, 81 kW.
Holden H Series (HT) May 1969–July 1970 — 2.6, GMH 161 (Red) 2640 cc, 85 kW.
Holden H Series (HT) May 1969–July 1970 — 3.0, GMH 186 (Red) 3048 cc, 108 kW.
Holden H Series (HT) May 1969–July 1970 — 3.0, GMH 186 (Red) 3048 cc, 92 kW.
Holden H Series (HT) May 1969–July 1970 — 3.0, GMH 186 (Red) 3048 cc, 97 kW.
Manual-transmission applications only. Confirm the engine, gearbox and release arrangement; the vehicle series alone does not establish compatibility.

SPECIFICATIONS
Part number: KGM22008-1A
Stage: 1
Construction: single plate
Friction material: organic
Disc diameter: 215 mm
Input spline: 10 teeth, 22.2 mm diameter
Flywheel step: 0 mm
Supplier-rated torque capacity: 320 Nm

PURCHASED PARTS PACKAGE

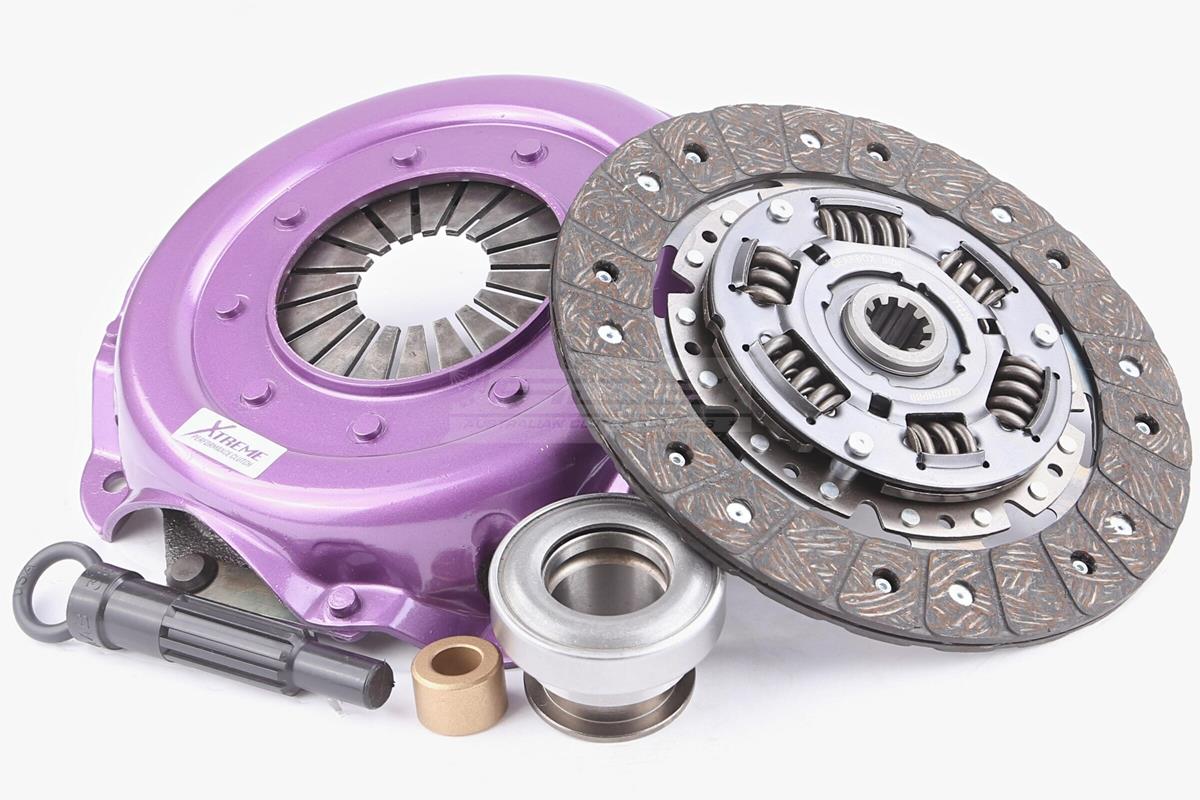

Pressure plate, friction disc and fitting components shown in the supplier photograph. Flywheel is not included.

INSTALLATION AND USE
Check the flywheel condition and profile, gearbox spline and release arrangement before installation. Follow the supplied fitting and bedding-in instructions. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components.
