Xtreme Clutch Stage 1 Organic Clutch Kit Holden H Series (HG / HJ / HK / HQ / HT / HX / HZ) KGM22001-1A

Xtreme Clutch Stage 1 single-plate organic clutch kit for the listed Holden H Series applications. Designed for street-performance use. Match the gearbox input spline and flywheel specification before ordering.

FITMENT
Holden H Series (HG) July 1970–July 1971 — 2.6, GMH 161 (Red) 2640 cc, 81 kW.
Holden H Series (HG) July 1970–July 1971 — 2.6, GMH 161 (Red) 2640 cc, 85 kW.
Holden H Series (HG) July 1970–July 1971 — 3.0, GMH 186 (Red) 3048 cc, 108 kW.
Holden H Series (HG) July 1970–July 1971 — 3.0, GMH 186 (Red) 3048 cc, 92 kW.
Holden H Series (HG) July 1970–July 1971 — 3.0, GMH 186 (Red) 3048 cc, 97 kW.
Holden H Series (HG) July 1970–November 1971 — 3.3, GMH 202 (Red) 3298 cc, 101 kW.
Holden H Series (HG) July 1970–November 1971 — 3.3, GMH 202 (Red) 3298 cc, 96 kW.
Holden H Series (HJ) October 1974–July 1976 — 2.8, GMH 173 (Red) 2838 cc, 88 kW.
Holden H Series (HJ) October 1974–July 1976 — 3.3, 33LFP 3298 cc, 96 kW.
Holden H Series (HJ) October 1974–July 1976 — 3.3, GMH 202 (Red) 3298 cc, 108 kW.
Holden H Series (HJ) October 1974–July 1976 — 3.3, GMH 202 (Red) 3298 cc, 96 kW.
Holden H Series (HK) January 1968–May 1969 — 2.6, GMH 161 (Red) 2640 cc, 81 kW.
Holden H Series (HK) January 1968–May 1969 — 2.6, GMH 161 (Red) 2640 cc, 85 kW.
Holden H Series (HK) January 1968–May 1969 — 3.0, GMH 186 (Red) 3048 cc, 108 kW.
Holden H Series (HK) January 1968–May 1969 — 3.0, GMH 186 (Red) 3048 cc, 94 kW.
Holden H Series (HQ) August 1971–October 1974 — 3.3, GMH 202 (Red) 3298 cc, 101 kW.
Holden H Series (HQ) August 1971–October 1974 — 3.3, GMH 202 (Red) 3298 cc, 96 kW.
Holden H Series (HT) May 1969–July 1970 — 2.6, 161 2640 cc, 81 kW.
Holden H Series (HT) May 1969–July 1970 — 2.6, GMH 161 (Red) 2640 cc, 81 kW.
Holden H Series (HT) May 1969–July 1970 — 2.6, GMH 161 (Red) 2640 cc, 85 kW.
Holden H Series (HT) May 1969–July 1970 — 3.0, GMH 186 (Red) 3048 cc, 108 kW.
Holden H Series (HT) May 1969–July 1970 — 3.0, GMH 186 (Red) 3048 cc, 92 kW.
Holden H Series (HT) May 1969–July 1970 — 3.0, GMH 186 (Red) 3048 cc, 97 kW.
Holden H Series (HX) July 1976–September 1977 — 3.3, 33LF 3298 cc, 76 kW.
Holden H Series (HX) July 1976–September 1977 — 3.3, GMH 202 (Red) 3298 cc, 76 kW.
Holden H Series (HX) March 1976–September 1977 — 3.3, GMH 202 (Red) 3298 cc, 81 kW.
Holden H Series (HZ) October 1977–April 1980 — 3.3, 33LF 3298 cc, 76 kW.
Holden H Series (HZ) October 1977–April 1980 — 3.3, GMH 202 (Red) 3298 cc, 76 kW.
Holden H Series (HZ) October 1977–April 1980 — 3.3, GMH 202 (Red) 3298 cc, 81 kW.
Holden H Series (HZ) October 1977–April 1980 — 3.3, GMH 202 (Red) 3298 cc, 88 kW.
Manual-transmission applications only. Confirm the engine, gearbox and release arrangement; the vehicle series alone does not establish compatibility.

SPECIFICATIONS
Part number: KGM22001-1A
Stage: 1
Construction: single plate
Friction material: organic
Disc diameter: 220 mm
Input spline: 10 teeth, 28.6 mm diameter
Flywheel step: 0 mm
Supplier-rated torque capacity: 320 Nm

PURCHASED PARTS PACKAGE

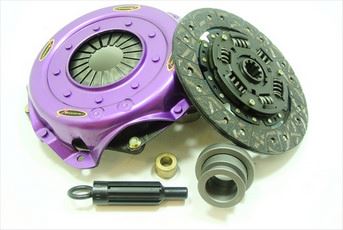

Pressure plate, friction disc and fitting components shown in the supplier photograph. Flywheel is not included.

INSTALLATION AND USE
Check the flywheel condition and profile, gearbox spline and release arrangement before installation. Follow the supplied fitting and bedding-in instructions. The supplier torque rating does not establish a safe limit for the gearbox or other drivetrain components.
