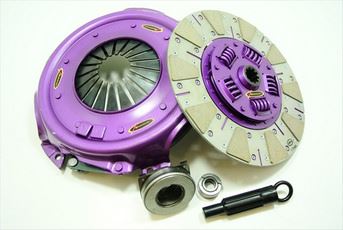

Xtreme Outback 280mm Cushioned Ceramic Clutch Kit Ford F-100 4.9 KFD28002-1C

Xtreme Outback 280 mm cushioned ceramic clutch kit for the listed Ford F-100 4.9 manual applications.

FITMENT
Ford F-100 4.9, September 1985–December 1986; 4942 cc petrol, 126 kW.
Ford F-100 4.9, September 1974–September 1979; engine code N, 4942 cc petrol, 149 kW.
Ford F-100 4.9 4WD, September 1985–December 1986; 4942 cc petrol, 126 kW.
Ford F-100 4.9 4WD, September 1974–September 1979; 4942 cc petrol, 149 kW.
For manual gearboxes only. Match the exact engine, gearbox input spline, pressure-plate bolt pattern and flywheel. A shared 4.9-litre badge does not establish fitment; do not substitute a different engine version or gearbox.

SPECIFICATIONS
Part number: KFD28002-1C
Construction: single plate
Friction disc: cushioned ceramic
Disc diameter: 280 mm
Input spline: 10 teeth, 27 mm diameter
Supplier-rated torque capacity: 930 Nm
Supplier-rated clamp load: 1200 kg, 30% increase
Flywheel step: flat (0 mm)
Recommended use: track

PURCHASED PARTS PACKAGE
Heavy-duty pressure plate, cushioned ceramic friction disc, release bearing, pilot bearing and alignment tool. Flywheel is not included.

INSTALLATION AND USE
Follow the supplied fitting instructions and manufacturer bedding-in guidance. Inspect the existing flywheel and release linkage before fitting. Retain the correct flywheel balance for the exact engine. Ceramic friction material can engage more abruptly than an original road clutch. The supplier torque rating does not establish a safe limit for other drivetrain components or increase the vehicle towing limit.
