Xtreme Clutch 270mm Sprung Organic Twin Plate Clutch Kit Ford Mustang 5.0 with Flywheel and CSC KFD27655-2A

Xtreme Clutch 270 mm sprung organic twin-plate clutch kit with matching flywheel and concentric slave cylinder (CSC) for the listed Ford Mustang 5.0 manual applications.

FITMENT
Ford Mustang 5.0, 2010–2015; 4951 cc petrol.
Ford Mustang 5.0 GT, 2015–2018; MF8F, 4951 cc petrol, 306 kW.
Manual transmission only. Match the listed 4951 cc engine, gearbox input spline and release system. Do not assume compatibility with the later 5038 cc engine, Bullitt, Shelby or automatic variants.

SPECIFICATIONS
Part number: KFD27655-2A
Construction: twin plate
Friction discs: sprung organic
Disc diameter: 270 mm
Input spline: 23 teeth, 26 mm diameter
Supplier-rated torque capacity: 1000 Nm
Flywheel step: flat, 0 mm
Recommended use: high-power street vehicles

PURCHASED PARTS PACKAGE

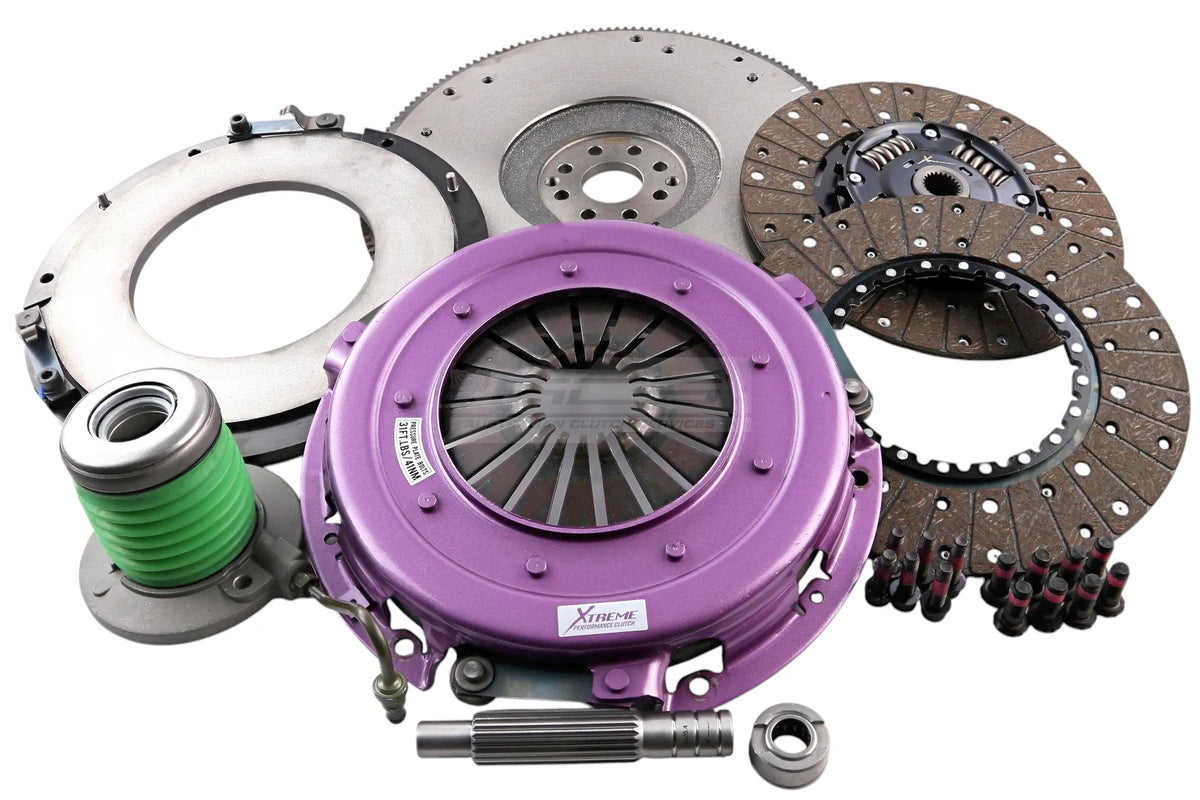

Twin-plate clutch assembly with sprung organic friction discs, intermediate plate and pressure-plate assembly, matching flywheel, concentric slave cylinder (CSC), pilot bearing, bolts, alignment tool and the fitting components shown in the supplier photograph.

INSTALLATION AND USE
Fit the supplied clutch, flywheel and release components as a matched assembly. Keep the factory index marks aligned and follow the supplied disc-orientation instructions and TSB-206: twin-plate assembly. Follow TSB-167: CSC mounting and handling and TSB-233: bleeding a CSC without a bleeder port as applicable to the supplied release unit. Follow the supplied bedding-in instructions. The supplier torque rating does not establish a safe limit for other drivetrain components.
